Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

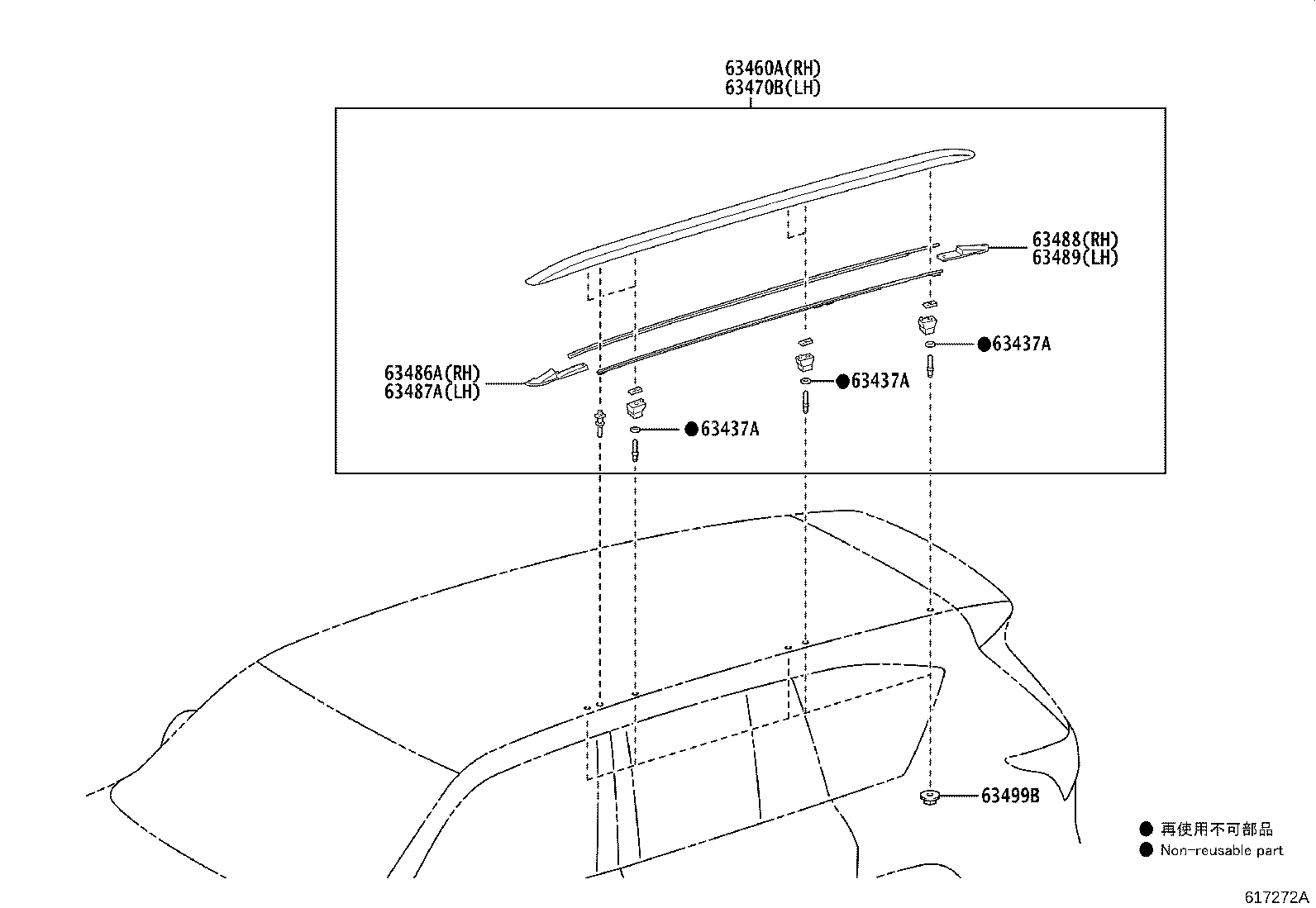

Exploded illustration 617272A 63460A — RACK ASSY, ROOF, RH (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (1 parts) 63486A — CUSHION, ROOF RACK LEG, FRONT RH (1 parts) 63488 — CUSHION, ROOF RACK LEG, REAR RH (1 parts) 63470B — RACK ASSY, ROOF, LH (2 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (1 parts) 63437A — SEAL, ROOF CARRIER, NO.2 (1 parts) 63487A — CUSHION, ROOF RACK LEG, FRONT LH (1 parts) 63489 — CUSHION, ROOF RACK LEG, REAR LH (1 parts) 63499B — NUT, ROOF CARRIER (1 parts)
617272A · 10 callouts Full size ↗
10 parts on this figure
Part number Description Fitment Price
63437A — Seal, Roof Carrier, NO.2
63437-60060 Seal, Roof Carrier, NO.2
2021-12 → 2024-11 ended
VJA310 ¥80
63460A — Rack Assy, Roof, RH
63460-60251 Rack Assy, Roof, RH
2021-12 → 2024-11 ended
VJA310 ¥46,900
63460-60261 note Rack Assy, Roof, RH
2021-12 → 2024-11 ended
VJA310 ¥32,800
63470B — Rack Assy, Roof, LH
63470-60141 Rack Assy, Roof, LH
2021-12 → 2024-11 ended
VJA310 ¥46,900
63470-60151 note Rack Assy, Roof, LH
2021-12 → 2024-11 ended
VJA310 ¥32,800
63486A — Cushion, Roof Rack Leg, Front RH
63486-60200 Cushion, Roof Rack Leg, Front RH
2021-12 → 2024-11 ended
VJA310 ¥790
63487A — Cushion, Roof Rack Leg, Front LH
63487-60180 Cushion, Roof Rack Leg, Front LH
2021-12 → 2024-11 ended
VJA310 ¥790
63488 — Cushion, Roof Rack Leg, Rear RH
63488-60170 Cushion, Roof Rack Leg, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥790
63489 — Cushion, Roof Rack Leg, Rear LH
63489-60160 Cushion, Roof Rack Leg, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥790
63499B — Nut, Roof Carrier
63499-78010 Nut, Roof Carrier
2021-12 → 2024-11 ended
VJA310 ¥200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
