Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

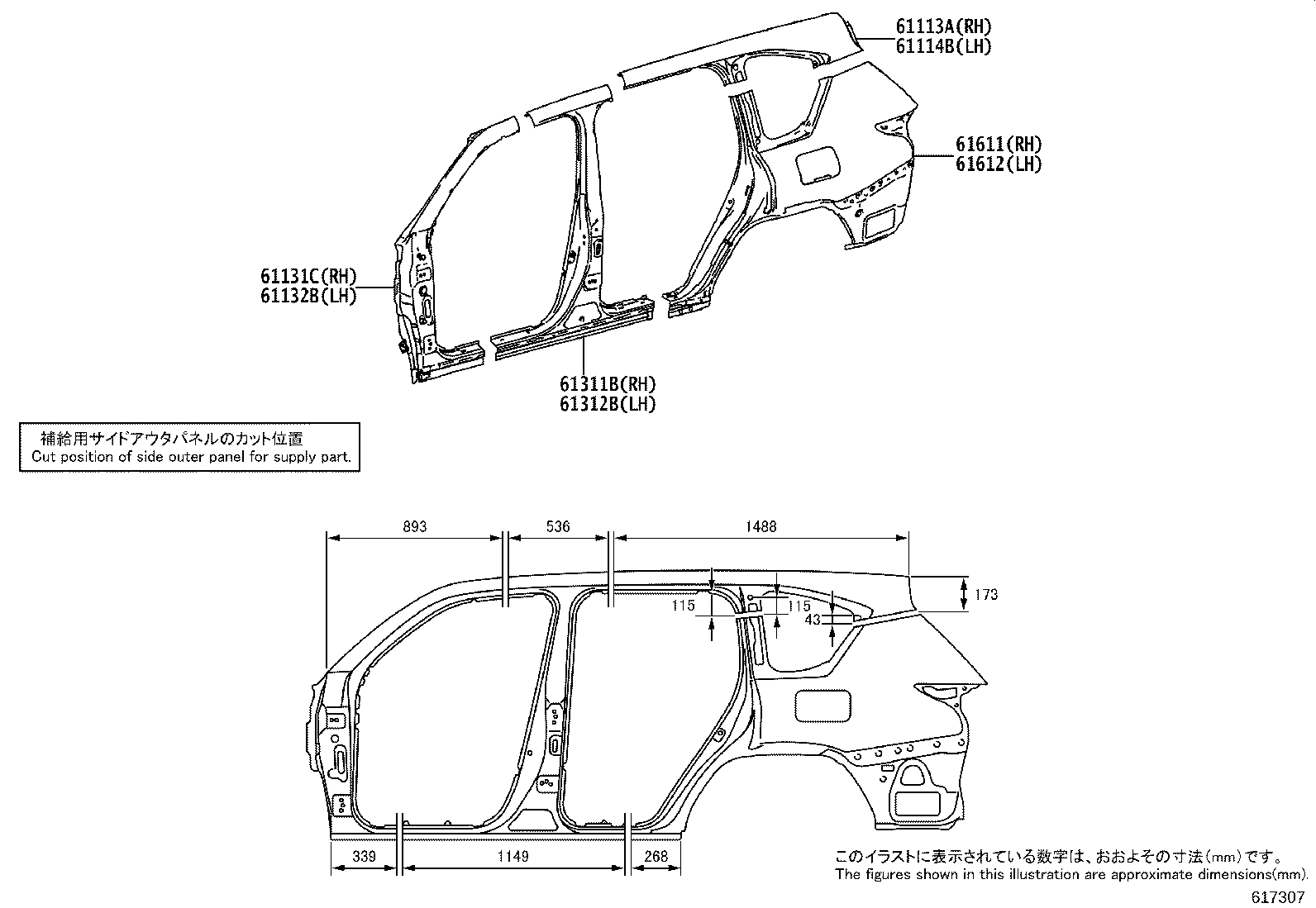

Exploded illustration 617307 61131C — PILLAR, FRONT BODY, OUTER RH (1 parts) 61132B — PILLAR, FRONT BODY, OUTER LH (1 parts) 61311B — PILLAR, CENTER BODY, OUTER RH (1 parts) 61312B — PILLAR, CENTER BODY, OUTER LH (1 parts) 61113A — PANEL, SIDE, OUTER NO.2 RH (1 parts) 61114B — PANEL, SIDE, OUTER NO.2 LH (1 parts) 61611 — PANEL, QUARTER, RH (1 parts) 61612 — PANEL, QUARTER, LH (1 parts)
617307 · 8 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
61113A — Panel, Side, Outer NO.2 RH
61113-60080 Panel, Side, Outer NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥15,800
61114B — Panel, Side, Outer NO.2 LH
61114-60060 Panel, Side, Outer NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥15,800
61131C — Pillar, Front Body, Outer RH
61131-60360 Pillar, Front Body, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥17,700
61132B — Pillar, Front Body, Outer LH
61132-60310 Pillar, Front Body, Outer LH
2021-12 → 2024-11 ended
VJA310 ¥17,700
61311B — Pillar, Center Body, Outer RH
61311-60200 Pillar, Center Body, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥18,700
61312B — Pillar, Center Body, Outer LH
61312-60260 Pillar, Center Body, Outer LH
2021-12 → 2024-11 ended
VJA310 ¥18,700
61611 — Panel, Quarter, RH
61611-60C00 Panel, Quarter, RH
2021-12 → 2024-11 ended
VJA310 ¥67,100
61612 — Panel, Quarter, LH
61612-60B80 Panel, Quarter, LH
2021-12 → 2024-11 ended
VJA310 ¥67,100
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
