Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

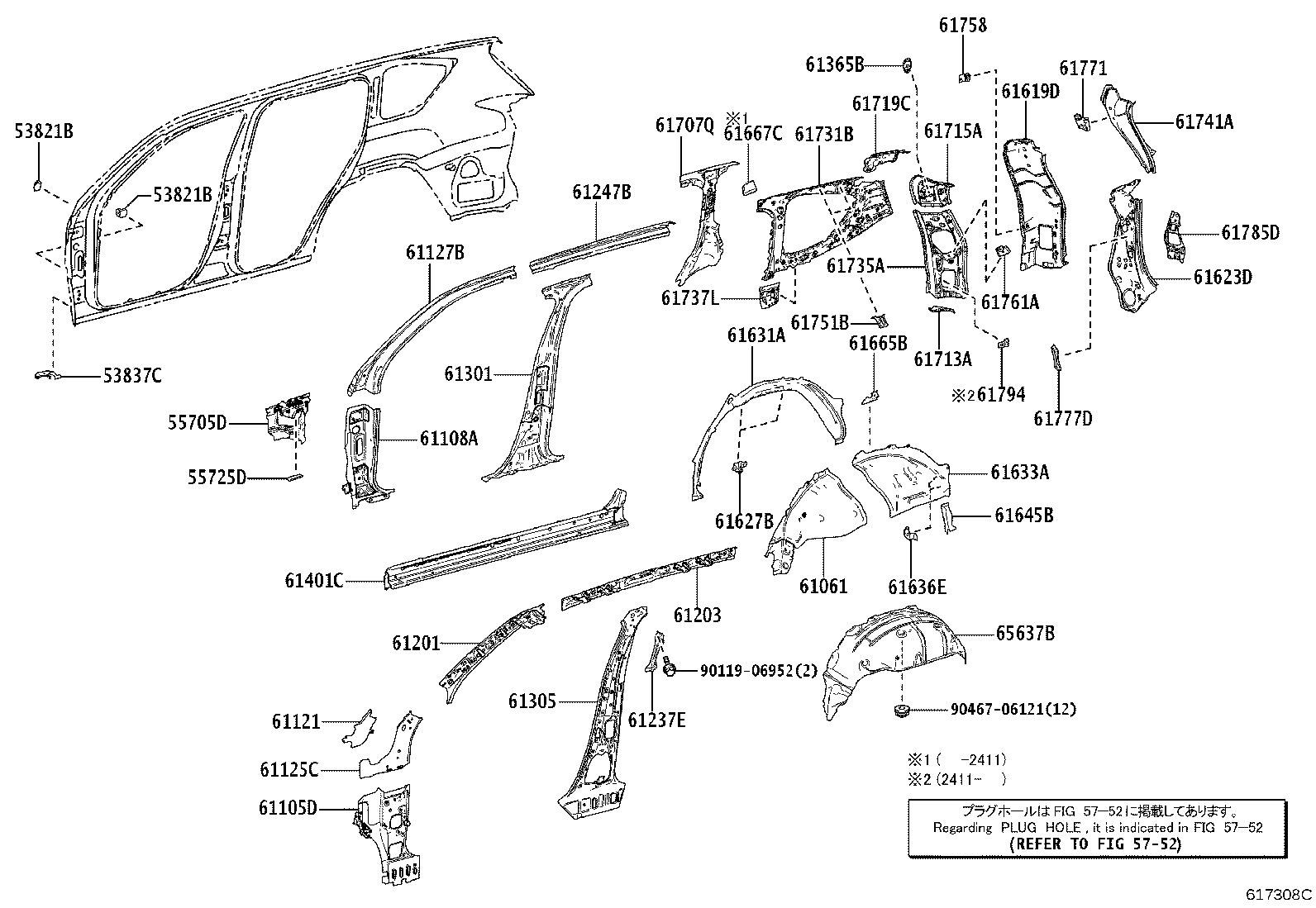

Exploded illustration 617308C 5752 — not listed in this catalogue 9046706121 — not listed in this catalogue 9011906952 — not listed in this catalogue 61125C — REINFORCEMENT, COWL SIDE PANEL, RH (1 parts) 61301 — PILLAR SUB-ASSY, CENTER BODY, RH (1 parts) 61401C — PANEL SUB-ASSY, ROCKER, OUTER RH (1 parts) 61105D — PANEL SUB-ASSY, SIDE, NO.3 RH (1 parts) 61623D — EXTENSION, QUARTER PANEL, FRONT RH (1 parts) 61785D — EXTENSION, BACK DOOR OPENING SIDE, RH (1 parts) 61735A — PANEL, ROOF SIDE, INNER REAR RH (1 parts) 61713A — EXTENSION, ROOF SIDE, OUTER RH (1 parts) 61619D — REINFORCEMENT, QUARTER PANEL, RH (1 parts) 61758 — RETAINER, BACK DOOR STOPPER, LOWER (1 parts) 61707Q — PLATE SUB-ASSY, QUARTER WINDOW LOCK GUSSET, RH (1 parts) 61731B — PANEL, ROOF SIDE, INNER RH (1 parts) 61751B — RETAINER, QUARTER TRIM, UPPER (1 parts) 61737L — REINFORCEMENT, ROOF SIDE, INNER RH (1 parts) 61719C — BRACKET, ROOF SIDE RAIL, RH (1 parts) 61201 — RAIL SUB-ASSY, ROOF SIDE, RH (1 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (1 parts) 61627B — EXTENSION, QUARTER PANEL, UPPER REAR RH (1 parts) 61665B — REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH (1 parts) 61631A — PANEL, QUARTER WHEEL HOUSE, OUTER RH (1 parts) 61061 — REINFORCEMENT SUB-ASSY, WHEEL HOUSE, RH (1 parts) 65637B — LINER, REAR WHEEL HOUSE, RH (1 parts) 61645B — GUSSET, QUARTER WHEEL HOUSE, REAR RH (1 parts) 61636E — EXTENSION, QUARTER WHEEL HOUSE, LH (1 parts) 61633A — PANEL, QUARTER WHEEL HOUSE, INNER RH (1 parts) 61305 — REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH (1 parts) 61777D — RETAINER, BACK DOOR SIDE STOPPER, RH (1 parts) 61794 — not listed in this catalogue 61771 — PATCH, BACK DOOR OPENING, UPPER RH (1 parts) 61237E — BRACKET, ASSIST GRIP, NO.1 (1 parts) 61247B — REINFORCEMENT, ROOF SIDE RAIL, INNER RH (1 parts) 61108A — REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH (1 parts) 53837C — BRACKET, FRONT SIDE PANEL, NO.2 RH (1 parts) 53821B — BRACKET, FRONT FENDER, REAR RH (1 parts) 53821B — BRACKET, FRONT FENDER, REAR RH (1 parts) 61127B — REINFORCEMENT, COWL SIDE PANEL, NO.2 RH (1 parts) 55705D — PANEL SUB-ASSY, COWL TOP SIDE, RH, (1 parts) 55725D — REINFORCEMENT, HOOD HINGE MOUNTING, RH (1 parts) 61741A — REINFORCEMENT, BACK DOOR OPENING, UPPER RH (1 parts) 61715A — EXTENSION, ROOF SIDE, INNER UPPER RH (1 parts) 61365B — REINFORCE, BELT ANCHOR TO CENTER PILLAR, NO.3 RH (1 parts) 61761A — REINFORCE, SEAT BELT ANCHOR, NO.1 UPPER RH (1 parts) 61121 — PANEL, COWL SIDE, OUTER RH (1 parts) 61667C — SEAL, QAURTER PANEL, NO.1 (1 parts)
617308C · 43 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
53821B — Bracket, Front Fender, Rear RH
53821-42030 Bracket, Front Fender, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥350
53837C — Bracket, Front Side Panel, NO.2 RH
53837-60040 Bracket, Front Side Panel, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥780
55705D — Panel Sub-assy, Cowl Top Side, RH,
55705-60040 Panel Sub-assy, Cowl Top Side, RH,
2021-12 → 2024-11 ended
VJA310 ¥4,110
55725D — Reinforcement, Hood Hinge Mounting, RH
55725-60050 Reinforcement, Hood Hinge Mounting, RH
2021-12 → 2024-11 ended
VJA310 ¥510
61061 — Reinforcement Sub-assy, Wheel House, RH
61061-60130 Reinforcement Sub-assy, Wheel House, RH
2021-12 → 2024-11 ended
VJA310 ¥7,200
61105D — Panel Sub-assy, Side, NO.3 RH
61105-60010 Panel Sub-assy, Side, NO.3 RH
2021-12 → 2024-11 ended
VJA310 ¥4,620
61108A — Reinforce Sub-assy, Front Body Pillar, Lower RH
61108-60120 Reinforce Sub-assy, Front Body Pillar, Lower RH
2021-12 → 2024-11 ended
VJA310 ¥7,200
61121 — Panel, Cowl Side, Outer RH
55743-60040 Panel, Cowl Side, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥270
61125C — Reinforcement, Cowl Side Panel, RH
55791-60020 Reinforcement, Cowl Side Panel, RH
2021-12 → 2024-11 ended
VJA310 ¥2,520
61127B — Reinforcement, Cowl Side Panel, NO.2 RH
61127-60040 Reinforcement, Cowl Side Panel, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥7,100
61201 — Rail Sub-assy, Roof Side, RH
61201-60040 Rail Sub-assy, Roof Side, RH
2021-12 → 2024-11 ended
VJA310 ¥5,800
61203 — Rail Sub-assy, Roof Side, Inner RH
61203-60050 Rail Sub-assy, Roof Side, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥5,200
61237E — Bracket, Assist Grip, NO.1
61237-60080 Bracket, Assist Grip, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,490
61247B — Reinforcement, Roof Side Rail, Inner RH
61247-60110 Reinforcement, Roof Side Rail, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥4,910
61301 — Pillar Sub-assy, Center Body, RH
61301-60150 Pillar Sub-assy, Center Body, RH
2021-12 → 2024-11 ended
VJA310 ¥21,600
61305 — Reinforce Sub-assy, Center Body Pillar, Lower RH
61305-60112 Reinforce Sub-assy, Center Body Pillar, Lower RH
2021-12 → 2024-11 ended
VJA310 ¥9,400
61365B — Reinforce, Belt Anchor TO Center Pillar, NO.3 RH
61365-60040 Reinforce, Belt Anchor TO Center Pillar, NO.3 RH
2021-12 → 2024-11 ended
VJA310 ¥450
61401C — Panel Sub-assy, Rocker, Outer RH
61401-60120 Panel Sub-assy, Rocker, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥16,700
61619D — Reinforcement, Quarter Panel, RH
61619-60130 Reinforcement, Quarter Panel, RH
2021-12 → 2024-11 ended
VJA310 ¥7,900
61623D — Extension, Quarter Panel, Front RH
61623-60130 Extension, Quarter Panel, Front RH
2021-12 → 2024-11 ended
VJA310 ¥4,460
61627B — Extension, Quarter Panel, Upper Rear RH
61627-60030 Extension, Quarter Panel, Upper Rear RH
2021-12 → 2024-11 ended
VJA310 ¥340
61631A — Panel, Quarter Wheel House, Outer RH
61631-60150 Panel, Quarter Wheel House, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥8,100
61633A — Panel, Quarter Wheel House, Inner RH
61633-60150 Panel, Quarter Wheel House, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥7,000
61636E — Extension, Quarter Wheel House, LH
61636-60010 Extension, Quarter Wheel House, LH
2021-12 → 2024-11 ended
VJA310 ¥200
61645B — Gusset, Quarter Wheel House, Rear RH
61645-60080 Gusset, Quarter Wheel House, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥1,040
61665B — Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
61665-60160 Reinforce, Seat Belt Anchorage TO Quarter Wheel House, RH
2021-12 → 2024-11 ended
VJA310 ¥470
61667C — Seal, Qaurter Panel, NO.1
61667-60070 Seal, Qaurter Panel, NO.1
2021-12 → 2024-11 ended
VJA310 ¥600
61707Q — Plate Sub-assy, Quarter Window Lock Gusset, RH
61707-60070 Plate Sub-assy, Quarter Window Lock Gusset, RH
2021-12 → 2024-11 ended
VJA310 ¥12,400
61713A — Extension, Roof Side, Outer RH
61713-60040 Extension, Roof Side, Outer RH
2021-12 → 2024-11 ended
VJA310 ¥890
61715A — Extension, Roof Side, Inner Upper RH
61715-60170 Extension, Roof Side, Inner Upper RH
2021-12 → 2024-11 ended
VJA310 ¥4,410
61719C — Bracket, Roof Side Rail, RH
61719-60100 Bracket, Roof Side Rail, RH
2021-12 → 2024-11 ended
VJA310 ¥2,810
61731B — Panel, Roof Side, Inner RH
61731-60430 Panel, Roof Side, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥9,400
61735A — Panel, Roof Side, Inner Rear RH
61735-60130 Panel, Roof Side, Inner Rear RH
2021-12 → 2024-11 ended
VJA310 ¥10,400
61737L — Reinforcement, Roof Side, Inner RH
61737-60070 Reinforcement, Roof Side, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥1,190
61741A — Reinforcement, Back Door Opening, Upper RH
61741-60130 Reinforcement, Back Door Opening, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥3,400
61751B — Retainer, Quarter Trim, Upper
61751-60050 Retainer, Quarter Trim, Upper
2021-12 → 2024-11 ended
VJA310 ¥660
61758 — Retainer, Back Door Stopper, Lower
61758-60010 Retainer, Back Door Stopper, Lower
2021-12 → 2024-11 ended
VJA310 ¥430
61761A — Reinforce, Seat Belt Anchor, NO.1 Upper RH
61761-60040 Reinforce, Seat Belt Anchor, NO.1 Upper RH
2021-12 → 2024-11 ended
VJA310 ¥780
61771 — Patch, Back Door Opening, Upper RH
61771-60070 Patch, Back Door Opening, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥610
61777D — Retainer, Back Door Side Stopper, RH
61777-60040 Retainer, Back Door Side Stopper, RH
2021-12 → 2024-11 ended
VJA310 ¥330
61785D — Extension, Back Door Opening Side, RH
61785-60050 Extension, Back Door Opening Side, RH
2021-12 → 2024-11 ended
VJA310 ¥1,150
65637B — Liner, Rear Wheel House, RH
65637-60010 Liner, Rear Wheel House, RH
2021-12 → 2024-11 ended
VJA310 ¥6,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
