Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

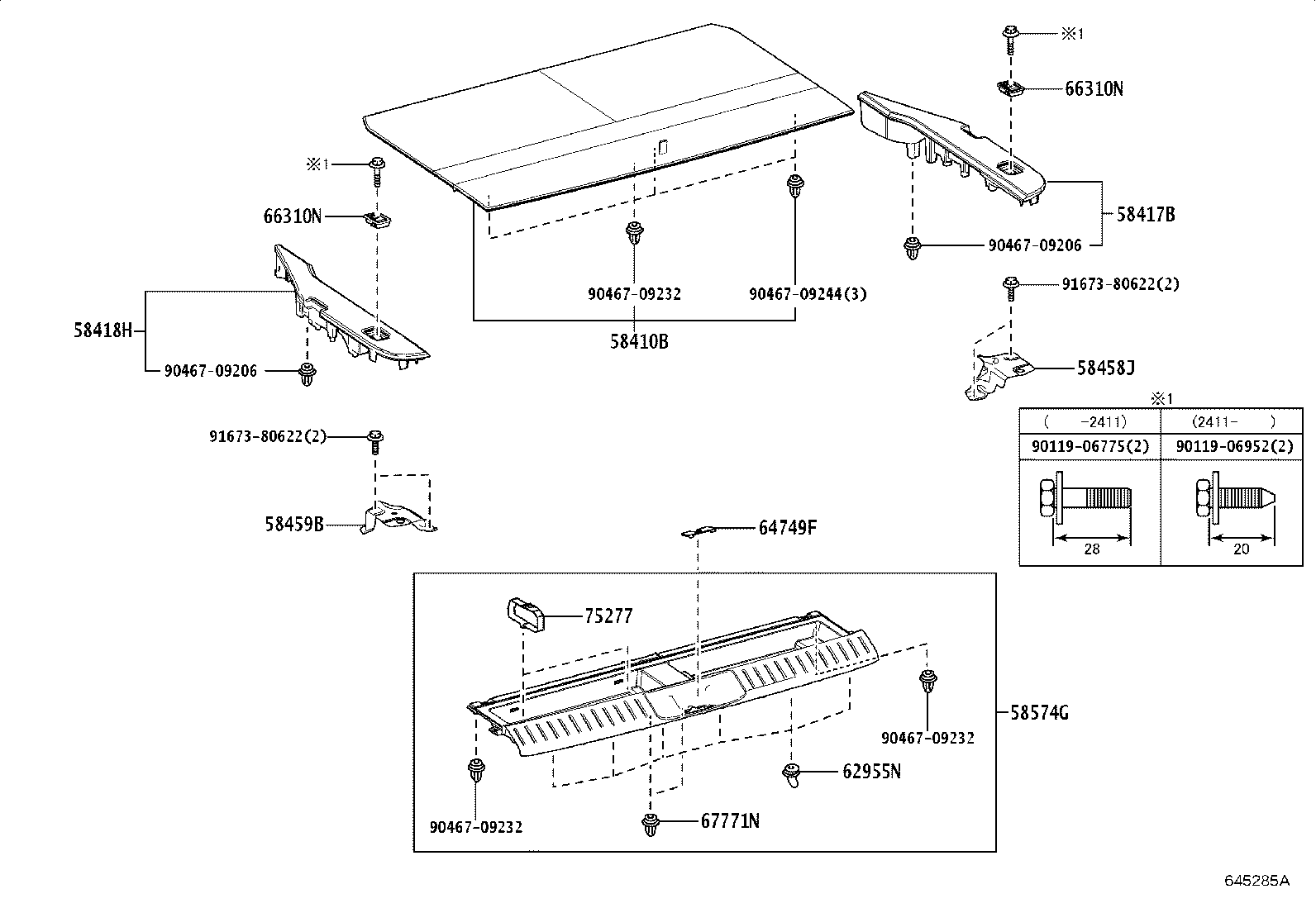

Exploded illustration 645285A 58458J — BRACKET, DECK FLOOR, NO.3 RH (1 parts) 58459B — BRACKET, DECK FLOOR, NO.3 LH (1 parts) 67771N — RETAINER, REAR FLOOR MAT SUPPORT PLATE, NO.2 (1 parts) 9046709232 — not listed in this catalogue 9046709244 — not listed in this catalogue 58410B — BOARD ASSY, DECK (2 parts) 9046709232 — not listed in this catalogue 9046709232 — not listed in this catalogue 58418H — BOARD, REAR FLOOR, REAR LH (2 parts) 66310N — HOOK ASSY, ROPE (2 parts) 9046709206 — not listed in this catalogue 9046709206 — not listed in this catalogue 58417B — BOARD, REAR FLOOR, REAR RH (2 parts) 66310N — HOOK ASSY, ROPE (2 parts) 9167380622 — not listed in this catalogue 9167380622 — not listed in this catalogue 64749F — COVER, BACK DOOR STRIKER (1 parts) 58574G — PLATE, REAR FLOOR MAT SUPPORT, REAR (2 parts) 62955N — RETAINER, REAR FLOOR MAT SUPPORT PLATE, NO.1 (1 parts) 75277 — BAND, TOOL, NO.1 (2 parts) 9011906775 — not listed in this catalogue 9011906952 — not listed in this catalogue
645285A · 12 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
58410B — Board Assy, Deck
58410-60030-C2 note Board Assy, Deck
2021-12 → 2024-11 ended
VJA310 ¥26,000
58410-60040-C2 note Board Assy, Deck
2021-12 → 2024-11 ended
VJA310 ¥18,200
58417B — Board, Rear Floor, Rear RH
58417-60070-C2 note Board, Rear Floor, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥3,210
58417-60080-C2 note Board, Rear Floor, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥5,500
58418H — Board, Rear Floor, Rear LH
58418-60030-C2 note Board, Rear Floor, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥3,210
58418-60040-C2 note Board, Rear Floor, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥5,500
58458J — Bracket, Deck Floor, NO.3 RH
58458-60020 Bracket, Deck Floor, NO.3 RH
2021-12 → 2024-11 ended
VJA310 ¥2,420
58459B — Bracket, Deck Floor, NO.3 LH
58459-60020 Bracket, Deck Floor, NO.3 LH
2021-12 → 2024-11 ended
VJA310 ¥2,420
58574G — Plate, Rear Floor Mat Support, Rear
58574-60150-C0 note Plate, Rear Floor Mat Support, Rear
2021-12 → 2024-11 ended
VJA310 ¥6,100
58574-60160-C0 note Plate, Rear Floor Mat Support, Rear
2021-12 → 2024-11 ended
VJA310 ¥9,100
62955N — Retainer, Rear Floor Mat Support Plate, NO.1
62955-60060 Retainer, Rear Floor Mat Support Plate, NO.1
2021-12 → 2024-11 ended
VJA310 ¥170
64749F — Cover, Back Door Striker
64749-60010-C0 note Cover, Back Door Striker
2021-12 → 2024-11 ended
VJA310 ¥280
66310N — Hook Assy, Rope
66310-30011-C1 note Hook Assy, Rope
2021-12 → 2024-11 ended
VJA310 ¥1,320
66310-30011-C1 note Hook Assy, Rope
2021-12 → 2024-11 ended
VJA310 ¥1,320
67771N — Retainer, Rear Floor Mat Support Plate, NO.2
67771-60030 Retainer, Rear Floor Mat Support Plate, NO.2
2021-12 → 2024-11 ended
VJA310 ¥140
75277 — Band, Tool, NO.1
64279-60021 Band, Tool, NO.1
2021-12 → 2024-11 ended
VJA310 ¥600
64279-60030 note Band, Tool, NO.1
2022-08 → 2024-11 ended
VJA310 ¥1,130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
