Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

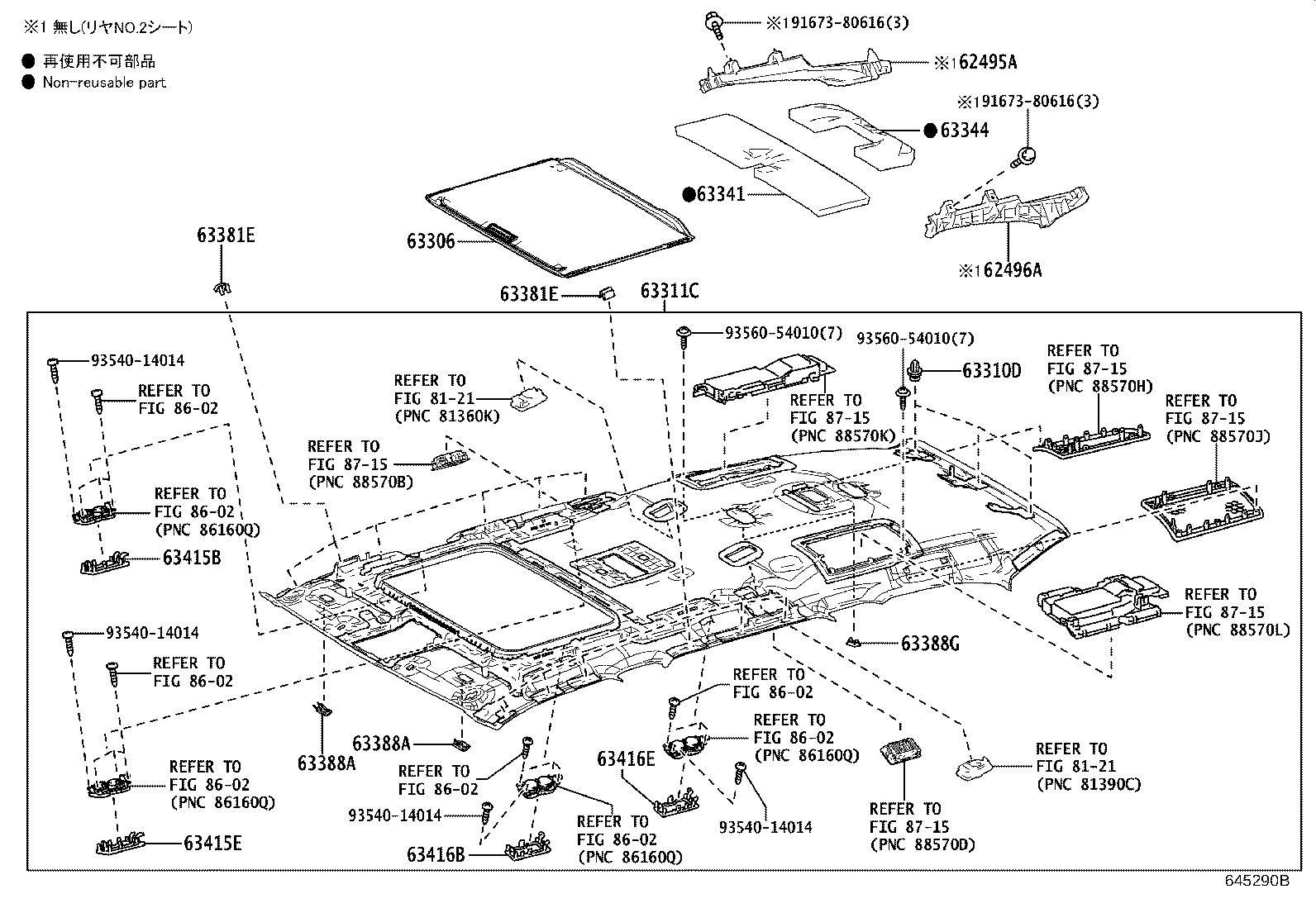

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 62495A — Spacer, Roof Side Inner Garnish, RH NO.1 | ||||
| 62495-60060 note |
Spacer, Roof Side Inner Garnish, RH NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥3,160 | |
| 62496A — Spacer, Roof Side Inner Garnish, LH NO.1 | ||||
| 62496-60060 note |
Spacer, Roof Side Inner Garnish, LH NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥3,160 | |
| 63306 — Trim Sub-assy, Sunshade | ||||
| 63306-60170-C0 note |
Trim Sub-assy, Sunshade
2021-12 → 2024-11
ended
|
VJA310 | ¥24,700 | |
| 63310D — Clip, Roof Headlining | ||||
| 90467-10167 |
Clip, Roof Headlining
2021-12 → 2024-11
ended
|
VJA310 | ¥90 | |
| 63311C — Headlining, Roof | ||||
| 63311-60A30-C0 note |
Headlining, Roof
2021-12 → 2024-11
ended
|
VJA310 | ¥106,000 | |
| 63311-60A40-C0 note |
Headlining, Roof
2021-12 → 2024-11
ended
|
VJA310 | ¥154,000 | |
| 63311-60B00-C0 note |
Headlining, Roof
2021-12 → 2024-11
ended
|
VJA310 | ¥207,000 | |
| 63341 — Pad, Roof Silencer, NO.1 | ||||
| 63341-60180 |
Pad, Roof Silencer, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥660 | |
| 63343-60080 note |
Pad, Roof Silencer, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥660 | |
| 63344 — Pad, Roof Silencer, NO.4 | ||||
| 63344-60050 |
Pad, Roof Silencer, NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥310 | |
| 63381E — Retainer, Roof Headlining Trim, Front | ||||
| 63381-60030 |
Retainer, Roof Headlining Trim, Front
2021-12 → 2024-11
ended
|
VJA310 | ¥110 | |
| 63388A — Cover, Roof Headlining Holder | ||||
| 63388-60080-C0 note |
Cover, Roof Headlining Holder
2021-12 → 2024-11
ended
|
VJA310 | ¥280 | |
| 63388G — Cover, Roof Headlining Holder, NO.2 | ||||
| 63388-33050-C0 note |
Cover, Roof Headlining Holder, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥170 | |
| 63415B — Grille, Roof Speaker, RH | ||||
| 63415-60040-C0 note |
Grille, Roof Speaker, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63415-60040-C0 note |
Grille, Roof Speaker, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63415E — Grille, Roof Speaker, RH NO.2 | ||||
| 63415-60060-C0 note |
Grille, Roof Speaker, RH NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63415-60060-C0 note |
Grille, Roof Speaker, RH NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63416B — Grille, Roof Speaker, LH | ||||
| 63416-60040-C0 note |
Grille, Roof Speaker, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63416-60040-C0 note |
Grille, Roof Speaker, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63416E — Grille, Roof Speaker, LH NO.2 | ||||
| 63416-60060-C0 note |
Grille, Roof Speaker, LH NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
| 63416-60060-C0 note |
Grille, Roof Speaker, LH NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥640 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
