Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

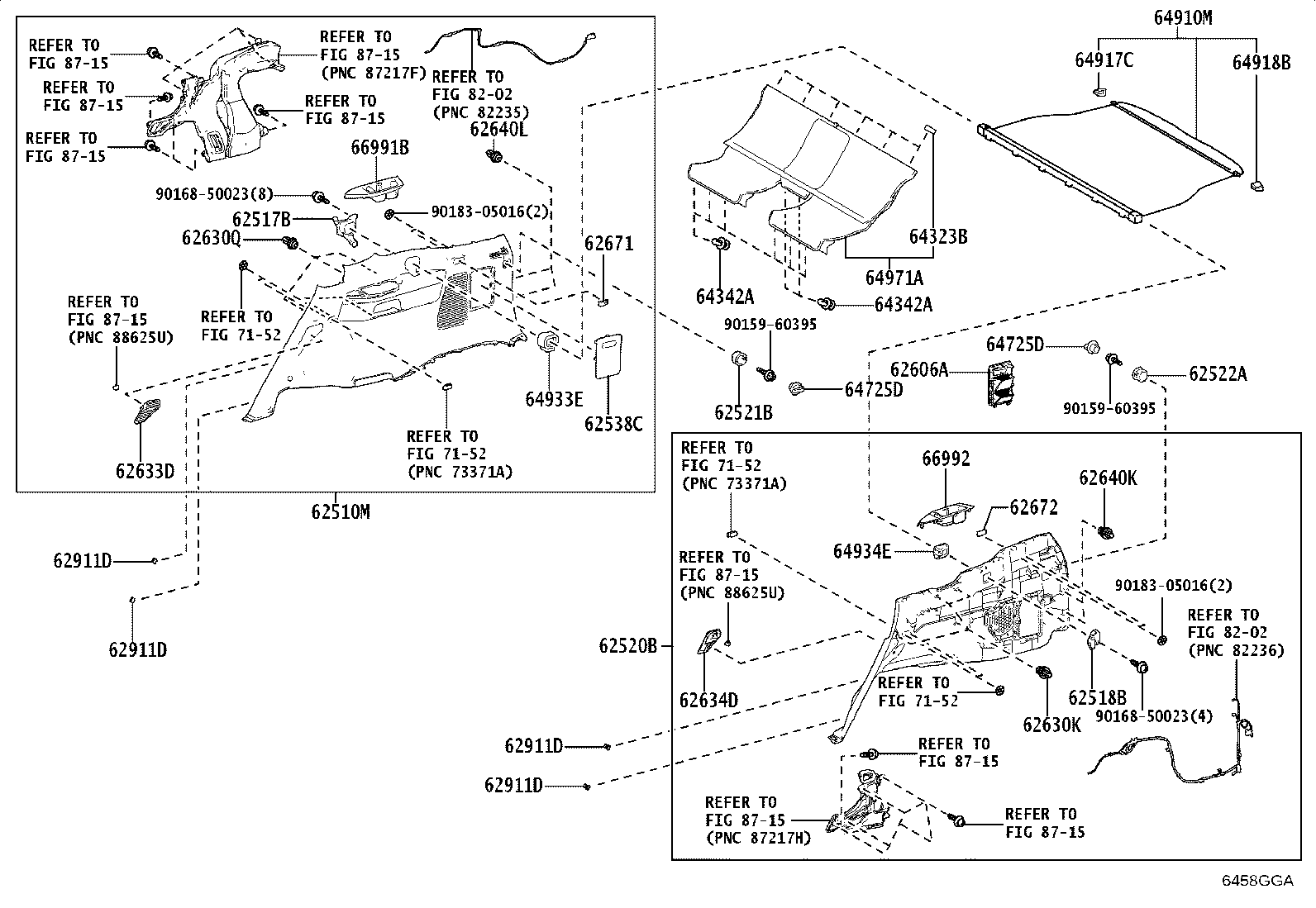

Exploded illustration 6458GGA 8715 — not listed in this catalogue 8202 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 7152 — not listed in this catalogue 7152 — not listed in this catalogue 8715 — not listed in this catalogue 62640L — CLIP(FOR QUARTER TRIM) (1 parts) 62630Q — CLIP (FOR QUARTER TRIM) (1 parts) 62517B — BASE, QUARTER TRIM, FRONT RH (3 parts) 66991B — HOLDER, CUP, NO.1 (3 parts) 9016850023 — not listed in this catalogue 62634D — COVER, QUARTER TRIM BASE, FRONT LH (1 parts) 66992 — HOLDER, CUP, NO.2 (4 parts) 62606A — LID SUB-ASSY, QUARTER TRIM, LH (1 parts) 64910M — COVER ASSY, TONNEAU (3 parts) 64934E — BRACKET, TONNEAU COVER HOLDER, FRONT LH (4 parts) 62518B — BASE, QUARTER TRIM, FRONT LH (4 parts) 62911D — HOOK, SIDE WINDOW LOCK (1 parts) 62911D — HOOK, SIDE WINDOW LOCK (1 parts) 9016850023 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 62911D — HOOK, SIDE WINDOW LOCK (1 parts) 62911D — HOOK, SIDE WINDOW LOCK (1 parts) 64323B — CLAMP, TONNEAU COVER (1 parts) 64971A — COVER, TONNEAU COVER HINGE, FRONT (1 parts) 64342A — CLIP (1 parts) 64342A — CLIP (1 parts) 64933E — BRACKET, TONNEAU COVER HOLDER, FRONT RH (3 parts) 62520B — PANEL ASSY, QUARTER TRIM, LH (5 parts) 62633D — COVER, QUARTER TRIM BASE, FRONT RH (1 parts) 8715 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 8715 — not listed in this catalogue 62538C — COVER, QUARTER TRIM, HOLE (1 parts) 7152 — not listed in this catalogue 7152 — not listed in this catalogue 62640K — CLIP(FOR QUARTER TRIM REAR PANEL) (1 parts) 62630K — CLIP(FOR QUARTER TRIM REAR PANEL) (1 parts) 9015960395 — not listed in this catalogue 62521B — COVER, QUARTER TRIM, RH (1 parts) 64725D — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (1 parts) 9015960395 — not listed in this catalogue 62522A — COVER, QUARTER TRIM, LH (1 parts) 64725D — HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 (1 parts) 64917C — CAP, TONNEAU COVER HINGE END, REAR RH (3 parts) 64918B — CAP, TONNEAU COVER HINGE END, REAR LH (3 parts) 8202 — not listed in this catalogue 62510M — PANEL ASSY, QUARTER TRIM, RH (4 parts) 62671 — not listed in this catalogue 62672 — not listed in this catalogue 9018305016 — not listed in this catalogue 9018305016 — not listed in this catalogue
6458GGA · 31 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
62510M — Panel Assy, Quarter Trim, RH
62510-60J80-C0 note Panel Assy, Quarter Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥35,200
62510-60J90-C0 note Panel Assy, Quarter Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥44,200
62510-60K00-C0 note Panel Assy, Quarter Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥44,400
62510-60K20-C0 note Panel Assy, Quarter Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥35,700
62517B — Base, Quarter Trim, Front RH
62517-60050 note Base, Quarter Trim, Front RH
2021-12 → 2024-11 ended
VJA310 ¥400
62517-60050 note Base, Quarter Trim, Front RH
2021-12 → 2024-11 ended
VJA310 ¥400
62517-60070 note Base, Quarter Trim, Front RH
2021-12 → 2024-11 ended
VJA310 ¥1,390
62518B — Base, Quarter Trim, Front LH
62518-60040 note Base, Quarter Trim, Front LH
2021-12 → 2024-11 ended
VJA310 ¥400
62518-60040 note Base, Quarter Trim, Front LH
2021-12 → 2024-11 ended
VJA310 ¥400
62518-60040 note Base, Quarter Trim, Front LH
2021-12 → 2024-11 ended
VJA310 ¥400
62518-60050 note Base, Quarter Trim, Front LH
2021-12 → 2024-11 ended
VJA310 ¥640
62520B — Panel Assy, Quarter Trim, LH
62520-60K30-C0 note Panel Assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥29,500
62520-60K50-C0 note Panel Assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥30,300
62520-60P80-C0 note Panel Assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥43,600
62520-60Q10-C0 note Panel Assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥43,900
62520-60Q30-C0 note Panel Assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥29,600
62521B — Cover, Quarter Trim, RH
62521-48020-C2 note Cover, Quarter Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥270
62522A — Cover, Quarter Trim, LH
62521-48020-C2 note Cover, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥270
62538C — Cover, Quarter Trim, Hole
62538-60090-C0 note Cover, Quarter Trim, Hole
2021-12 → 2024-11 ended
VJA310 ¥1,990
62606A — Lid Sub-assy, Quarter Trim, LH
62605-60040-C0 note Lid Sub-assy, Quarter Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥3,160
62630K — Clip(FOR QUARTER TRIM REAR PANEL)
90467-09245 Clip(FOR QUARTER TRIM REAR PANEL)
2021-12 → 2024-11 ended
VJA310 ¥80
62630Q — Clip (FOR QUARTER TRIM)
90467-09245 Clip (FOR QUARTER TRIM)
2021-12 → 2024-11 ended
VJA310 ¥80
62633D — Cover, Quarter Trim Base, Front RH
62633-60010-C0 note Cover, Quarter Trim Base, Front RH
2021-12 → 2024-11 ended
VJA310 ¥980
62634D — Cover, Quarter Trim Base, Front LH
62634-60010-C0 note Cover, Quarter Trim Base, Front LH
2021-12 → 2024-11 ended
VJA310 ¥980
62640K — Clip(FOR QUARTER TRIM REAR PANEL)
90467-10161 Clip(FOR QUARTER TRIM REAR PANEL)
2021-12 → 2024-11 ended
VJA310 ¥90
62640L — Clip(FOR QUARTER TRIM)
90467-10161 Clip(FOR QUARTER TRIM)
2021-12 → 2024-11 ended
VJA310 ¥90
62911D — Hook, Side Window Lock
62911-60030 Hook, Side Window Lock
2021-12 → 2024-11 ended
VJA310 ¥130
64323B — Clamp, Tonneau Cover
64324-60010 note Clamp, Tonneau Cover
2021-12 → 2024-11 ended
VJA310 ¥240
64342A — Clip
75867-33050 note Clip
2021-12 → 2024-11 ended
VJA310 ¥210
64725D — Hook, Luggage Compartment Trim, NO.1
64725-48020-C1 note Hook, Luggage Compartment Trim, NO.1
2021-12 → 2024-11 ended
VJA310 ¥260
64910M — Cover Assy, Tonneau
64910-60270-C2 note Cover Assy, Tonneau
2021-12 → 2024-11 ended
VJA310 ¥27,900
64910-60270-C2 note Cover Assy, Tonneau
2021-12 → 2024-11 ended
VJA310 ¥27,900
64910-60280-C2 note Cover Assy, Tonneau
2021-12 → 2024-11 ended
VJA310 ¥26,300
64917C — Cap, Tonneau Cover Hinge End, Rear RH
64917-60020-C0 note Cap, Tonneau Cover Hinge End, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥80
64917-60020-C0 note Cap, Tonneau Cover Hinge End, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥80
64917-60020-C0 note Cap, Tonneau Cover Hinge End, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥80
64918B — Cap, Tonneau Cover Hinge End, Rear LH
64918-60020-C0 note Cap, Tonneau Cover Hinge End, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥80
64918-60020-C0 note Cap, Tonneau Cover Hinge End, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥80
64918-60020-C0 note Cap, Tonneau Cover Hinge End, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥80
64933E — Bracket, Tonneau Cover Holder, Front RH
64933-60040-C0 note Bracket, Tonneau Cover Holder, Front RH
2021-12 → 2024-11 ended
VJA310 ¥930
64933-60040-C0 note Bracket, Tonneau Cover Holder, Front RH
2021-12 → 2024-11 ended
VJA310 ¥930
64933-60060-C0 note Bracket, Tonneau Cover Holder, Front RH
2021-12 → 2024-11 ended
VJA310 ¥1,360
64934E — Bracket, Tonneau Cover Holder, Front LH
64934-60040-C0 note Bracket, Tonneau Cover Holder, Front LH
2021-12 → 2024-11 ended
VJA310 ¥930
64934-60040-C0 note Bracket, Tonneau Cover Holder, Front LH
2021-12 → 2024-11 ended
VJA310 ¥930
64934-60040-C0 note Bracket, Tonneau Cover Holder, Front LH
2021-12 → 2024-11 ended
VJA310 ¥930
64934-60050-C0 note Bracket, Tonneau Cover Holder, Front LH
2021-12 → 2024-11 ended
VJA310 ¥1,000
64971A — Cover, Tonneau Cover Hinge, Front
64971-60010-C1 note Cover, Tonneau Cover Hinge, Front
2021-12 → 2024-11 ended
VJA310 ¥17,200
66991B — Holder, Cup, NO.1
66991-60050-C0 note Holder, Cup, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,810
66991-60050-C0 note Holder, Cup, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,810
66991-60070-C0 note Holder, Cup, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,740
66992 — Holder, Cup, NO.2
66992-60040-C0 note Holder, Cup, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,800
66992-60040-C0 note Holder, Cup, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,800
66992-60040-C0 note Holder, Cup, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,800
66992-60060-C0 note Holder, Cup, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,700
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
