Exploded illustration 67B933A 9014860092 — not listed in this catalogue 9014850003 — not listed in this catalogue 9014880066 — not listed in this catalogue 69037 — COVER SUB-ASSY, REAR DOOR LOCK, RH (2 parts) 69038A — COVER SUB-ASSY, REAR DOOR LOCK, LH (2 parts) 69037 — COVER SUB-ASSY, REAR DOOR LOCK, RH (2 parts) 69038A — COVER SUB-ASSY, REAR DOOR LOCK, LH (2 parts) 69410B — PLATE ASSY, REAR DOOR LOCK STRIKER (1 parts) 69237B — NUT, REAR DOOR HANDLE (1 parts) 69239D — BUSH, REAR DOOR HANDLE (1 parts) 69296A — SCREW, DOOR INSIDE HANDLE (1 parts) 69230 — HANDLE ASSY, REAR DOOR OUTSIDE, RH (8 parts) 69227M — COVER, REAR DOOR OUTSIDE HANDLE (1 parts) 69240 — HANDLE ASSY, REAR DOOR OUTSIDE, LH (8 parts) 69241G — PAD, REAR DOOR OUTSIDE HANDLE, FRONT (1 parts) 69205C — CUSHION(FOR REAR DOOR INSIDE HANDLE) (1 parts) 69205A — HANDLE SUB-ASSY, REAR DOOR INSIDE, RH (1 parts) 69206C — HANDLE SUB-ASSY, REAR DOOR INSIDE, LH (1 parts) 9018905183 — not listed in this catalogue 9356755020 — not listed in this catalogue 69203A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH (1 parts) 69204A — FRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH (1 parts) 69242G — PAD, REAR DOOR OUTSIDE HANDLE, REAR (1 parts) 69770E — CABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB) (1 parts) 69780E — CABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB) (1 parts) 69730M — CABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER) (1 parts) 69740E — CABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER) (1 parts) 69297C — BEZEL, DOOR INSIDE HANDLE, NO.2 RH (1 parts) 69298C — BEZEL, DOOR INSIDE HANDLE, NO.2 LH (1 parts) 69415C — COVER, DOOR LOCK STRIKER, REAR (1 parts) 9011906817 — not listed in this catalogue 69318D — SEAL, DOOR LOCK WIRING HARNESS (1 parts) 69050A — LOCK ASSY, REAR DOOR W/MOTOR, RH (1 parts) 69060A — LOCK ASSY, REAR DOOR W/MOTOR, LH (1 parts)

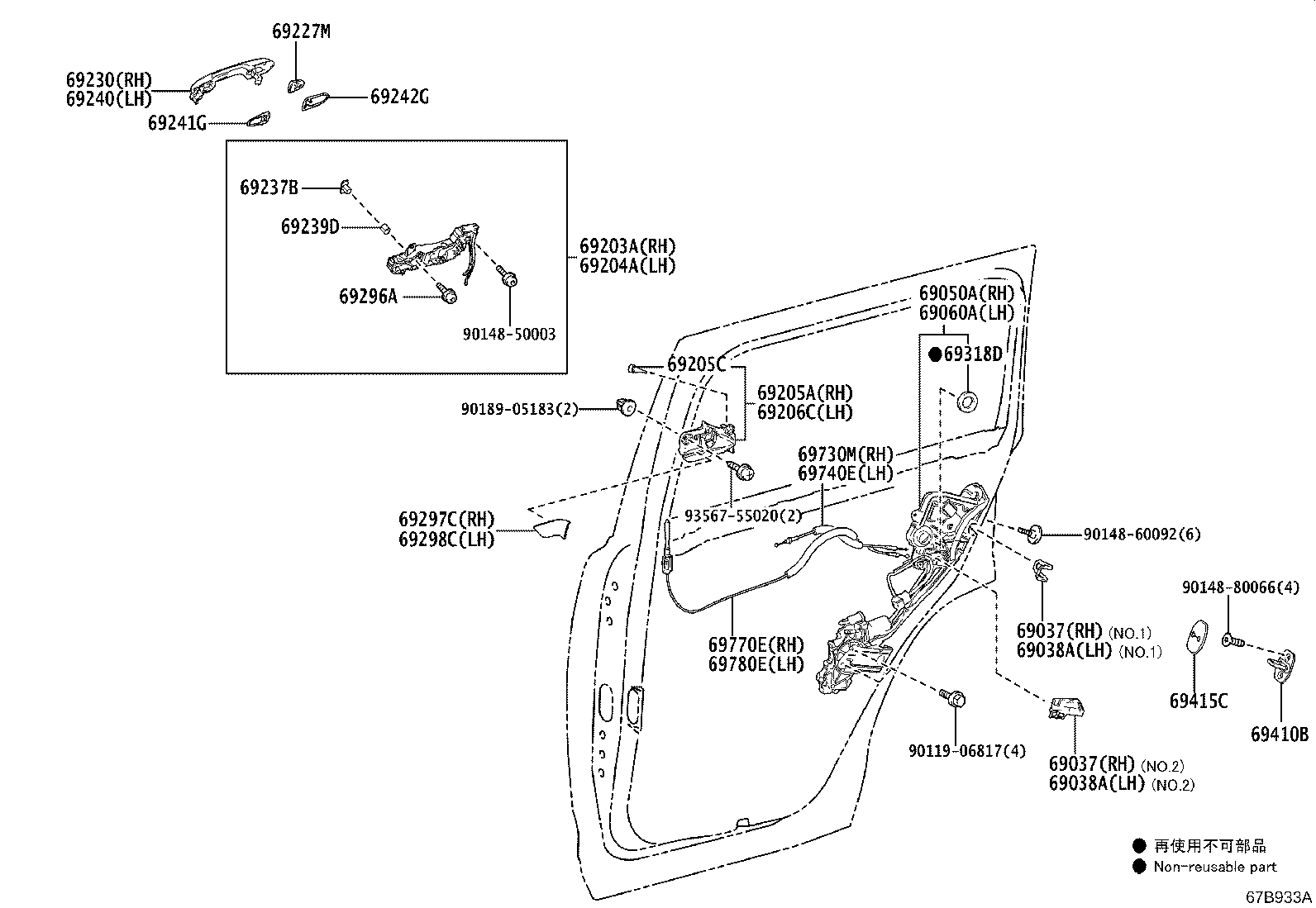

67B933A · 28 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
69037 — Cover Sub-assy, Rear Door Lock, RH
69031-76010 note Cover Sub-assy, Rear Door Lock, RH
2021-12 → 2024-11 ended
VJA310 ¥210
69037-30010 note Cover Sub-assy, Rear Door Lock, RH
2021-12 → 2024-11 ended
VJA310 ¥200
69038A — Cover Sub-assy, Rear Door Lock, LH
69032-76010 note Cover Sub-assy, Rear Door Lock, LH
2021-12 → 2024-11 ended
VJA310 ¥210
69038-30010 note Cover Sub-assy, Rear Door Lock, LH
2021-12 → 2024-11 ended
VJA310 ¥200
69050A — Lock Assy, Rear Door W/Motor, RH
69050-60180 Lock Assy, Rear Door W/Motor, RH
2021-12 → 2024-11 ended
VJA310 ¥21,900
69060A — Lock Assy, Rear Door W/Motor, LH
69060-60180 Lock Assy, Rear Door W/Motor, LH
2021-12 → 2024-11 ended
VJA310 ¥21,900
69203A — Frame Sub-assy, Rear Door Outside Handle, RH
69203-60080 Frame Sub-assy, Rear Door Outside Handle, RH
2021-12 → 2024-11 ended
VJA310 ¥4,210
69204A — Frame Sub-assy, Rear Door Outside Handle, LH
69204-60080 Frame Sub-assy, Rear Door Outside Handle, LH
2021-12 → 2024-11 ended
VJA310 ¥4,210
69205A — Handle Sub-assy, Rear Door Inside, RH
69270-60030 Handle Sub-assy, Rear Door Inside, RH
2021-12 → 2024-11 ended
VJA310 ¥2,490
69205C — Cushion(FOR REAR DOOR INSIDE HANDLE)
90541-04014 Cushion(FOR REAR DOOR INSIDE HANDLE)
2021-12 → 2024-11 ended
VJA310 ¥100
69206C — Handle Sub-assy, Rear Door Inside, LH
69280-60030 Handle Sub-assy, Rear Door Inside, LH
2021-12 → 2024-11 ended
VJA310 ¥2,490
69227M — Cover, Rear Door Outside Handle
69227-30130 Cover, Rear Door Outside Handle
2021-12 → 2024-11 ended
VJA310 ¥490
69230 — Handle Assy, Rear Door Outside, RH
69210-60350-A3 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-A4 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-B2 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-B3 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-C0 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-C2 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-G0 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60400-C0 note Handle Assy, Rear Door Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥8,500
69237B — Nut, Rear Door Handle
69237-62010 Nut, Rear Door Handle
2021-12 → 2024-11 ended
VJA310 ¥160
69239D — Bush, Rear Door Handle
69239-47010 Bush, Rear Door Handle
2021-12 → 2024-11 ended
VJA310 ¥90
69240 — Handle Assy, Rear Door Outside, LH
69210-60350-A3 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-A4 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-B2 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-B3 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-C0 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-C2 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60350-G0 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥9,700
69210-60400-C0 note Handle Assy, Rear Door Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥8,500
69241G — Pad, Rear Door Outside Handle, Front
69241-60070 Pad, Rear Door Outside Handle, Front
2021-12 → 2024-11 ended
VJA310 ¥400
69242G — Pad, Rear Door Outside Handle, Rear
69242-60050 Pad, Rear Door Outside Handle, Rear
2021-12 → 2024-11 ended
VJA310 ¥400
69296A — Screw, Door Inside Handle
69296-30010 Screw, Door Inside Handle
2021-12 → 2024-11 ended
VJA310 ¥90
69297C — Bezel, Door Inside Handle, NO.2 RH
69297-60030 Bezel, Door Inside Handle, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥210
69298C — Bezel, Door Inside Handle, NO.2 LH
69298-60030 Bezel, Door Inside Handle, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥210
69318D — Seal, Door Lock Wiring Harness
69318-51010 Seal, Door Lock Wiring Harness
2021-12 → 2024-11 ended
VJA310 ¥120
69410B — Plate Assy, Rear Door Lock Striker
69410-30060 Plate Assy, Rear Door Lock Striker
2021-12 → 2024-11 ended
VJA310 ¥1,060
69415C — Cover, Door Lock Striker, Rear
69415-60020 Cover, Door Lock Striker, Rear
2021-12 → 2024-11 ended
VJA310 ¥270
69730M — Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
69730-60080 Cable, Rear Door Lock Remote Control, RH(FOR OPEN LEVER)
2021-12 → 2024-11 ended
VJA310 ¥940
69740E — Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
69730-60080 Cable, Rear Door Lock Remote Control, LH(FOR OPEN LEVER)
2021-12 → 2024-11 ended
VJA310 ¥940
69770E — Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
69770-60120 Cable, Rear Door Inside Locking, RH(FOR LOCK / UNLOCK KNOB)
2021-12 → 2024-11 ended
VJA310 ¥1,900
69780E — Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
69770-60120 Cable, Rear Door Inside Locking, LH(FOR LOCK / UNLOCK KNOB)
2021-12 → 2024-11 ended
VJA310 ¥1,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
