Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

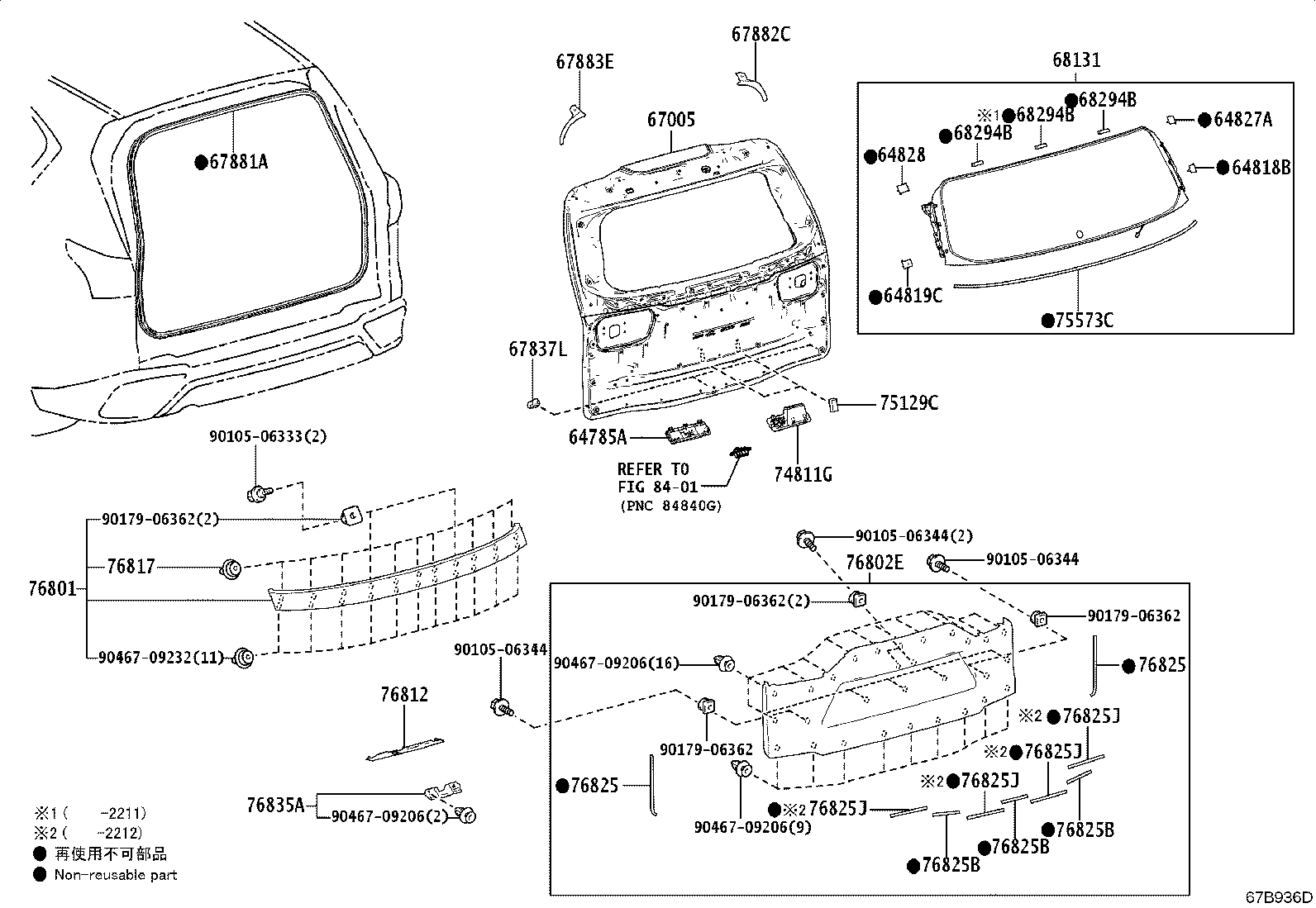

Exploded illustration 67B936D 67881A — WEATHERSTRIP, BACK DOOR (2 parts) 64827A — CLIP, BACK WINDOW GLASS, RH (1 parts) 64828 — CLIP, BACK WINDOW GLASS, LH (1 parts) 64818B — SPACER, BACK DOOR GLASS, NO.1 (1 parts) 64819C — SPACER, BACK DOOR GLASS, NO.2 (1 parts) 68294B — DAM, BACK DOOR GLASS ADHESIVE (2 parts) 68294B — DAM, BACK DOOR GLASS ADHESIVE (2 parts) 68294B — DAM, BACK DOOR GLASS ADHESIVE (2 parts) 64785A — BASE, BACK DOOR TRIM (1 parts) 74811G — HANDLE, DOOR PULL (1 parts) 67837L — SEAL, DOOR DUST PROOF (1 parts) 75573C — MOULDING, BACK WINDOW, OUTSIDE (1 parts) 68131 — GLASS, BACK DOOR (2 parts) 76817 — CLIP, BACK DOOR OUTSIDE GARNISH (1 parts) 76812 — GARNISH, BACK DOOR, OUTSIDE LOWER (7 parts) 9017906362 — not listed in this catalogue 9017906362 — not listed in this catalogue 9017906362 — not listed in this catalogue 9017906362 — not listed in this catalogue 9010506333 — not listed in this catalogue 9010506344 — not listed in this catalogue 9010506344 — not listed in this catalogue 9010506344 — not listed in this catalogue 9046709232 — not listed in this catalogue 9046709206 — not listed in this catalogue 9046709206 — not listed in this catalogue 9046709206 — not listed in this catalogue 67882C — WEATHERSTRIP, BACK DOOR, NO.2 (1 parts) 67883E — WEATHERSTRIP, BACK DOOR, NO.3 (1 parts) 75129C — CUSHION, REAR LICENCE PLATE (1 parts) 76801 — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE (7 parts) 76802E — GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER (7 parts) 76825B — PROTECTOR, BACK DOOR OUTSIDE GARNISH (1 parts) 76825B — PROTECTOR, BACK DOOR OUTSIDE GARNISH (1 parts) 76825B — PROTECTOR, BACK DOOR OUTSIDE GARNISH (1 parts) 76825J — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (1 parts) 76825J — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (1 parts) 76825J — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (1 parts) 76825J — PROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2 (1 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (1 parts) 76825 — PROTECTOR, BACK DOOR OUTSIDE GARNISH (1 parts) 76835A — PROTECTOR, BACK DOOR FINISH PANEL, NO.1 (1 parts) 67005 — PANEL SUB-ASSY, BACK DOOR (1 parts) 8401 — not listed in this catalogue
67B936D · 31 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
64785A — Base, Back Door Trim
64785-60010-C0 note Base, Back Door Trim
2021-12 → 2024-11 ended
VJA310 ¥650
64818B — Spacer, Back Door Glass, NO.1
64818-60090 Spacer, Back Door Glass, NO.1
2021-12 → 2024-11 ended
VJA310 ¥230
64819C — Spacer, Back Door Glass, NO.2
64819-60100 Spacer, Back Door Glass, NO.2
2021-12 → 2024-11 ended
VJA310 ¥230
64827A — Clip, Back Window Glass, RH
64827-60130 Clip, Back Window Glass, RH
2021-12 → 2024-11 ended
VJA310 ¥260
64828 — Clip, Back Window Glass, LH
64828-60130 Clip, Back Window Glass, LH
2021-12 → 2024-11 ended
VJA310 ¥260
67005 — Panel Sub-assy, Back Door
67005-60L80 Panel Sub-assy, Back Door
2021-12 → 2024-11 ended
VJA310 ¥87,700
67837L — Seal, Door Dust Proof
67837-60100 Seal, Door Dust Proof
2021-12 → 2024-11 ended
VJA310 ¥80
67881A — Weatherstrip, Back Door
67881-60190 Weatherstrip, Back Door
2021-12 → 2023-11 ended
VJA310 ¥9,000
67881-60191 Weatherstrip, Back Door
2023-12 → 2024-11 ended
VJA310 ¥8,100
67882C — Weatherstrip, Back Door, NO.2
63191-60040 Weatherstrip, Back Door, NO.2
2021-12 → 2024-11 ended
VJA310 ¥870
67883E — Weatherstrip, Back Door, NO.3
63192-60040 Weatherstrip, Back Door, NO.3
2021-12 → 2024-11 ended
VJA310 ¥870
68131 — Glass, Back Door
68105-60390 Glass, Back Door
2021-12 → 2024-08 ended
VJA310 —
68105-60391 Glass, Back Door
2024-09 → 2024-11 ended
VJA310 —
68294B — Dam, Back Door Glass Adhesive
68294-26030 Dam, Back Door Glass Adhesive
2021-12 → 2022-11 ended
VJA310 ¥200
68294-26030 Dam, Back Door Glass Adhesive
2022-11 → 2024-11 ended
VJA310 ¥200
74811G — Handle, Door Pull
69291-60050-C0 note Handle, Door Pull
2021-12 → 2024-11 ended
VJA310 ¥1,000
75129C — Cushion, Rear Licence Plate
75129-13020 Cushion, Rear Licence Plate
2021-12 → 2024-11 ended
VJA310 ¥80
75573C — Moulding, Back Window, Outside
75573-60140 Moulding, Back Window, Outside
2021-12 → 2024-11 ended
VJA310 ¥510
76801 — Garnish Sub-assy, Back Door, Outside
76801-60650-A0 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76801-60650-A1 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76801-60650-B0 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76801-60650-B1 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76801-60650-C0 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥22,600
76801-60650-C1 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76801-60650-G0 note Garnish Sub-assy, Back Door, Outside
2021-12 → 2024-11 ended
VJA310 ¥20,500
76802E — Garnish Sub-assy, Back Door, Outside Lower
76802-60270-A0 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76802-60270-A1 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76802-60270-B0 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76802-60270-B1 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76802-60270-C0 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥112,000
76802-60270-C1 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76802-60270-G0 note Garnish Sub-assy, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥101,000
76812 — Garnish, Back Door, Outside Lower
76813-60090-A0 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76813-60090-A1 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76813-60090-B0 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76813-60090-B1 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76813-60090-C0 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥3,220
76813-60090-C1 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76813-60090-G0 note Garnish, Back Door, Outside Lower
2021-12 → 2024-11 ended
VJA310 ¥2,920
76817 — Clip, Back Door Outside Garnish
90467-09206 Clip, Back Door Outside Garnish
2021-12 → 2024-11 ended
VJA310 ¥80
76825 — Protector, Back Door Outside Garnish
76825-60240 Protector, Back Door Outside Garnish
2021-12 → 2024-11 ended
VJA310 ¥430
76825B — Protector, Back Door Outside Garnish
76825-60290 Protector, Back Door Outside Garnish
2021-12 → 2024-11 ended
VJA310 ¥430
76825J — Protector, Back Door Outside Garnish, NO.2
76825-60280 Protector, Back Door Outside Garnish, NO.2
2021-12 → 2022-12 ended
VJA310 ¥470
76835A — Protector, Back Door Finish Panel, NO.1
76838-60020 Protector, Back Door Finish Panel, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,350
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
