Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

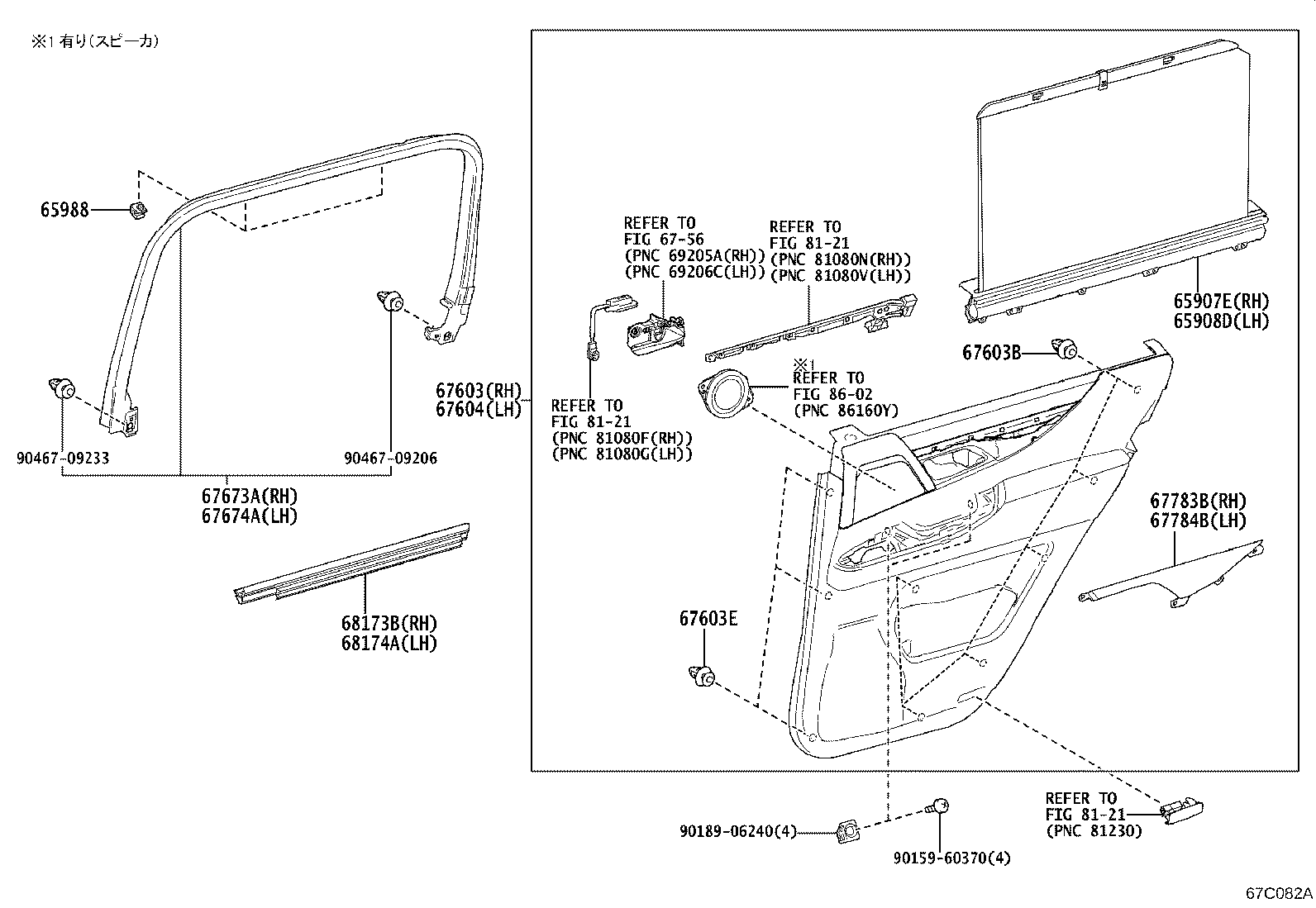

Exploded illustration 67C082A 8121 — not listed in this catalogue 8121 — not listed in this catalogue 8602 — not listed in this catalogue 67783B — ORNAMENT SUB-ASSY, REAR DOOR TRIM, RH (5 parts) 67784B — ORNAMENT SUB-ASSY, REAR DOOR TRIM, LH (5 parts) 65907E — CURTAIN SUB-ASSY, REAR RH (1 parts) 65908D — CURTAIN SUB-ASSY, REAR LH (1 parts) 67603E — CLIP(FOR REAR DOOR TRIM BOARD) (1 parts) 67603B — CLIP(FOR REAR DOOR TRIM BOARD) (1 parts) 65988 — HOOK, SUNSHADE (1 parts) 9018906240 — not listed in this catalogue 9015960370 — not listed in this catalogue 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (44 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (44 parts) 68173B — WEATHERSTRIP, REAR DOOR GLASS, INNER RH (1 parts) 68174A — WEATHERSTRIP, REAR DOOR GLASS, INNER LH (1 parts) 67673A — GARNISH, REAR DOOR FRAME, RH (1 parts) 67674A — GARNISH, REAR DOOR FRAME, LH (1 parts) 9046709206 — not listed in this catalogue 9046709233 — not listed in this catalogue 6756 — not listed in this catalogue 8121 — not listed in this catalogue
67C082A · 13 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
107 parts on this figure
Part number Description Fitment Price
65907E — Curtain Sub-assy, Rear RH
65907-60030 Curtain Sub-assy, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥19,400
65908D — Curtain Sub-assy, Rear LH
65908-60030 Curtain Sub-assy, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥19,400
65988 — Hook, Sunshade
65923-60020 Hook, Sunshade
2021-12 → 2024-11 ended
VJA310 ¥500
67603 — Board Sub-assy, Rear Door Trim, RH
67630-6A210-E0 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-E1 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L0 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L3 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L4 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L6 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L7 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L8 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-L9 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-M1 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-M2 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-M5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-M6 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-M9 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A210-N8 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A220-C4 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A220-C5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67630-6A230-E1 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E2 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E3 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E3 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E4 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E6 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E7 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E8 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E8 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-E9 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-L0 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-L3 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-L4 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-L7 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-L8 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M2 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M6 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M6 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M9 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-M9 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-Q0 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A230-Q1 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A240-C4 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67630-6A240-C5 note Board Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67603B — Clip(FOR REAR DOOR TRIM BOARD)
90467-09206 Clip(FOR REAR DOOR TRIM BOARD)
2021-12 → 2024-11 ended
VJA310 ¥80
67603E — Clip(FOR REAR DOOR TRIM BOARD)
90467-09233 Clip(FOR REAR DOOR TRIM BOARD)
2021-12 → 2024-11 ended
VJA310 ¥80
67604 — Board Sub-assy, Rear Door Trim, LH
67640-6A210-E0 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-E1 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L0 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L3 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L4 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L6 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L7 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L8 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-L9 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-M1 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-M2 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-M5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-M6 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-M9 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A210-N8 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A220-C4 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A220-C5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥138,000
67640-6A230-E1 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E2 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E3 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E3 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E4 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E6 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E7 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E8 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E8 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-E9 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-L0 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-L3 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-L4 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-L7 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-L8 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M2 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M6 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M6 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M9 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-M9 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-Q0 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A230-Q1 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A240-C4 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67640-6A240-C5 note Board Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥148,000
67673A — Garnish, Rear Door Frame, RH
67673-60030 Garnish, Rear Door Frame, RH
2021-12 → 2024-11 ended
VJA310 ¥5,400
67674A — Garnish, Rear Door Frame, LH
67674-60030 Garnish, Rear Door Frame, LH
2021-12 → 2024-11 ended
VJA310 ¥5,400
67783B — Ornament Sub-assy, Rear Door Trim, RH
67783-60A90-C0 note Ornament Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67783-60A90-C2 note Ornament Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67783-60A90-E1 note Ornament Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67783-60A90-E2 note Ornament Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67783-60B00-B0 note Ornament Sub-assy, Rear Door Trim, RH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67784B — Ornament Sub-assy, Rear Door Trim, LH
67784-60A60-C0 note Ornament Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67784-60A60-C2 note Ornament Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67784-60A60-E1 note Ornament Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67784-60A60-E2 note Ornament Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥21,700
67784-60B10-B0 note Ornament Sub-assy, Rear Door Trim, LH
2021-12 → 2024-11 ended
VJA310 ¥21,700
68173B — Weatherstrip, Rear Door Glass, Inner RH
68173-60090 Weatherstrip, Rear Door Glass, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥2,590
68174A — Weatherstrip, Rear Door Glass, Inner LH
68174-60090 Weatherstrip, Rear Door Glass, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥2,590
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
