Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

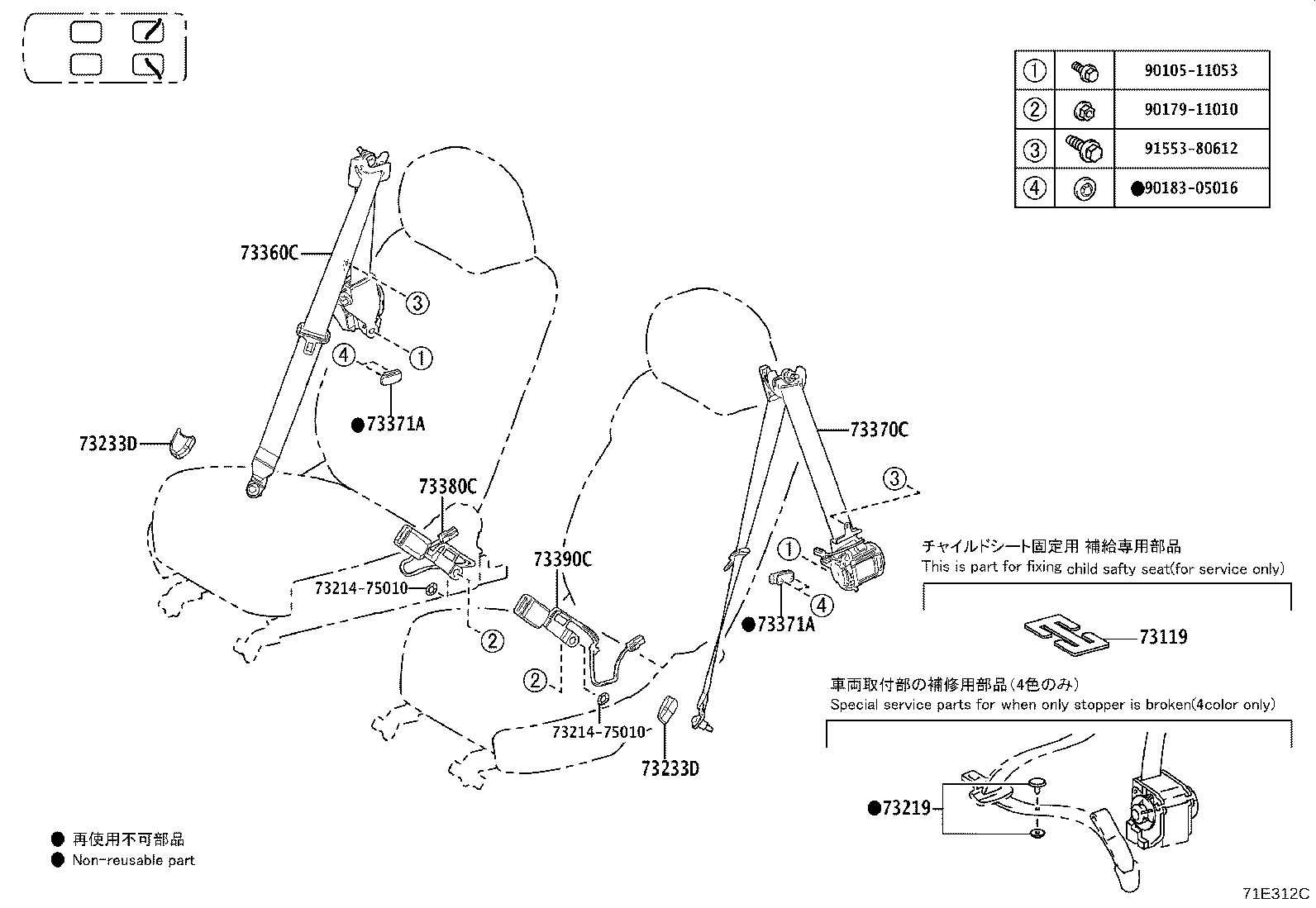

Exploded illustration 71E312C 73233D — COVER, LAP BELT OUTER ANCHOR (1 parts) 73233D — COVER, LAP BELT OUTER ANCHOR (1 parts) 73360C — BELT ASSY, REAR NO.1 SEAT, OUTER RH (4 parts) 73370C — BELT ASSY, REAR NO.1 SEAT, OUTER LH (4 parts) 73371A — HANGER REAR SEAT SHOULDER BELT (1 parts) 73371A — HANGER REAR SEAT SHOULDER BELT (1 parts) 73380C — BELT ASSY, REAR NO.1 SEAT, INNER RH (2 parts) 73390C — BELT ASSY, REAR NO.1 SEAT, INNER LH (2 parts) 9018305016 — not listed in this catalogue 7321475010 — not listed in this catalogue 7321475010 — not listed in this catalogue 9010511053 — not listed in this catalogue 9017911010 — not listed in this catalogue 9155380612 — not listed in this catalogue 73219 — STOPPER, TONGUE PLATE (4 parts) 73119 — PLATE, SEAT BELT WEBBING CLIP (1 parts)
71E312C · 10 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
73119 — Plate, Seat Belt Webbing Clip
73119-22010 Plate, Seat Belt Webbing Clip
2021-12 → 2024-11 ended
VJA310 ¥1,110
73219 — Stopper, Tongue Plate
73219-33010 note Stopper, Tongue Plate
2021-12 → 2024-11 ended
VJA310 ¥100
73219-33020 note Stopper, Tongue Plate
2021-12 → 2024-11 ended
VJA310 ¥100
73219-33030 note Stopper, Tongue Plate
2021-12 → 2024-11 ended
VJA310 ¥100
73219-50010 note Stopper, Tongue Plate
2021-12 → 2024-11 ended
VJA310 ¥100
73233D — Cover, Lap Belt Outer Anchor
73233-60020-C1 note Cover, Lap Belt Outer Anchor
2021-12 → 2024-11 ended
VJA310 ¥370
73360C — Belt Assy, Rear NO.1 Seat, Outer RH
73360-60690-C0 note Belt Assy, Rear NO.1 Seat, Outer RH
2021-12 → 2022-06 ended
VJA310 ¥26,200
73360-60691-C0 note Belt Assy, Rear NO.1 Seat, Outer RH
2022-07 → 2024-11 ended
VJA310 ¥23,800
73360-60700-C1 note Belt Assy, Rear NO.1 Seat, Outer RH
2021-12 → 2022-06 ended
VJA310 ¥26,200
73360-60701-C1 note Belt Assy, Rear NO.1 Seat, Outer RH
2022-07 → 2024-11 ended
VJA310 ¥23,800
73370C — Belt Assy, Rear NO.1 Seat, Outer LH
73370-60520-C1 note Belt Assy, Rear NO.1 Seat, Outer LH
2021-12 → 2022-06 ended
VJA310 ¥26,200
73370-60521-C1 note Belt Assy, Rear NO.1 Seat, Outer LH
2022-07 → 2024-11 ended
VJA310 ¥23,800
73370-60570-C0 note Belt Assy, Rear NO.1 Seat, Outer LH
2021-12 → 2022-06 ended
VJA310 ¥26,200
73370-60571-C0 note Belt Assy, Rear NO.1 Seat, Outer LH
2022-07 → 2024-11 ended
VJA310 ¥23,800
73371A — Hanger Rear Seat Shoulder Belt
73371-60040-C1 note Hanger Rear Seat Shoulder Belt
2021-12 → 2024-11 ended
VJA310 ¥550
73380C — Belt Assy, Rear NO.1 Seat, Inner RH
73380-60330-C2 note Belt Assy, Rear NO.1 Seat, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥3,580
73380-60370-C0 note Belt Assy, Rear NO.1 Seat, Inner RH
2021-12 → 2024-11 ended
VJA310 ¥4,970
73390C — Belt Assy, Rear NO.1 Seat, Inner LH
73390-60100-C2 note Belt Assy, Rear NO.1 Seat, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥3,580
73390-60140-C0 note Belt Assy, Rear NO.1 Seat, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥4,970
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
