Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

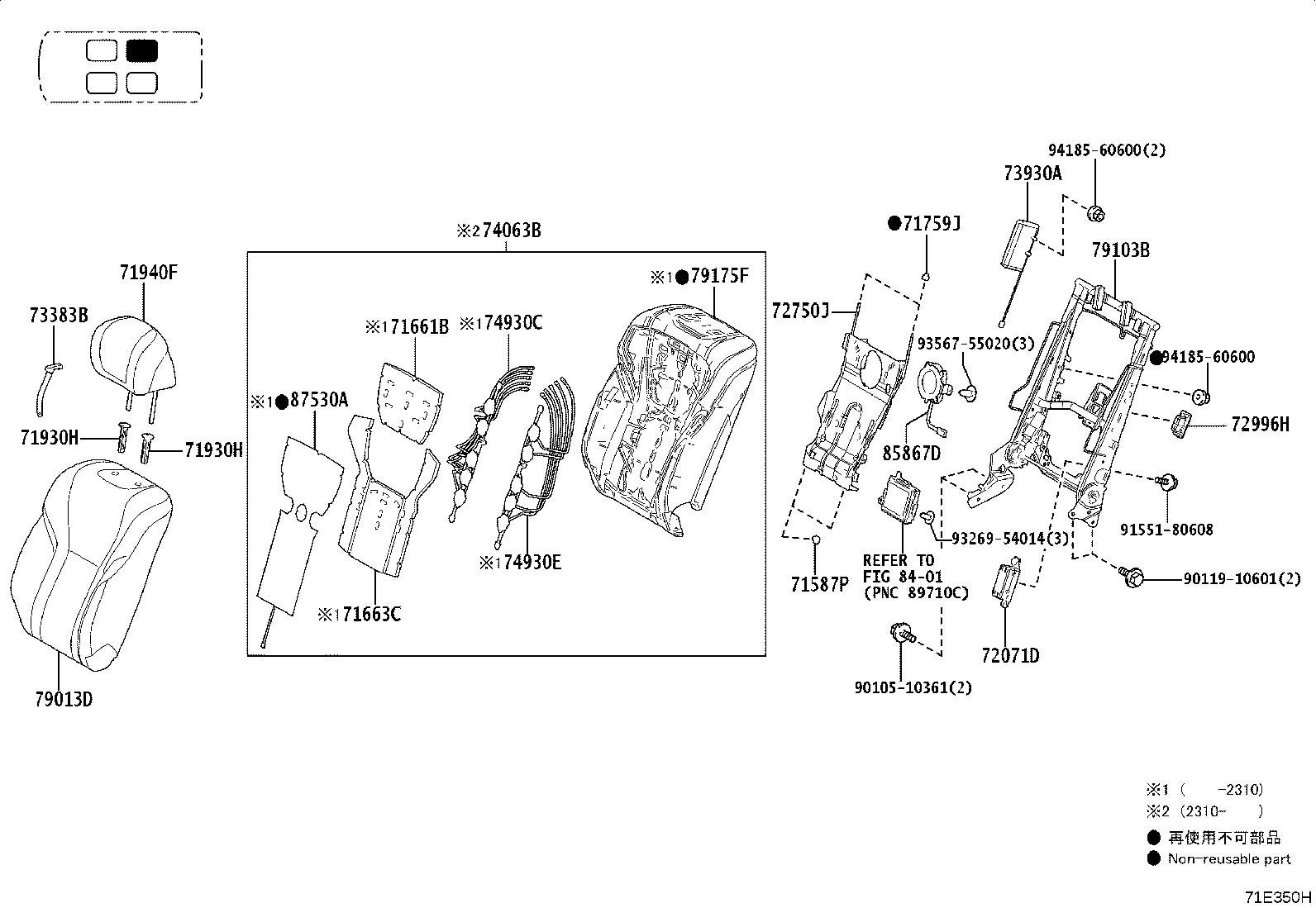

Exploded illustration 71E350H 8401 — not listed in this catalogue 79175F — PAD, NO.1 SEATBACK, RH (3 parts) 73383B — HOOK, REAR SEAT BELT (2 parts) 71930H — SUPPORT ASSY, NO.1 SEAT HEADREST, RH (4 parts) 71930H — SUPPORT ASSY, NO.1 SEAT HEADREST, RH (4 parts) 71940F — HEADREST ASSY, NO.1 SEAT, RH (7 parts) 87530A — HEATER ASSY, REAR NO.1 SEATBACK, RH (2 parts) 71663C — PAD, REAR SEATBACK, LOWER (1 parts) 71661B — PAD, REAR SEATBACK, UPPER (1 parts) 74930C — CUSHION ASSY, MAIN STRETCHER, RH NO.1(FOR SEATBACK) (1 parts) 74930E — CUSHION ASSY, MAIN STRETCHER, RH NO.2(FOR SEATBACK) (1 parts) 85867D — BLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR RH SEAT) (2 parts) 72071D — PUMP SUB-ASSY, LUMBER SUPPORT, RH (1 parts) 79013D — COVER SUB-ASSY, NO.1 SEATBACK, RH (8 parts) 71759J — HOOK, REAR SEATBACK (1 parts) 73930A — AIRBAG ASSY, REAR SEAT, RH (1 parts) 72996H — COVER, REAR SEATBACK (2 parts) 79103B — FRAME SUB-ASSY, NO.1 SEATBACK, RH (3 parts) 72750J — ADJUSTER ASSY, LUMBAR SUPPORT, RH (1 parts) 9155180608 — not listed in this catalogue 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9356755020 — not listed in this catalogue 9011910601 — not listed in this catalogue 9010510361 — not listed in this catalogue 71587P — PROTECTOR, REAR SEATBACK EDGE (1 parts) 9326954014 — not listed in this catalogue 74063B — BAG SUB-ASSY, SEATBACK PAD, RH (1 parts)
71E350H · 20 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
71587P — Protector, Rear Seatback Edge
71587-47010 note Protector, Rear Seatback Edge
2021-12 → 2024-11 ended
VJA310 ¥200
71661B — Pad, Rear Seatback, Upper
71661-60020 note Pad, Rear Seatback, Upper
2021-12 → 2023-10 ended
VJA310 ¥750
71663C — Pad, Rear Seatback, Lower
71663-60110 note Pad, Rear Seatback, Lower
2021-12 → 2023-10 ended
VJA310 ¥1,380
71759J — Hook, Rear Seatback
71759-50040 note Hook, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥130
71930H — Support Assy, NO.1 Seat Headrest, RH
71930-28050-C0 note Support Assy, NO.1 Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, NO.1 Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, NO.1 Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, NO.1 Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥470
71940F — Headrest Assy, NO.1 Seat, RH
71940-60B90-C1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60B90-E0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60C90-A0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-C2 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-D0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥17,300
71940-60C90-D1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-E1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
72071D — Pump Sub-assy, Lumber Support, RH
72071-60010 note Pump Sub-assy, Lumber Support, RH
2021-12 → 2024-11 ended
VJA310 ¥30,700
72750J — Adjuster Assy, Lumbar Support, RH
72750-60130 note Adjuster Assy, Lumbar Support, RH
2021-12 → 2024-11 ended
VJA310 ¥79,300
72996H — Cover, Rear Seatback
72996-48150-C1 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥650
72996-60190-C0 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥590
73383B — Hook, Rear Seat Belt
73383-60030-C0 note Hook, Rear Seat Belt
2021-12 → 2024-11 ended
VJA310 ¥19,200
73383-60030-E0 note Hook, Rear Seat Belt
2021-12 → 2024-11 ended
VJA310 ¥19,200
73930A — Airbag Assy, Rear Seat, RH
73930-60050 Airbag Assy, Rear Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥20,000
74063B — Bag Sub-assy, Seatback Pad, RH
74063-60020 note Bag Sub-assy, Seatback Pad, RH
2023-10 → 2024-11 ended
VJA310 ¥11,100
74930C — Cushion Assy, Main Stretcher, RH NO.1(FOR SEATBACK)
74930-60040 note Cushion Assy, Main Stretcher, RH NO.1(FOR SEATBACK)
2021-12 → 2023-10 ended
VJA310 ¥14,500
74930E — Cushion Assy, Main Stretcher, RH NO.2(FOR SEATBACK)
74930-60050 note Cushion Assy, Main Stretcher, RH NO.2(FOR SEATBACK)
2021-12 → 2023-10 ended
VJA310 ¥14,500
79013D — Cover Sub-assy, NO.1 Seatback, RH
71077-60X30-A0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-D0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-E0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X40-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X40-D0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X50-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71077-60X50-E0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥69,600
79103B — Frame Sub-assy, NO.1 Seatback, RH
71017-60A70 note Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥32,200
71017-60B00 Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥32,200
71017-60B10 note Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥36,100
79175F — Pad, NO.1 Seatback, RH
71507-60250 Pad, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71507-60310 note Pad, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71507-60320 note Pad, NO.1 Seatback, RH
2021-12 → 2023-09 ended
VJA310 ¥12,200
85867D — Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867-42010 Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥8,900
85867-60050 note Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥15,700
87530A — Heater Assy, Rear NO.1 Seatback, RH
87530-60030 note Heater Assy, Rear NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60070 Heater Assy, Rear NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
