Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

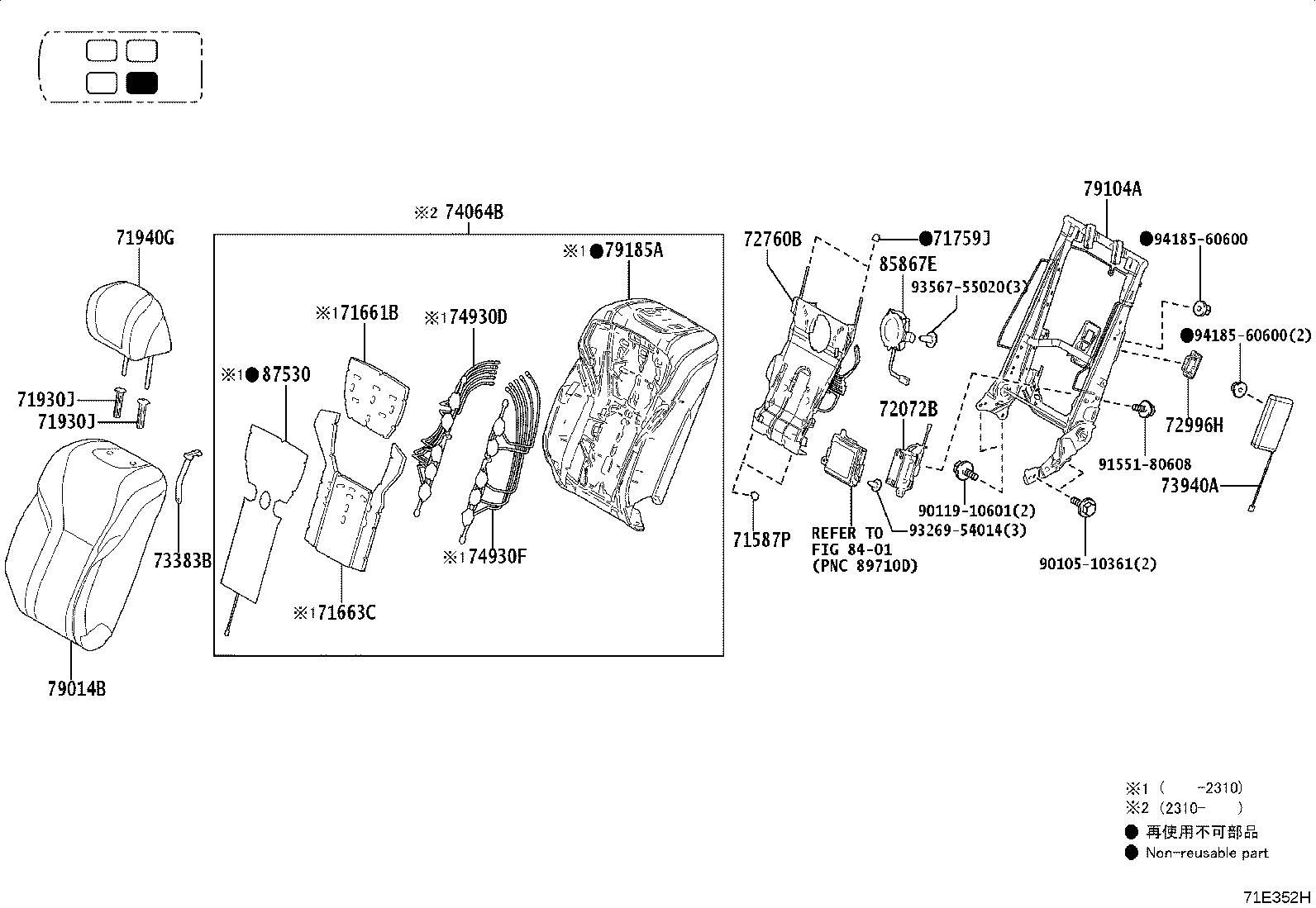

Exploded illustration 71E352H 79104A — FRAME SUB-ASSY, NO.1 SEATBACK, LH (3 parts) 72996H — COVER, REAR SEATBACK (2 parts) 73940A — AIRBAG ASSY, REAR SEAT, LH (1 parts) 72760B — ADJUSTER ASSY, LUMBAR SUPPORT, LH (1 parts) 71759J — HOOK, REAR SEATBACK (1 parts) 71940G — HEADREST ASSY, NO.1 SEAT, LH (7 parts) 85867E — BLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR LH SEAT) (2 parts) 71587P — PROTECTOR, REAR SEATBACK EDGE (1 parts) 72072B — PUMP SUB-ASSY, LUMBER SUPPORT, LH (1 parts) 9418560600 — not listed in this catalogue 9418560600 — not listed in this catalogue 9155180608 — not listed in this catalogue 9011910601 — not listed in this catalogue 9010510361 — not listed in this catalogue 8401 — not listed in this catalogue 79185A — PAD, NO.1 SEATBACK, LH (3 parts) 71930J — SUPPORT ASSY, NO.1 SEAT HEADREST, LH (4 parts) 71930J — SUPPORT ASSY, NO.1 SEAT HEADREST, LH (4 parts) 87530 — HEATER ASSY, REAR NO.1 SEATBACK, LH (2 parts) 71663C — PAD, REAR SEATBACK, LOWER (1 parts) 71661B — PAD, REAR SEATBACK, UPPER (1 parts) 74930D — CUSHION ASSY, MAIN STRETCHER, LH NO.1(FOR SEATBACK) (1 parts) 74930F — CUSHION ASSY, MAIN STRETCHER, LH NO.2(FOR SEATBACK) (1 parts) 79014B — COVER SUB-ASSY, NO.1 SEATBACK, LH (8 parts) 73383B — HOOK, REAR SEAT BELT (2 parts) 9356755020 — not listed in this catalogue 9326954014 — not listed in this catalogue 74064B — BAG SUB-ASSY, SEATBACK PAD, LH (1 parts)
71E352H · 20 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
43 parts on this figure
Part number Description Fitment Price
71587P — Protector, Rear Seatback Edge
71587-47010 note Protector, Rear Seatback Edge
2021-12 → 2024-11 ended
VJA310 ¥200
71661B — Pad, Rear Seatback, Upper
71661-60020 note Pad, Rear Seatback, Upper
2021-12 → 2023-10 ended
VJA310 ¥750
71663C — Pad, Rear Seatback, Lower
71663-60110 note Pad, Rear Seatback, Lower
2021-12 → 2023-10 ended
VJA310 ¥1,380
71759J — Hook, Rear Seatback
71759-50040 note Hook, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥130
71930J — Support Assy, NO.1 Seat Headrest, LH
71930-28050-C0 note Support Assy, NO.1 Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, NO.1 Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, NO.1 Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, NO.1 Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥470
71940G — Headrest Assy, NO.1 Seat, LH
71940-60B90-C1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60B90-E0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60C90-A0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-C2 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-D0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥17,300
71940-60C90-D1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-E1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
72072B — Pump Sub-assy, Lumber Support, LH
72072-60020 note Pump Sub-assy, Lumber Support, LH
2021-12 → 2024-11 ended
VJA310 ¥30,700
72760B — Adjuster Assy, Lumbar Support, LH
72760-60090 note Adjuster Assy, Lumbar Support, LH
2021-12 → 2024-11 ended
VJA310 ¥79,300
72996H — Cover, Rear Seatback
72996-48150-C1 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥650
72996-60190-C0 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥590
73383B — Hook, Rear Seat Belt
73383-60030-C0 note Hook, Rear Seat Belt
2021-12 → 2024-11 ended
VJA310 ¥19,200
73383-60030-E0 note Hook, Rear Seat Belt
2021-12 → 2024-11 ended
VJA310 ¥19,200
73940A — Airbag Assy, Rear Seat, LH
73940-60050 Airbag Assy, Rear Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
74064B — Bag Sub-assy, Seatback Pad, LH
74064-60010 note Bag Sub-assy, Seatback Pad, LH
2023-10 → 2024-11 ended
VJA310 ¥11,100
74930D — Cushion Assy, Main Stretcher, LH NO.1(FOR SEATBACK)
74930-60040 note Cushion Assy, Main Stretcher, LH NO.1(FOR SEATBACK)
2021-12 → 2023-10 ended
VJA310 ¥14,500
74930F — Cushion Assy, Main Stretcher, LH NO.2(FOR SEATBACK)
74930-60050 note Cushion Assy, Main Stretcher, LH NO.2(FOR SEATBACK)
2021-12 → 2023-10 ended
VJA310 ¥14,500
79014B — Cover Sub-assy, NO.1 Seatback, LH
71078-60W50-A0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-D0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-E0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W60-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71078-60W60-E0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71078-60W70-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W70-D0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
79104A — Frame Sub-assy, NO.1 Seatback, LH
71018-60740 note Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥22,000
71018-60760 Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥23,300
71018-60770 note Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥36,100
79185A — Pad, NO.1 Seatback, LH
71508-60210 Pad, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71508-60220 note Pad, NO.1 Seatback, LH
2021-12 → 2023-09 ended
VJA310 ¥12,200
71508-60260 note Pad, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
85867E — Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
85867-42010 Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥8,900
85867-60050 note Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥15,700
87530 — Heater Assy, Rear NO.1 Seatback, LH
87530-60030 note Heater Assy, Rear NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60080 Heater Assy, Rear NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
