Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

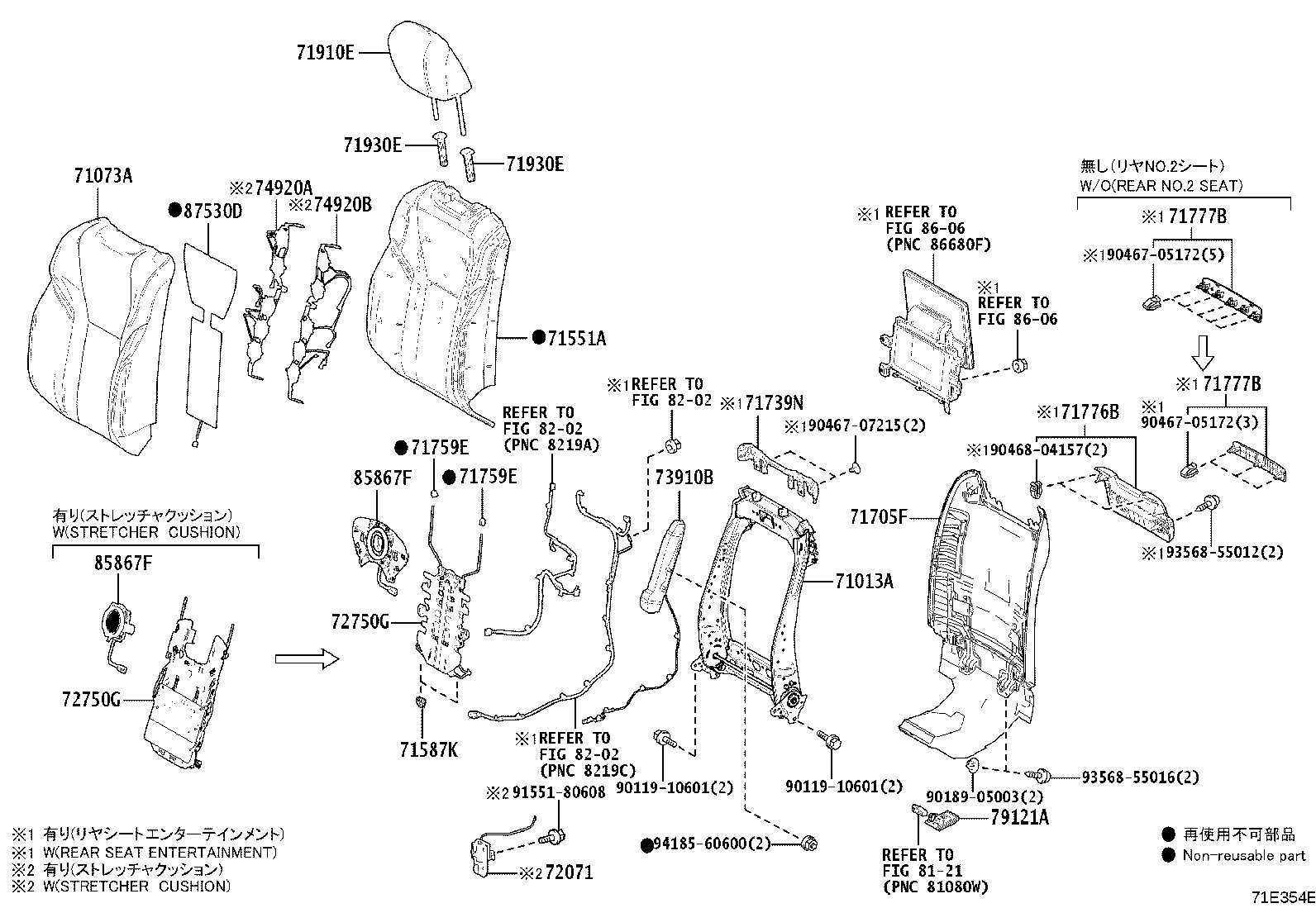

Exploded illustration 71E354E 8606 — not listed in this catalogue 8121 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8202 — not listed in this catalogue 8606 — not listed in this catalogue 71910E — HEADREST ASSY, FRONT SEAT, RH (12 parts) 71930E — SUPPORT ASSY, FRONT SEAT HEADREST, RH (4 parts) 71930E — SUPPORT ASSY, FRONT SEAT HEADREST, RH (4 parts) 74920A — not listed in this catalogue 74920B — not listed in this catalogue 71551A — PAD, FRONT SEATBACK, RH (4 parts) 72071 — not listed in this catalogue 71073A — COVER SUB-ASSY, FRONT SEATBACK, RH (12 parts) 87530D — HEATER ASSY, FRONT SEATBACK, RH (1 parts) 71587K — PROTECTOR, FRONT SEATBACK EDGE, RH (1 parts) 71759E — HOOK, FRONT SEATBACK, RH (1 parts) 85867F — BLOWER, SEATBACK CLIMATE CONTROL, RH (1 parts) 72750G — ADJUSTER ASSY, LUMBAR SUPPORT, RH (1 parts) 71759E — HOOK, FRONT SEATBACK, RH (1 parts) 71013A — FRAME SUB-ASSY, FRONT SEATBACK, RH (3 parts) 79121A — BRACKET, FRONT SEAT CUSHION, RH (1 parts) 71705F — BOARD SUB-ASSY, FRONT SEATBACK, RH (3 parts) 71739N — BEZEL, FRONT SEATBACK, RH (2 parts) 71776B — COVER, FRONT SEATBACK BOARD, NO.1 (6 parts) 71777B — COVER, FRONT SEATBACK BOARD, NO.2 (6 parts) 9011910601 — not listed in this catalogue 9018905003 — not listed in this catalogue 9356855016 — not listed in this catalogue 9356855012 — not listed in this catalogue 9046804157 — not listed in this catalogue 9046707215 — not listed in this catalogue 9155180608 — not listed in this catalogue 9046705172 — not listed in this catalogue 9011910601 — not listed in this catalogue 73910B — AIRBAG ASSY, FRONT SEAT, RH (1 parts) 9418560600 — not listed in this catalogue 71777B — COVER, FRONT SEATBACK BOARD, NO.2 (6 parts) 9046705172 — not listed in this catalogue 85867F — BLOWER, SEATBACK CLIMATE CONTROL, RH (1 parts) 72750G — ADJUSTER ASSY, LUMBAR SUPPORT, RH (1 parts)
71E354E · 21 callouts, 20 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
59 parts on this figure
Part number Description Fitment Price
71013A — Frame Sub-assy, Front Seatback, RH
71013-60730 note Frame Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥31,600
71013-60730 note Frame Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥31,600
71013-60790 Frame Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥30,900
71073A — Cover Sub-assy, Front Seatback, RH
71073-60Q20-A0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60Q20-C2 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60Q20-D0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60Q20-E1 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60Q30-A0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71073-60Q30-C1 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71073-60Q30-D0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71073-60Q30-E0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71073-60Q70-C1 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60Q70-D0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71073-60S60-C1 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥106,000
71073-60S60-E0 note Cover Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥106,000
71551A — Pad, Front Seatback, RH
71551-60870 Pad, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71551-60880 note Pad, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71551-60880 note Pad, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71551-60A00 note Pad, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71587K — Protector, Front Seatback Edge, RH
71587-47010 Protector, Front Seatback Edge, RH
2021-12 → 2024-11 ended
VJA310 ¥200
71705F — Board Sub-assy, Front Seatback, RH
71705-60390-C1 note Board Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥14,900
71705-60390-C1 note Board Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥14,900
71705-60420-C1 note Board Sub-assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥17,900
71739N — Bezel, Front Seatback, RH
71739-60070 note Bezel, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71739-60070 note Bezel, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71759E — Hook, Front Seatback, RH
71759-50040 Hook, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥130
71776B — Cover, Front Seatback Board, NO.1
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60210-C1 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C4 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C5 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C6 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71777B — Cover, Front Seatback Board, NO.2
71776-60220-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,710
71777-60150-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥810
74841-60010-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-C2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E1 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
71910E — Headrest Assy, Front Seat, RH
71910-60F50-A1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-C7 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-D1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-E4 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F60-A1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-C7 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-D1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-E3 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60G00-C1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71910-60G00-D0 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71910-60G10-C1 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60G10-E0 note Headrest Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71930E — Support Assy, Front Seat Headrest, RH
71930-28050-C0 note Support Assy, Front Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, Front Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, Front Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, Front Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥470
72750G — Adjuster Assy, Lumbar Support, RH
72750-33130 Adjuster Assy, Lumbar Support, RH
2021-12 → 2024-11 ended
VJA310 ¥34,900
73910B — Airbag Assy, Front Seat, RH
73910-60040 Airbag Assy, Front Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥20,000
79121A — Bracket, Front Seat Cushion, RH
79121-60090 Bracket, Front Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥380
85867F — Blower, Seatback Climate Control, RH
85867-60080 Blower, Seatback Climate Control, RH
2021-12 → 2024-11 ended
VJA310 ¥8,900
87530D — Heater Assy, Front Seatback, RH
87530-60050 Heater Assy, Front Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
