Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

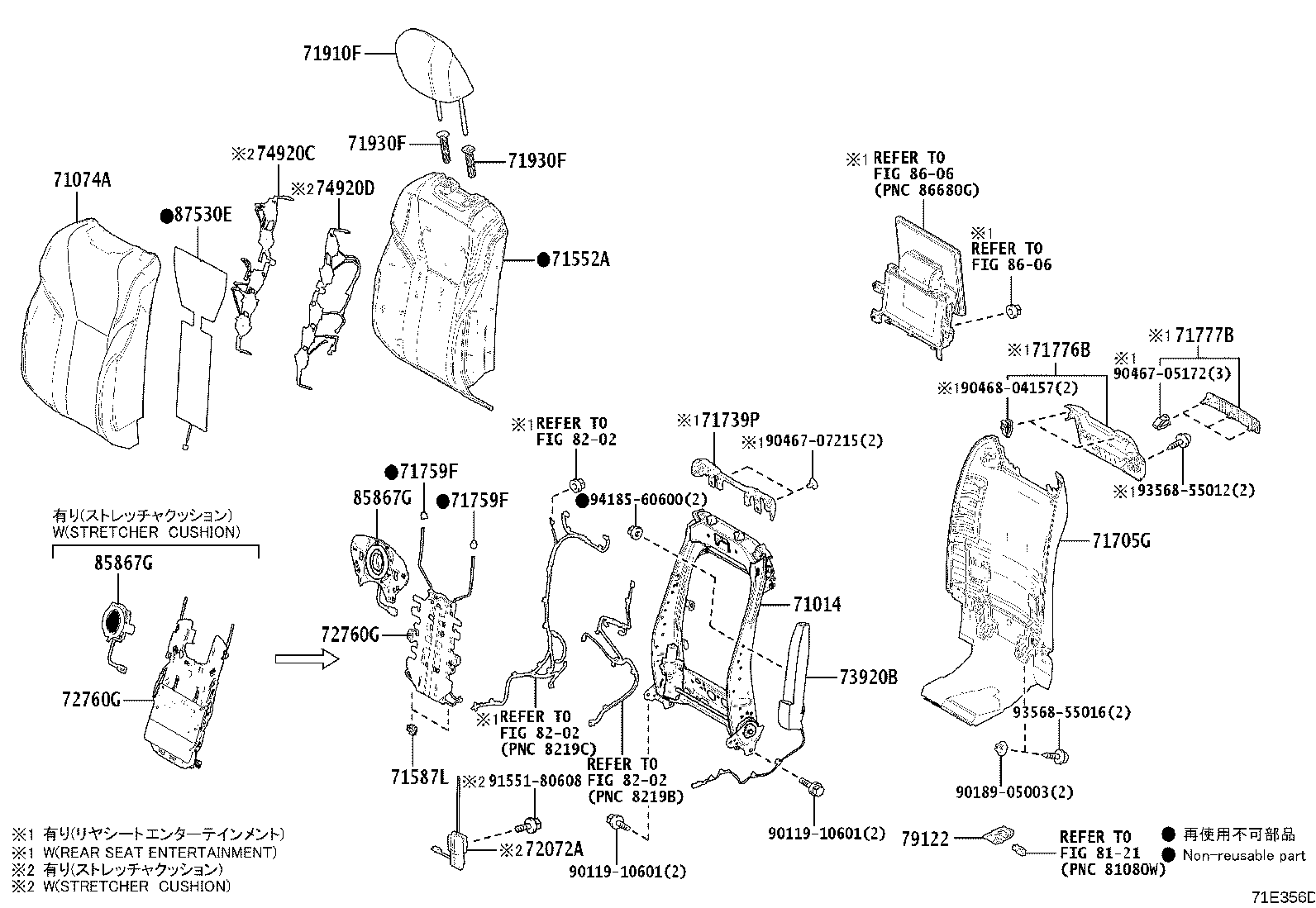

Exploded illustration 71E356D 8202 — not listed in this catalogue 8202 — not listed in this catalogue 87530E — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 71074A — COVER SUB-ASSY, FRONT SEATBACK, LH (12 parts) 71910F — HEADREST ASSY, FRONT SEAT, LH (12 parts) 71930F — SUPPORT ASSY, FRONT SEAT HEADREST, LH (4 parts) 71552A — PAD, FRONT SEATBACK, LH (4 parts) 71930F — SUPPORT ASSY, FRONT SEAT HEADREST, LH (4 parts) 71587L — PROTECTOR, FRONT SEATBACK EDGE, LH (1 parts) 71759F — HOOK, FRONT SEATBACK, LH (1 parts) 85867G — BLOWER, SEATBACK CLIMATE CONTROL, LH (2 parts) 72760G — ADJUSTER ASSY, LUMBAR SUPPORT, LH (2 parts) 85867G — BLOWER, SEATBACK CLIMATE CONTROL, LH (2 parts) 72760G — ADJUSTER ASSY, LUMBAR SUPPORT, LH (2 parts) 71759F — HOOK, FRONT SEATBACK, LH (1 parts) 8202 — not listed in this catalogue 71739P — BEZEL, FRONT SEATBACK, LH (2 parts) 71014 — FRAME SUB-ASSY, FRONT SEATBACK, LH (3 parts) 73920B — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 9046707215 — not listed in this catalogue 9418560600 — not listed in this catalogue 9011910601 — not listed in this catalogue 9011910601 — not listed in this catalogue 8606 — not listed in this catalogue 8121 — not listed in this catalogue 71705G — BOARD SUB-ASSY, FRONT SEATBACK, LH (3 parts) 79122 — BRACKET, FRONT SEAT CUSHION, LH (1 parts) 8606 — not listed in this catalogue 71777B — COVER, FRONT SEATBACK BOARD, NO.2 (6 parts) 9356855012 — not listed in this catalogue 71776B — COVER, FRONT SEATBACK BOARD, NO.1 (6 parts) 9046804157 — not listed in this catalogue 9046705172 — not listed in this catalogue 9018905003 — not listed in this catalogue 9356855016 — not listed in this catalogue 74920C — not listed in this catalogue 74920D — not listed in this catalogue 72072A — not listed in this catalogue 9155180608 — not listed in this catalogue
71E356D · 20 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
71014 — Frame Sub-assy, Front Seatback, LH
71014-60650 note Frame Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥31,600
71014-60680 note Frame Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥30,900
71014-60700 Frame Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥30,900
71074A — Cover Sub-assy, Front Seatback, LH
71074-60P70-A0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-C2 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-E1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P80-A0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-C1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-E0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60Q10-C1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60Q10-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60S00-C2 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥95,600
71074-60S00-E1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥95,600
71552A — Pad, Front Seatback, LH
71552-60710 Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71552-60720 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71552-60740 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71552-60830 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71587L — Protector, Front Seatback Edge, LH
71587-47010 Protector, Front Seatback Edge, LH
2021-12 → 2024-11 ended
VJA310 ¥200
71705G — Board Sub-assy, Front Seatback, LH
71706-60180-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥14,900
71706-60190-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥17,900
71706-60200-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥18,600
71739P — Bezel, Front Seatback, LH
71739-60050 note Bezel, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥2,480
71739-60070 note Bezel, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71759F — Hook, Front Seatback, LH
71759-50040 Hook, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥130
71776B — Cover, Front Seatback Board, NO.1
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60210-C1 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C4 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C5 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C6 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71777B — Cover, Front Seatback Board, NO.2
71776-60220-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,710
71777-60150-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥810
74841-60010-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-C2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E1 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
71910F — Headrest Assy, Front Seat, LH
71910-60F50-A1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-C7 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-D1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-E4 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F60-A1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-C7 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-D1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-E3 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F90-C1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥50,100
71910-60F90-E0 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥50,100
71910-60G00-C1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71910-60G00-D0 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71930F — Support Assy, Front Seat Headrest, LH
71930-28050-C0 note Support Assy, Front Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, Front Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, Front Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, Front Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥470
72760G — Adjuster Assy, Lumbar Support, LH
72750-33130 Adjuster Assy, Lumbar Support, LH
2021-12 → 2024-11 ended
VJA310 ¥34,900
72750-60120 note Adjuster Assy, Lumbar Support, LH
2021-12 → 2024-11 ended
VJA310 ¥5,700
73920B — Airbag Assy, Front Seat, LH
73920-60040 Airbag Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
73920-60060 note Airbag Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
79122 — Bracket, Front Seat Cushion, LH
79122-60010 Bracket, Front Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥380
85867G — Blower, Seatback Climate Control, LH
85867-60050 note Blower, Seatback Climate Control, LH
2021-12 → 2024-11 ended
VJA310 ¥15,700
85867-60080 Blower, Seatback Climate Control, LH
2021-12 → 2024-11 ended
VJA310 ¥8,900
87530E — Heater Assy, Front Seatback, LH
87530-60050 Heater Assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60060 note Heater Assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
