Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

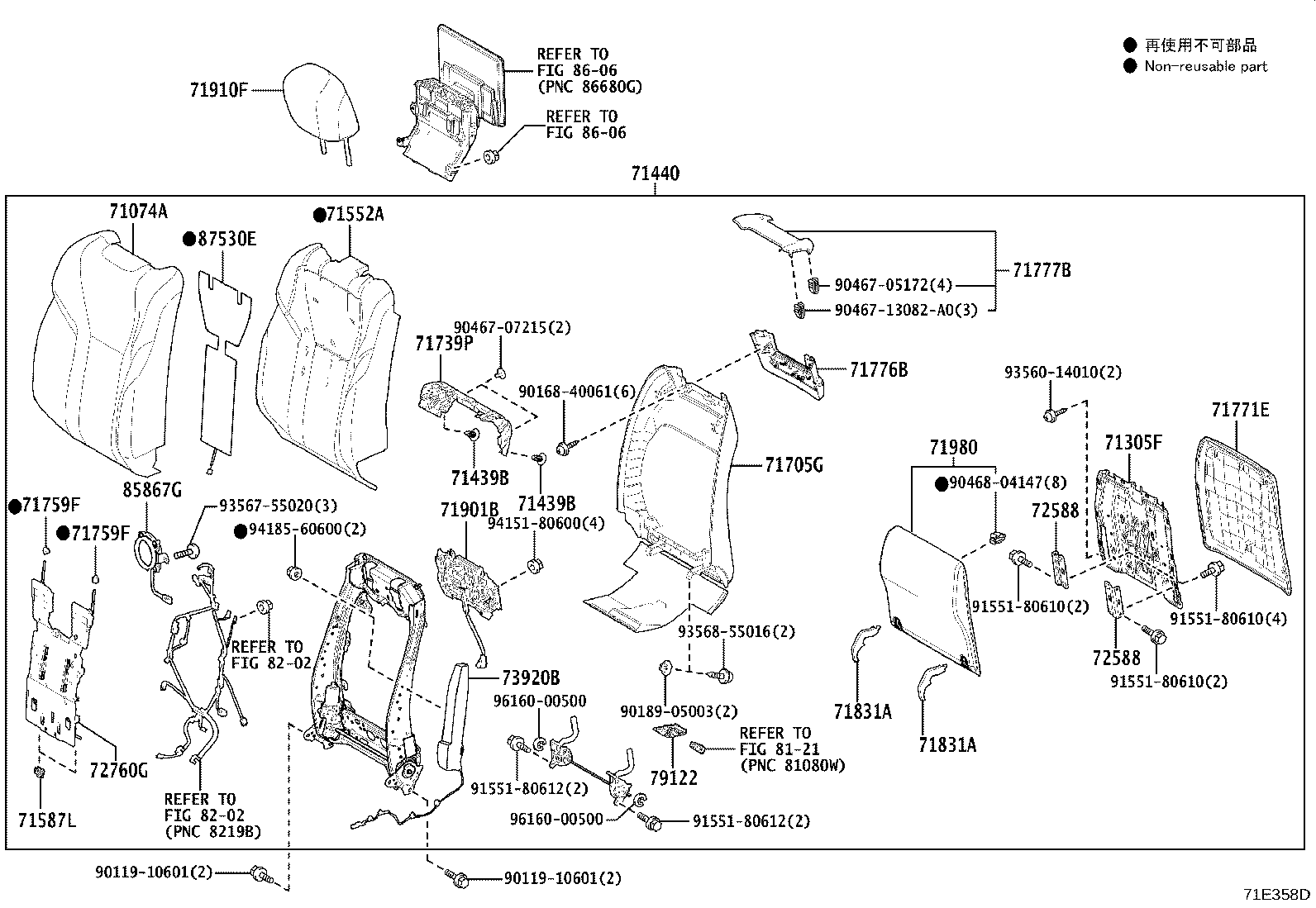

Exploded illustration 71E358E 8202 — not listed in this catalogue 87530E — HEATER ASSY, FRONT SEATBACK, LH (2 parts) 71074A — COVER SUB-ASSY, FRONT SEATBACK, LH (12 parts) 71910F — HEADREST ASSY, FRONT SEAT, LH (12 parts) 71552A — PAD, FRONT SEATBACK, LH (4 parts) 71587L — PROTECTOR, FRONT SEATBACK EDGE, LH (1 parts) 71759F — HOOK, FRONT SEATBACK, LH (1 parts) 85867G — BLOWER, SEATBACK CLIMATE CONTROL, LH (2 parts) 72760G — ADJUSTER ASSY, LUMBAR SUPPORT, LH (2 parts) 71759F — HOOK, FRONT SEATBACK, LH (1 parts) 71439B — CLIP (1 parts) 71439B — CLIP (1 parts) 71739P — BEZEL, FRONT SEATBACK, LH (2 parts) 71901B — INSERT SUB-ASSY, FRONT SEAT HEADREST (2 parts) 8202 — not listed in this catalogue 8121 — not listed in this catalogue 79122 — BRACKET, FRONT SEAT CUSHION, LH (1 parts) 9046707215 — not listed in this catalogue 9415180600 — not listed in this catalogue 9016840061 — not listed in this catalogue 9046705172 — not listed in this catalogue 9046713082A0 — not listed in this catalogue 9046804147 — not listed in this catalogue 73920B — AIRBAG ASSY, FRONT SEAT, LH (2 parts) 9418560600 — not listed in this catalogue 8606 — not listed in this catalogue 8606 — not listed in this catalogue 71705G — BOARD SUB-ASSY, FRONT SEATBACK, LH (3 parts) 71831A — COVER, FRONT SEAT HINGE (1 parts) 71831A — COVER, FRONT SEAT HINGE (1 parts) 72588 — BRACKET, FRONT SEATBACK BOARD (1 parts) 71305F — FRAME SUB-ASSY, CENTER SEATBACK, LH (1 parts) 71771E — BOARD, FRONT SEATBACK, LH (1 parts) 72588 — BRACKET, FRONT SEATBACK BOARD (1 parts) 71776B — COVER, FRONT SEATBACK BOARD, NO.1 (6 parts) 71980 — FOOTREST ASSY, FRONT SEAT, NO.1 (1 parts) 71777B — COVER, FRONT SEATBACK BOARD, NO.2 (6 parts) 71440 — BACK ASSY, FRONT SEAT, LH (8 parts) 9018905003 — not listed in this catalogue 9356855016 — not listed in this catalogue 9011910601 — not listed in this catalogue 9155180612 — not listed in this catalogue 9616000500 — not listed in this catalogue 9616000500 — not listed in this catalogue 9155180612 — not listed in this catalogue 9011910601 — not listed in this catalogue 9155180610 — not listed in this catalogue 9155180610 — not listed in this catalogue 9356014010 — not listed in this catalogue 9155180610 — not listed in this catalogue 9356755020 — not listed in this catalogue
71E358E · 26 callouts, 25 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
72 parts on this figure
Part number Description Fitment Price
71074A — Cover Sub-assy, Front Seatback, LH
71074-60P70-A0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-C2 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P70-E1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60P80-A0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-C1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60P80-E0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥81,000
71074-60Q10-C1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60Q10-D0 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥85,700
71074-60S00-C2 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥95,600
71074-60S00-E1 note Cover Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥95,600
71305F — Frame Sub-assy, Center Seatback, LH
71305-60170 note Frame Sub-assy, Center Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥4,810
71439B — Clip
90467-05045-22 note Clip
2021-12 → 2024-11 ended
VJA310 ¥90
71440 — Back Assy, Front Seat, LH
71440-6A370-20 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-21 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-C8 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-C9 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-E7 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-E8 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-E9 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71440-6A370-L0 note Back Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥272,000
71552A — Pad, Front Seatback, LH
71552-60710 Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71552-60720 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71552-60740 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,900
71552-60830 note Pad, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71587L — Protector, Front Seatback Edge, LH
71587-47010 Protector, Front Seatback Edge, LH
2021-12 → 2024-11 ended
VJA310 ¥200
71705G — Board Sub-assy, Front Seatback, LH
71706-60180-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥14,900
71706-60190-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥17,900
71706-60200-C1 note Board Sub-assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥18,600
71739P — Bezel, Front Seatback, LH
71739-60050 note Bezel, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥2,480
71739-60070 note Bezel, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71759F — Hook, Front Seatback, LH
71759-50040 Hook, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥130
71771E — Board, Front Seatback, LH
71771-60110-C0 note Board, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71776B — Cover, Front Seatback Board, NO.1
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60200-C0 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,910
71776-60210-C1 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C4 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C5 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71776-60210-C6 note Cover, Front Seatback Board, NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,680
71777B — Cover, Front Seatback Board, NO.2
71776-60220-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,710
71777-60150-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥810
74841-60010-C0 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-C2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E1 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
74841-60010-E2 note Cover, Front Seatback Board, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
71831A — Cover, Front Seat Hinge
71831-60080-C0 note Cover, Front Seat Hinge
2021-12 → 2024-11 ended
VJA310 ¥890
71901B — Insert Sub-assy, Front Seat Headrest
71901-50171 note Insert Sub-assy, Front Seat Headrest
2021-12 → 2022-03 ended
VJA310 ¥30,800
71901-50172 note Insert Sub-assy, Front Seat Headrest
2022-04 → 2024-11 ended
VJA310 ¥28,000
71910F — Headrest Assy, Front Seat, LH
71910-60F50-A1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-C7 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-D1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F50-E4 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71910-60F60-A1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-C7 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-D1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F60-E3 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71910-60F90-C1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥50,100
71910-60F90-E0 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥50,100
71910-60G00-C1 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71910-60G00-D0 note Headrest Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥24,600
71980 — Footrest Assy, Front Seat, NO.1
71980-60010-C0 note Footrest Assy, Front Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥21,500
72588 — Bracket, Front Seatback Board
71355-60020 note Bracket, Front Seatback Board
2021-12 → 2024-11 ended
VJA310 ¥620
72760G — Adjuster Assy, Lumbar Support, LH
72750-33130 Adjuster Assy, Lumbar Support, LH
2021-12 → 2024-11 ended
VJA310 ¥34,900
72750-60120 note Adjuster Assy, Lumbar Support, LH
2021-12 → 2024-11 ended
VJA310 ¥5,700
73920B — Airbag Assy, Front Seat, LH
73920-60040 Airbag Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
73920-60060 note Airbag Assy, Front Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
79122 — Bracket, Front Seat Cushion, LH
79122-60010 Bracket, Front Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥380
85867G — Blower, Seatback Climate Control, LH
85867-60050 note Blower, Seatback Climate Control, LH
2021-12 → 2024-11 ended
VJA310 ¥15,700
85867-60080 Blower, Seatback Climate Control, LH
2021-12 → 2024-11 ended
VJA310 ¥8,900
87530E — Heater Assy, Front Seatback, LH
87530-60050 Heater Assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60060 note Heater Assy, Front Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
