Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

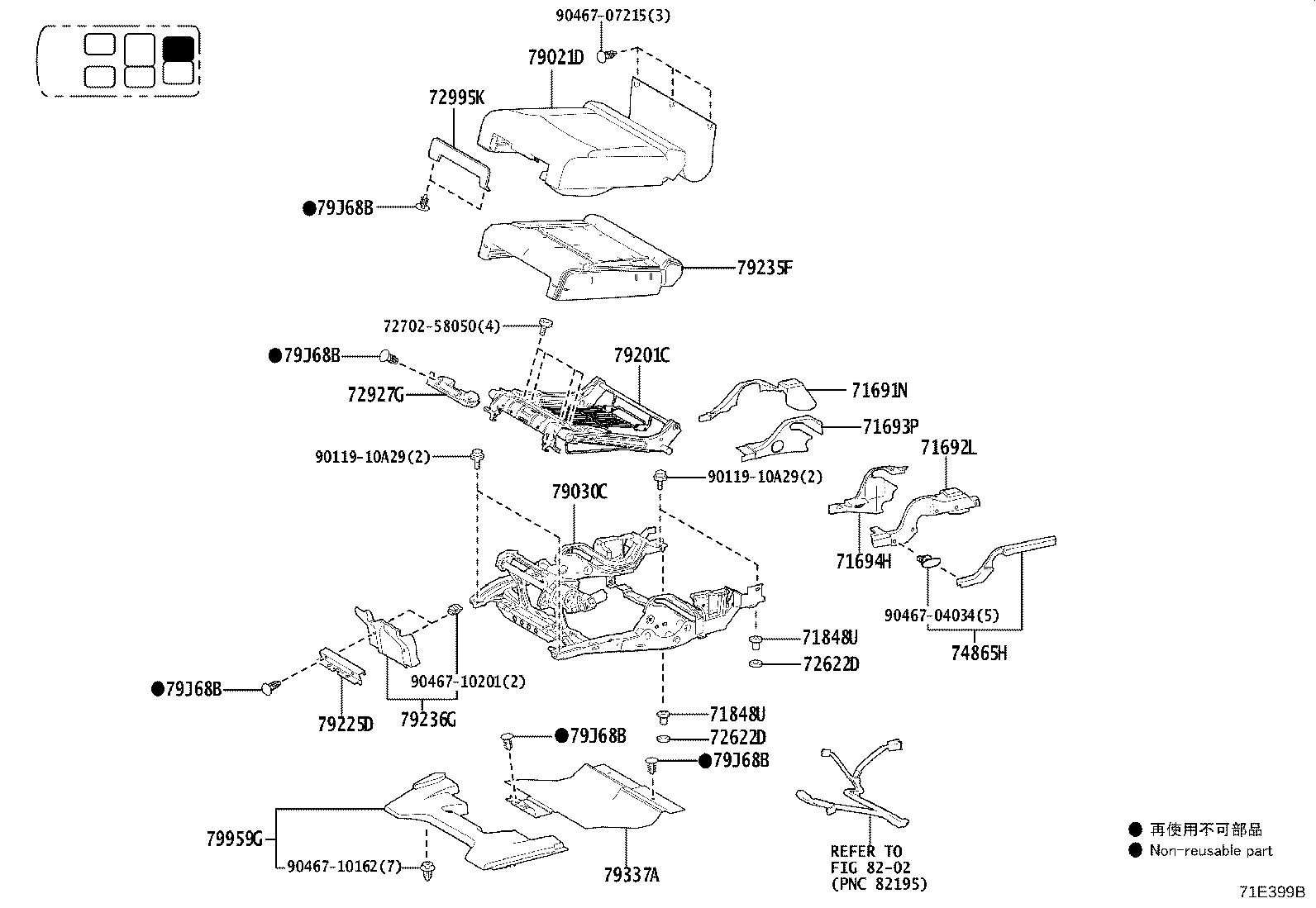

Exploded illustration 71E399B 71691N — COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.1 (2 parts) 79030C — LEG ASSY, REAR NO.2 SEAT, RH (2 parts) 9046704034 — not listed in this catalogue 71692L — COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.1 (2 parts) 79201C — FRAME SUB-ASSY, NO.2 SEAT CUSHION, RH (2 parts) 7270258050 — not listed in this catalogue 71693P — COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.1 (2 parts) 72622D — BUSH(FOR REAR NO.2 SEAT LEG) (2 parts) 72622D — BUSH(FOR REAR NO.2 SEAT LEG) (2 parts) 71694H — COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.1 (2 parts) 72927G — COVER, REAR NO.2 SEAT CUSHION UNDER, RH (2 parts) 72995K — COVER, REAR NO.2 SEAT CUSHION (2 parts) 74865H — COVER, CENTER PROTECTOR (2 parts) 79337A — CARPET, NO.2 SEAT CUSHION UNDER, RH (6 parts) 79021D — COVER SUB-ASSY, NO.2 SEAT CUSHION, RH (8 parts) 71848U — CAP, NO.2 SEAT ADJUSTER COVER, RH (2 parts) 71848U — CAP, NO.2 SEAT ADJUSTER COVER, RH (2 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79959G — COVER, NO.2 SEAT LEG, RH NO.1 (1 parts) 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046710162 — not listed in this catalogue 9046710201 — not listed in this catalogue 79225D — CARPET, REAR NO.2 SEAT CUSHION (2 parts) 79J68B — CLIP (3 parts) 79236G — COVER, NO.2 SEAT LEG, RH (2 parts) 8202 — not listed in this catalogue 79235F — PAD, NO.2 SEAT CUSHION, RH (2 parts)
71E399B · 24 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
46 parts on this figure
Part number Description Fitment Price
71691N — Cover, Rear Seat Cushion Hinge, Upper RH NO.1
71691-60160-C0 note Cover, Rear Seat Cushion Hinge, Upper RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,090
71691-60160-C0 note Cover, Rear Seat Cushion Hinge, Upper RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,090
71692L — Cover, Rear Seat Cushion Hinge, Upper LH NO.1
71692-60200-C0 note Cover, Rear Seat Cushion Hinge, Upper LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,280
71692-60200-C0 note Cover, Rear Seat Cushion Hinge, Upper LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,280
71693P — Cover, Rear Seat Cushion Hinge, Lower RH NO.1
71693-60170-C0 note Cover, Rear Seat Cushion Hinge, Lower RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥940
71693-60170-C0 note Cover, Rear Seat Cushion Hinge, Lower RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥940
71694H — Cover, Rear Seat Cushion Hinge, Lower LH NO.1
71694-60070-C0 note Cover, Rear Seat Cushion Hinge, Lower LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥990
71694-60070-C0 note Cover, Rear Seat Cushion Hinge, Lower LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥990
71848U — Cap, NO.2 Seat Adjuster Cover, RH
71848-33010 Cap, NO.2 Seat Adjuster Cover, RH
2021-12 → 2024-11 ended
VJA310 ¥100
71848-33010 note Cap, NO.2 Seat Adjuster Cover, RH
2021-12 → 2024-11 ended
VJA310 ¥100
72622D — Bush(FOR REAR NO.2 SEAT LEG)
72622-60040 Bush(FOR REAR NO.2 SEAT LEG)
2021-12 → 2024-11 ended
VJA310 ¥60
72622-60040 note Bush(FOR REAR NO.2 SEAT LEG)
2021-12 → 2024-11 ended
VJA310 ¥60
72927G — Cover, Rear NO.2 Seat Cushion Under, RH
72927-60200-C0 note Cover, Rear NO.2 Seat Cushion Under, RH
2021-12 → 2024-11 ended
VJA310 ¥1,090
72927-60200-C0 note Cover, Rear NO.2 Seat Cushion Under, RH
2021-12 → 2024-11 ended
VJA310 ¥1,090
72995K — Cover, Rear NO.2 Seat Cushion
72995-60430-C0 note Cover, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥940
72995-60430-C0 note Cover, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥940
74865H — Cover, Center Protector
74865-60010 Cover, Center Protector
2021-12 → 2024-11 ended
VJA310 ¥890
74865-60010 note Cover, Center Protector
2021-12 → 2024-11 ended
VJA310 ¥890
79021D — Cover Sub-assy, NO.2 Seat Cushion, RH
79031-60F20-A0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-A0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-C0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-D0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-D0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-E0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79031-60F20-E0 note Cover Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79030C — Leg Assy, Rear NO.2 Seat, RH
79030-60180 Leg Assy, Rear NO.2 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥34,800
79030-60180 note Leg Assy, Rear NO.2 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥34,800
79201C — Frame Sub-assy, NO.2 Seat Cushion, RH
79301-60090 Frame Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥7,300
79301-60090 note Frame Sub-assy, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥7,300
79225D — Carpet, Rear NO.2 Seat Cushion
79225-60050 Carpet, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥270
79225-60050 note Carpet, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥270
79235F — Pad, NO.2 Seat Cushion, RH
79335-60240 Pad, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥6,000
79335-60240 note Pad, NO.2 Seat Cushion, RH
2021-12 → 2024-11 ended
VJA310 ¥6,000
79236G — Cover, NO.2 Seat Leg, RH
79236-60130-C0 note Cover, NO.2 Seat Leg, RH
2021-12 → 2024-11 ended
VJA310 ¥1,600
79236-60130-C0 note Cover, NO.2 Seat Leg, RH
2021-12 → 2024-11 ended
VJA310 ¥1,600
79337A — Carpet, NO.2 Seat Cushion Under, RH
79337-60100 Carpet, NO.2 Seat Cushion Under, RH
2021-12 → 2023-11 ended
VJA310 ¥880
79337-60100 note Carpet, NO.2 Seat Cushion Under, RH
2021-12 → 2023-11 ended
VJA310 ¥880
79337-60101 Carpet, NO.2 Seat Cushion Under, RH
2023-12 → 2024-06 ended
VJA310 ¥880
79337-60101 note Carpet, NO.2 Seat Cushion Under, RH
2023-12 → 2024-06 ended
VJA310 ¥880
79337-60120 Carpet, NO.2 Seat Cushion Under, RH
2024-07 → 2024-11 ended
VJA310 ¥540
79337-60120 note Carpet, NO.2 Seat Cushion Under, RH
2024-07 → 2024-11 ended
VJA310 ¥540
79959G — Cover, NO.2 Seat Leg, RH NO.1
79374-60110-C0 note Cover, NO.2 Seat Leg, RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥3,080
79J68B — Clip
90467-05045-22 note Clip
2021-12 → 2023-12 ended
VJA310 ¥90
90467-05045-22 note Clip
2021-12 → 2023-12 ended
VJA310 ¥90
90467-05045-22 note Clip
2023-12 → 2024-11 ended
VJA310 ¥90
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
