Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

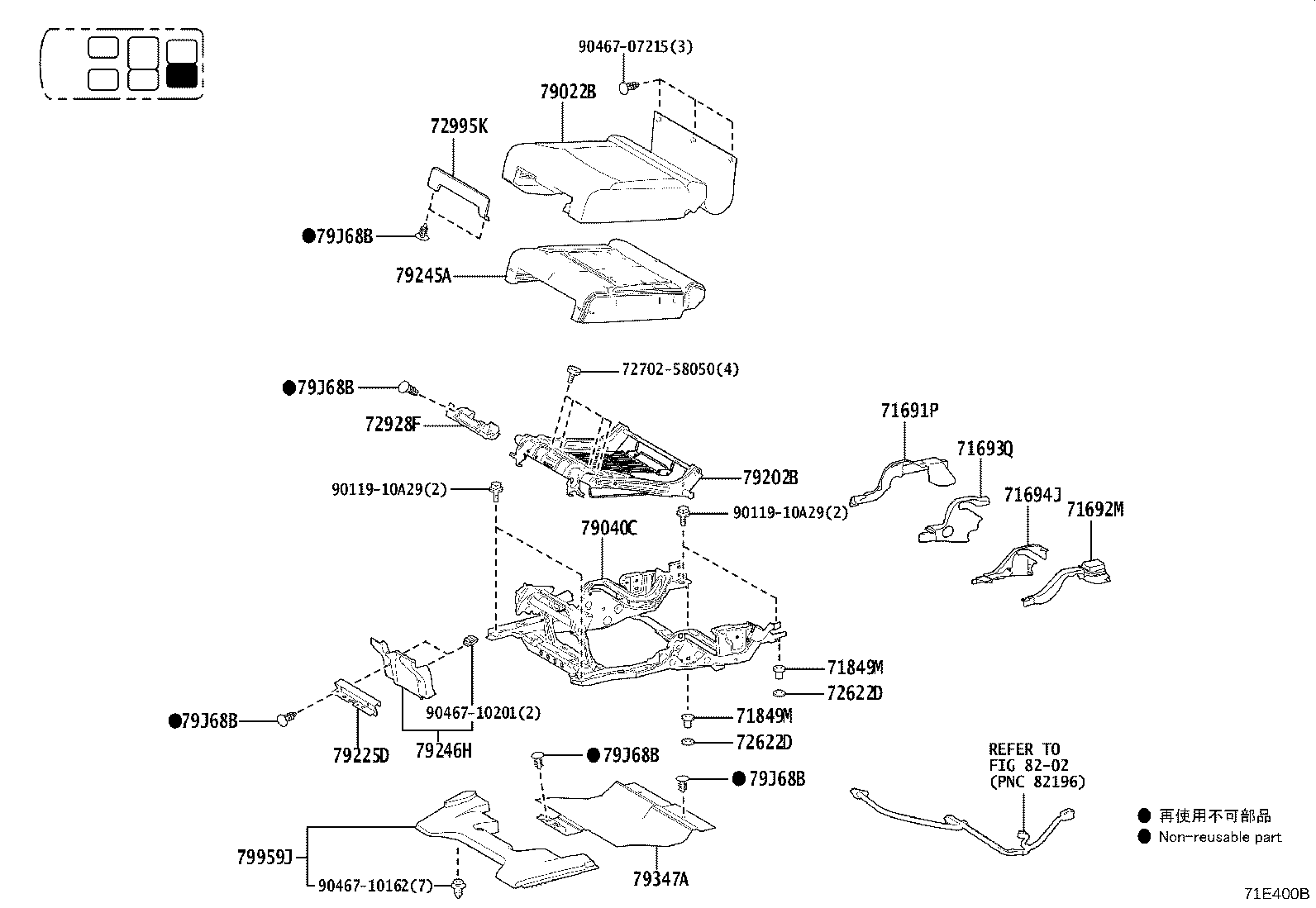

Exploded illustration 71E400B 71849M — CAP, NO.2 SEAT ADJUSTER COVER, LH (2 parts) 71849M — CAP, NO.2 SEAT ADJUSTER COVER, LH (2 parts) 79040C — LEG ASSY, REAR NO.2 SEAT, LH (2 parts) 72622D — BUSH(FOR REAR NO.2 SEAT LEG) (2 parts) 72622D — BUSH(FOR REAR NO.2 SEAT LEG) (2 parts) 79202B — FRAME SUB-ASSY, NO.2 SEAT CUSHION, LH (2 parts) 72995K — COVER, REAR NO.2 SEAT CUSHION (2 parts) 79347A — CARPET, NO.2 SEAT CUSHION UNDER, LH (6 parts) 79022B — COVER SUB-ASSY, NO.2 SEAT CUSHION, LH (8 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79J68B — CLIP (3 parts) 79959J — COVER, NO.2 SEAT LEG, LH NO.1 (1 parts) 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046710162 — not listed in this catalogue 7270258050 — not listed in this catalogue 72928F — COVER, REAR NO.2 SEAT CUSHION UNDER, LH (2 parts) 9046710201 — not listed in this catalogue 79225D — CARPET, REAR NO.2 SEAT CUSHION (2 parts) 79J68B — CLIP (3 parts) 79246H — COVER, NO.2 SEAT LEG, LH (2 parts) 71692M — COVER, REAR SEAT CUSHION HINGE, UPPER LH NO.2 (2 parts) 71694J — COVER, REAR SEAT CUSHION HINGE, LOWER LH NO.2 (2 parts) 71693Q — COVER, REAR SEAT CUSHION HINGE, LOWER RH NO.2 (2 parts) 71691P — COVER, REAR SEAT CUSHION HINGE, UPPER RH NO.2 (2 parts) 8202 — not listed in this catalogue 79245A — PAD, NO.2 SEAT CUSHION, LH (2 parts)
71E400B · 23 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
44 parts on this figure
Part number Description Fitment Price
71691P — Cover, Rear Seat Cushion Hinge, Upper RH NO.2
71691-60170-C0 note Cover, Rear Seat Cushion Hinge, Upper RH NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,280
71691-60170-C0 note Cover, Rear Seat Cushion Hinge, Upper RH NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,280
71692M — Cover, Rear Seat Cushion Hinge, Upper LH NO.2
71692-60210-C0 note Cover, Rear Seat Cushion Hinge, Upper LH NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,090
71692-60210-C0 note Cover, Rear Seat Cushion Hinge, Upper LH NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,090
71693Q — Cover, Rear Seat Cushion Hinge, Lower RH NO.2
71693-60190-C0 note Cover, Rear Seat Cushion Hinge, Lower RH NO.2
2021-12 → 2024-11 ended
VJA310 ¥990
71693-60190-C0 note Cover, Rear Seat Cushion Hinge, Lower RH NO.2
2021-12 → 2024-11 ended
VJA310 ¥990
71694J — Cover, Rear Seat Cushion Hinge, Lower LH NO.2
71694-60090-C0 note Cover, Rear Seat Cushion Hinge, Lower LH NO.2
2021-12 → 2024-11 ended
VJA310 ¥940
71694-60090-C0 note Cover, Rear Seat Cushion Hinge, Lower LH NO.2
2021-12 → 2024-11 ended
VJA310 ¥940
71849M — Cap, NO.2 Seat Adjuster Cover, LH
71848-33010 Cap, NO.2 Seat Adjuster Cover, LH
2021-12 → 2024-11 ended
VJA310 ¥100
71848-33010 note Cap, NO.2 Seat Adjuster Cover, LH
2021-12 → 2024-11 ended
VJA310 ¥100
72622D — Bush(FOR REAR NO.2 SEAT LEG)
72622-60040 Bush(FOR REAR NO.2 SEAT LEG)
2021-12 → 2024-11 ended
VJA310 ¥60
72622-60040 note Bush(FOR REAR NO.2 SEAT LEG)
2021-12 → 2024-11 ended
VJA310 ¥60
72928F — Cover, Rear NO.2 Seat Cushion Under, LH
72927-60200-C0 note Cover, Rear NO.2 Seat Cushion Under, LH
2021-12 → 2024-11 ended
VJA310 ¥1,090
72927-60200-C0 note Cover, Rear NO.2 Seat Cushion Under, LH
2021-12 → 2024-11 ended
VJA310 ¥1,090
72995K — Cover, Rear NO.2 Seat Cushion
72995-60430-C0 note Cover, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥940
72995-60430-C0 note Cover, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥940
79022B — Cover Sub-assy, NO.2 Seat Cushion, LH
79032-60E80-A0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-A0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-C0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-D0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-D0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-E0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79032-60E80-E0 note Cover Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
79040C — Leg Assy, Rear NO.2 Seat, LH
79040-60160 Leg Assy, Rear NO.2 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥34,800
79040-60160 note Leg Assy, Rear NO.2 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥34,800
79202B — Frame Sub-assy, NO.2 Seat Cushion, LH
79301-60090 Frame Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥7,300
79301-60090 note Frame Sub-assy, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥7,300
79225D — Carpet, Rear NO.2 Seat Cushion
79225-60050 Carpet, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥270
79225-60050 note Carpet, Rear NO.2 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥270
79245A — Pad, NO.2 Seat Cushion, LH
79335-60240 Pad, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥6,000
79335-60240 note Pad, NO.2 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥6,000
79246H — Cover, NO.2 Seat Leg, LH
79236-60130-C0 note Cover, NO.2 Seat Leg, LH
2021-12 → 2024-11 ended
VJA310 ¥1,600
79236-60130-C0 note Cover, NO.2 Seat Leg, LH
2021-12 → 2024-11 ended
VJA310 ¥1,600
79347A — Carpet, NO.2 Seat Cushion Under, LH
79337-60100 Carpet, NO.2 Seat Cushion Under, LH
2021-12 → 2023-11 ended
VJA310 ¥880
79337-60100 note Carpet, NO.2 Seat Cushion Under, LH
2021-12 → 2023-11 ended
VJA310 ¥880
79337-60101 Carpet, NO.2 Seat Cushion Under, LH
2023-12 → 2024-06 ended
VJA310 ¥880
79337-60101 note Carpet, NO.2 Seat Cushion Under, LH
2023-12 → 2024-06 ended
VJA310 ¥880
79337-60120 Carpet, NO.2 Seat Cushion Under, LH
2024-07 → 2024-11 ended
VJA310 ¥540
79337-60120 note Carpet, NO.2 Seat Cushion Under, LH
2024-07 → 2024-11 ended
VJA310 ¥540
79959J — Cover, NO.2 Seat Leg, LH NO.1
79384-60130-C0 note Cover, NO.2 Seat Leg, LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥2,920
79J68B — Clip
90467-05045-22 note Clip
2021-12 → 2023-12 ended
VJA310 ¥90
90467-05045-22 note Clip
2021-12 → 2023-12 ended
VJA310 ¥90
90467-05045-22 note Clip
2023-12 → 2024-11 ended
VJA310 ¥90
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
