Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

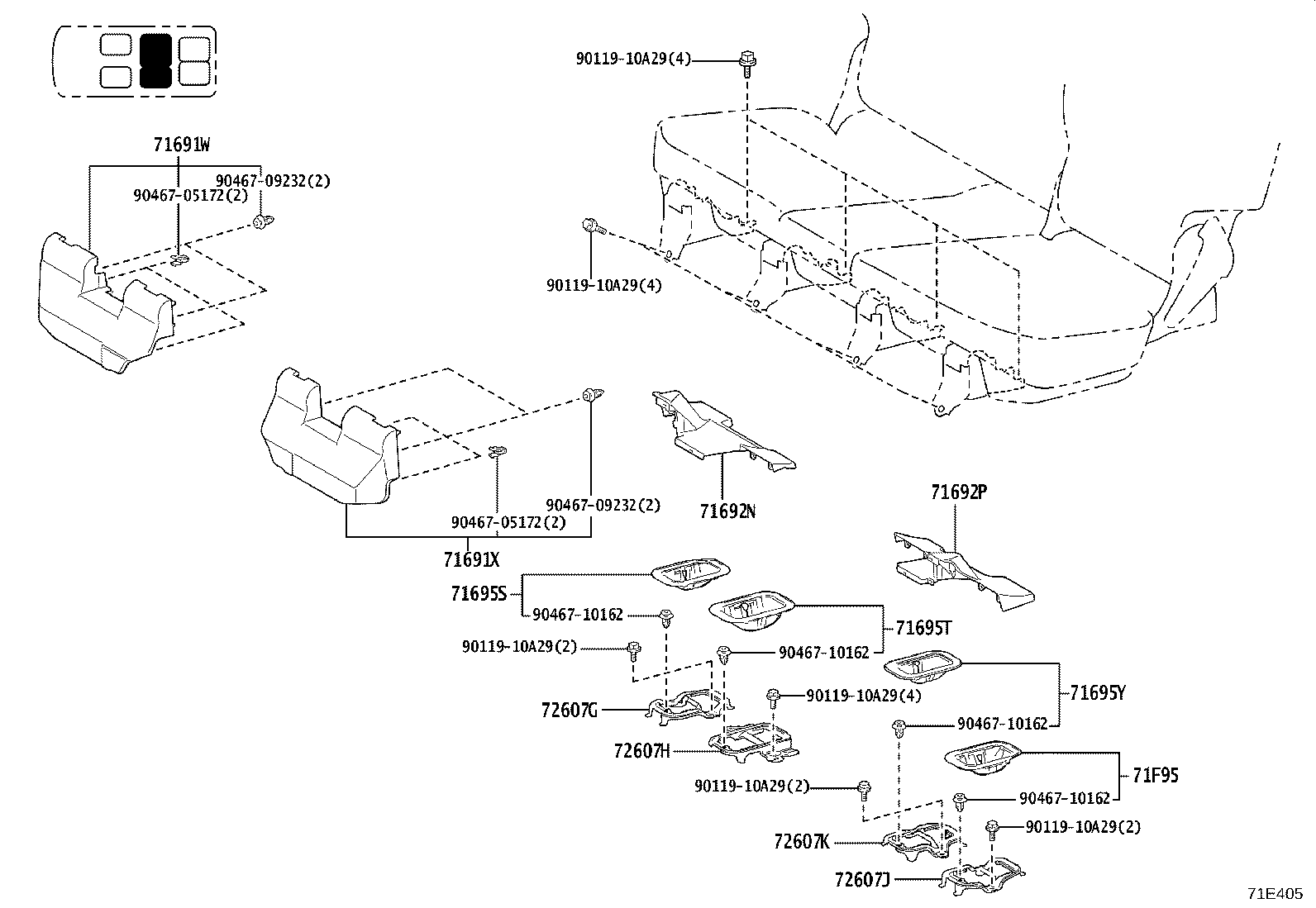

Exploded illustration 71E405 71691W — COVER, REAR SEAT CUSHION HINGE, NO.1 (1 parts) 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 9011910A29 — not listed in this catalogue 71691X — COVER, REAR SEAT CUSHION HINGE, NO.2 (1 parts) 9046705172 — not listed in this catalogue 71692N — COVER, REAR SEAT CUSHION HINGE, NO.3 (1 parts) 9046709232 — not listed in this catalogue 71692P — COVER, REAR SEAT CUSHION HINGE, NO.4 (1 parts) 9046710162 — not listed in this catalogue 9046710162 — not listed in this catalogue 9046710162 — not listed in this catalogue 9046710162 — not listed in this catalogue 71695S — PROTECTOR, REAR SEAT, NO.1 (1 parts) 71695T — PROTECTOR, REAR SEAT, NO.2 (1 parts) 71695Y — PROTECTOR, REAR SEAT, NO.3 (1 parts) 71F95 — PROTECTOR, REAR SEAT, NO.4 (1 parts) 72607G — STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.1 (1 parts) 72607H — STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.2 (1 parts) 72607J — STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.3 (1 parts) 72607K — STRIKER SUB-ASSY, REAR SEAT CUSHION LOCK, NO.4 (1 parts) 9046705172 — not listed in this catalogue 9046709232 — not listed in this catalogue
71E405 · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
12 parts on this figure
Part number Description Fitment Price
71691W — Cover, Rear Seat Cushion Hinge, NO.1
71691-60140-C0 note Cover, Rear Seat Cushion Hinge, NO.1
2021-12 → 2024-11 ended
VJA310 ¥3,140
71691X — Cover, Rear Seat Cushion Hinge, NO.2
71691-60150-C0 note Cover, Rear Seat Cushion Hinge, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,970
71692N — Cover, Rear Seat Cushion Hinge, NO.3
71692-60130-C0 note Cover, Rear Seat Cushion Hinge, NO.3
2021-12 → 2024-11 ended
VJA310 ¥2,890
71692P — Cover, Rear Seat Cushion Hinge, NO.4
71692-60140-C0 note Cover, Rear Seat Cushion Hinge, NO.4
2021-12 → 2024-11 ended
VJA310 ¥2,750
71695S — Protector, Rear Seat, NO.1
71695-60370-C0 note Protector, Rear Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,190
71695T — Protector, Rear Seat, NO.2
71695-60380-C0 note Protector, Rear Seat, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,460
71695Y — Protector, Rear Seat, NO.3
71695-60400-C0 note Protector, Rear Seat, NO.3
2021-12 → 2024-11 ended
VJA310 ¥1,190
71F95 — Protector, Rear Seat, NO.4
71695-60390-C0 note Protector, Rear Seat, NO.4
2021-12 → 2024-11 ended
VJA310 ¥1,170
72607G — Striker Sub-assy, Rear Seat Cushion Lock, NO.1
72607-60210 Striker Sub-assy, Rear Seat Cushion Lock, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,360
72607H — Striker Sub-assy, Rear Seat Cushion Lock, NO.2
72607-60220 Striker Sub-assy, Rear Seat Cushion Lock, NO.2
2021-12 → 2024-11 ended
VJA310 ¥2,940
72607J — Striker Sub-assy, Rear Seat Cushion Lock, NO.3
72607-60240 Striker Sub-assy, Rear Seat Cushion Lock, NO.3
2021-12 → 2024-11 ended
VJA310 ¥1,360
72607K — Striker Sub-assy, Rear Seat Cushion Lock, NO.4
72607-60230 Striker Sub-assy, Rear Seat Cushion Lock, NO.4
2021-12 → 2024-11 ended
VJA310 ¥1,600
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
