Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

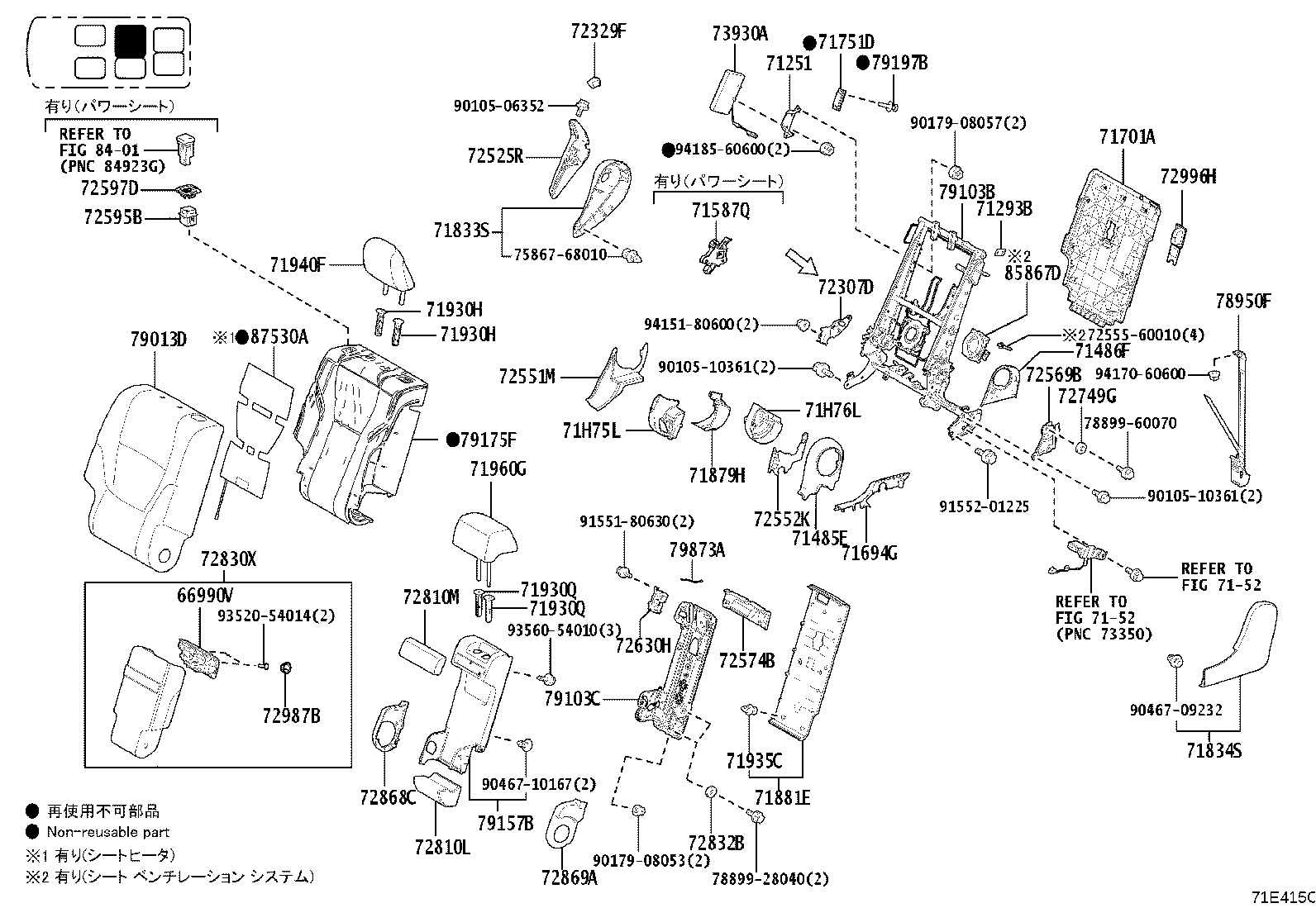

Exploded illustration 71E415C 72597D — BEZEL, RECLINING REMOTE CONTROL, RH (1 parts) 72595B — BASE, RECLINING REMOTE CONTROL, RH (1 parts) 87530A — HEATER ASSY, REAR NO.1 SEATBACK, RH (2 parts) 66990V — HOLDER ASSY, CUP (2 parts) 72987B — COVER, REAR SEAT CENTER ARMREST (1 parts) 72810L — ARMREST ASSY, NO.1 SEAT, NO.1 (4 parts) 9010506352 — not listed in this catalogue 71751D — HANGER, REAR SEAT COVER (1 parts) 72810M — ARMREST ASSY, NO.1 SEAT, NO.2 (8 parts) 9010510361 — not listed in this catalogue 71833S — COVER, REAR SEAT RECLINING, NO.1 RH (1 parts) 72307D — LINK SUB-ASSY, RECLINING CONTROL, RH NO.1 (1 parts) 72830X — ARMREST ASSY, REAR SEAT, CENTER (5 parts) 72832B — PLATE, REAR SEAT ARMREST (1 parts) 78950F — BAND ASSY, FOLD SEAT STOPPER, NO.1 (1 parts) 71834S — COVER, REAR SEAT RECLINING, NO.1 LH (1 parts) 72329F — COVER, REAR SEAT ADJUSTER BOLT (1 parts) 72868C — COVER, CENTER ARMREST HINGE, RH (1 parts) 79013D — COVER SUB-ASSY, NO.1 SEATBACK, RH (8 parts) 9017908053 — not listed in this catalogue 71251 — FRAME, REAR SEATBACK, RH (1 parts) 72869A — COVER, CENTER ARMREST HINGE, LH (1 parts) 72525R — HANDLE, RECLINING ADJUSTER RELEASE, RH (1 parts) 79103B — FRAME SUB-ASSY, NO.1 SEATBACK, RH (3 parts) 85867D — BLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR RH SEAT) (2 parts) 9017908057 — not listed in this catalogue 71293B — PLATE, REAR SEATBACK, UPPER (1 parts) 71881E — BOARD, REAR NO.1 SEATBACK, CENTER (1 parts) 79103C — FRAME SUB-ASSY, NO.1 SEATBACK, CENTER (1 parts) 71930H — SUPPORT ASSY, NO.1 SEAT HEADREST, RH (4 parts) 71930H — SUPPORT ASSY, NO.1 SEAT HEADREST, RH (4 parts) 72551M — COVER, RECLINING HINGE, RH NO.1(FOR RH SEAT) (1 parts) 71930Q — SUPPORT ASSY, REAR SEAT HEADREST (1 parts) 71930Q — SUPPORT ASSY, REAR SEAT HEADREST (1 parts) 72552K — COVER, RECLINING HINGE, LH NO.1(FOR RH SEAT) (1 parts) 72996H — COVER, REAR SEATBACK (2 parts) 79157B — COVER, NO.1 SEATBACK BOARD (1 parts) 71935C — CLIP (1 parts) 79175F — PAD, NO.1 SEATBACK, RH (3 parts) 9046710167 — not listed in this catalogue 9352054014 — not listed in this catalogue 72569B — PLATE, SEATBACK STOPPER (2 parts) 9155180630 — not listed in this catalogue 71940F — HEADREST ASSY, NO.1 SEAT, RH (7 parts) 9155201225 — not listed in this catalogue 71485E — COVER, REAR SEAT HINGE (1 parts) 72574B — LEVER, RECLINING CONTROL, RH (1 parts) 79873A — WIRE, FOLD SEATBACK (1 parts) 71486F — COVER, REAR SEAT HINGE, LH (1 parts) 71960G — HEADREST ASSY, REAR NO.1 SEAT, CENTER (4 parts) 9356054010 — not listed in this catalogue 72630H — LOCK ASSY, NO.1 SEATBACK (1 parts) 73930A — AIRBAG ASSY, REAR SEAT, RH (1 parts) 9415180600 — not listed in this catalogue 71694G — COVER, REAR SEAT CUSHION HINGE, INNER LH (1 parts) 71H76L — COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT) (1 parts) 9417060600 — not listed in this catalogue 7255560010 — not listed in this catalogue 71701A — BOARD SUB-ASSY, REAR SEATBACK, RH (1 parts) 9418560600 — not listed in this catalogue 72749G — SPACER, REAR SEAT RECLINING, RH (1 parts) 7889960070 — not listed in this catalogue 9010510361 — not listed in this catalogue 7889928040 — not listed in this catalogue 71879H — COVER, REAR SEAT RECLINING, INNER LH (1 parts) 71H75L — COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR RH SEAT) (1 parts) 7152 — not listed in this catalogue 7152 — not listed in this catalogue 79197B — RIVET (1 parts) 7586768010 — not listed in this catalogue 9046709232 — not listed in this catalogue 71587Q — PROTECTOR, REAR SEATBACK EDGE, RH (1 parts) 8401 — not listed in this catalogue
71E415C · 52 callouts, 21 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
92 parts on this figure
Part number Description Fitment Price
66990V — Holder Assy, Cup
66990-78010-C1 note Holder Assy, Cup
2021-12 → 2024-11 ended
VJA310 ¥4,950
66990-78010-E3 note Holder Assy, Cup
2021-12 → 2024-11 ended
VJA310 ¥4,950
71251 — Frame, Rear Seatback, RH
71251-60290 Frame, Rear Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥550
71293B — Plate, Rear Seatback, Upper
71293-60100 Plate, Rear Seatback, Upper
2021-12 → 2024-11 ended
VJA310 ¥60
71485E — Cover, Rear Seat Hinge
71485-60150-C0 note Cover, Rear Seat Hinge
2021-12 → 2024-11 ended
VJA310 ¥1,170
71486F — Cover, Rear Seat Hinge, LH
71486-60100-C0 note Cover, Rear Seat Hinge, LH
2021-12 → 2024-11 ended
VJA310 ¥590
71587Q — Protector, Rear Seatback Edge, RH
71587-60140 Protector, Rear Seatback Edge, RH
2021-12 → 2024-11 ended
VJA310 ¥5,700
71694G — Cover, Rear Seat Cushion Hinge, Inner LH
71694-60110-C0 note Cover, Rear Seat Cushion Hinge, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥710
71701A — Board Sub-assy, Rear Seatback, RH
71701-60280 Board Sub-assy, Rear Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥8,600
71751D — Hanger, Rear Seat Cover
71751-47050 Hanger, Rear Seat Cover
2021-12 → 2024-11 ended
VJA310 ¥530
71833S — Cover, Rear Seat Reclining, NO.1 RH
71833-60300-C0 note Cover, Rear Seat Reclining, NO.1 RH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71834S — Cover, Rear Seat Reclining, NO.1 LH
71834-60300-C0 note Cover, Rear Seat Reclining, NO.1 LH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71879H — Cover, Rear Seat Reclining, Inner LH
71878-60280 Cover, Rear Seat Reclining, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥810
71881E — Board, Rear NO.1 Seatback, Center
71087-60120-C2 note Board, Rear NO.1 Seatback, Center
2021-12 → 2024-11 ended
VJA310 ¥9,000
71930H — Support Assy, NO.1 Seat Headrest, RH
71930-28050-C0 note Support Assy, NO.1 Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, NO.1 Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, NO.1 Seat Headrest, RH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, NO.1 Seat Headrest, RH
2021-12 → 2023-03 ended
VJA310 ¥470
71930Q — Support Assy, Rear Seat Headrest
71345-60040-C0 note Support Assy, Rear Seat Headrest
2021-12 → 2024-11 ended
VJA310 ¥590
71935C — Clip
90467-10167 Clip
2021-12 → 2024-11 ended
VJA310 ¥90
71940F — Headrest Assy, NO.1 Seat, RH
71940-60B90-C1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60B90-E0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60C90-A0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-C2 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-D0 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥17,300
71940-60C90-D1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-E1 note Headrest Assy, NO.1 Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71960G — Headrest Assy, Rear NO.1 Seat, Center
71960-60820-A0 note Headrest Assy, Rear NO.1 Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥13,900
71960-60820-C1 note Headrest Assy, Rear NO.1 Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥13,900
71960-60820-D0 note Headrest Assy, Rear NO.1 Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥13,900
71960-60820-E1 note Headrest Assy, Rear NO.1 Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥13,900
71H75L — Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
71875-60290 Cover, Reclining Adjuster Inside, RH NO.1(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥660
71H76L — Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
71876-60320 Cover, Reclining Adjuster Inside, LH NO.1(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥1,090
72307D — Link Sub-assy, Reclining Control, RH NO.1
72307-60040 note Link Sub-assy, Reclining Control, RH NO.1
2021-12 → 2024-11 ended
VJA310 ¥550
72329F — Cover, Rear Seat Adjuster Bolt
72329-60130-C0 note Cover, Rear Seat Adjuster Bolt
2021-12 → 2024-11 ended
VJA310 ¥80
72525R — Handle, Reclining Adjuster Release, RH
72525-60150-C0 note Handle, Reclining Adjuster Release, RH
2021-12 → 2024-11 ended
VJA310 ¥1,980
72551M — Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
72551-60170-C0 note Cover, Reclining Hinge, RH NO.1(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥790
72552K — Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
72552-60160-C0 note Cover, Reclining Hinge, LH NO.1(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥590
72569B — Plate, Seatback Stopper
72569-60070 Plate, Seatback Stopper
2021-12 → 2022-11 ended
VJA310 ¥840
72569-60071 Plate, Seatback Stopper
2022-12 → 2024-11 ended
VJA310 ¥760
72574B — Lever, Reclining Control, RH
72574-60010-C0 note Lever, Reclining Control, RH
2021-12 → 2024-11 ended
VJA310 ¥2,730
72595B — Base, Reclining Remote Control, RH
72595-60020 Base, Reclining Remote Control, RH
2021-12 → 2024-11 ended
VJA310 ¥380
72597D — Bezel, Reclining Remote Control, RH
72597-60030 Bezel, Reclining Remote Control, RH
2021-12 → 2024-11 ended
VJA310 ¥300
72630H — Lock Assy, NO.1 Seatback
72630-60100 Lock Assy, NO.1 Seatback
2021-12 → 2024-11 ended
VJA310 ¥2,110
72749G — Spacer, Rear Seat Reclining, RH
72749-42010 Spacer, Rear Seat Reclining, RH
2021-12 → 2024-11 ended
VJA310 ¥70
72810L — Armrest Assy, NO.1 Seat, NO.1
72810-60240-A0 note Armrest Assy, NO.1 Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,200
72810-60240-C0 note Armrest Assy, NO.1 Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,200
72810-60240-D0 note Armrest Assy, NO.1 Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,200
72810-60240-E0 note Armrest Assy, NO.1 Seat, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,200
72810M — Armrest Assy, NO.1 Seat, NO.2
72810-60220-A0 note Armrest Assy, NO.1 Seat, NO.2
2023-05 → 2024-11 ended
VJA310 ¥5,400
72810-60220-C0 note Armrest Assy, NO.1 Seat, NO.2
2023-05 → 2024-11 ended
VJA310 ¥5,400
72810-60220-D0 note Armrest Assy, NO.1 Seat, NO.2
2023-05 → 2024-11 ended
VJA310 ¥5,400
72810-60220-E2 note Armrest Assy, NO.1 Seat, NO.2
2023-05 → 2024-11 ended
VJA310 ¥5,400
72810-60260-A0 note Armrest Assy, NO.1 Seat, NO.2
2021-12 → 2023-04 ended
VJA310 ¥7,500
72810-60260-C0 note Armrest Assy, NO.1 Seat, NO.2
2021-12 → 2023-04 ended
VJA310 ¥7,500
72810-60260-D0 note Armrest Assy, NO.1 Seat, NO.2
2021-12 → 2023-04 ended
VJA310 ¥7,500
72810-60260-E0 note Armrest Assy, NO.1 Seat, NO.2
2021-12 → 2023-04 ended
VJA310 ¥7,500
72830X — Armrest Assy, Rear Seat, Center
72830-60F60-A1 note Armrest Assy, Rear Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥58,700
72830-60F60-C2 note Armrest Assy, Rear Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥58,700
72830-60F60-C3 note Armrest Assy, Rear Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥58,700
72830-60F60-D1 note Armrest Assy, Rear Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥58,700
72830-60F60-E1 note Armrest Assy, Rear Seat, Center
2021-12 → 2024-11 ended
VJA310 ¥58,700
72832B — Plate, Rear Seat Armrest
72831-52010 Plate, Rear Seat Armrest
2021-12 → 2024-11 ended
VJA310 ¥100
72868C — Cover, Center Armrest Hinge, RH
72868-60020-C0 note Cover, Center Armrest Hinge, RH
2021-12 → 2024-11 ended
VJA310 ¥1,090
72869A — Cover, Center Armrest Hinge, LH
72869-60020-C0 note Cover, Center Armrest Hinge, LH
2021-12 → 2024-11 ended
VJA310 ¥1,250
72987B — Cover, Rear Seat Center Armrest
72987-78010 Cover, Rear Seat Center Armrest
2021-12 → 2024-11 ended
VJA310 ¥60
72996H — Cover, Rear Seatback
72996-48150-C1 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥650
72996-60190-C0 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥590
73930A — Airbag Assy, Rear Seat, RH
73930-60050 Airbag Assy, Rear Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥20,000
78950F — Band Assy, Fold Seat Stopper, NO.1
78950-60201-C0 note Band Assy, Fold Seat Stopper, NO.1
2021-12 → 2024-11 ended
VJA310 ¥3,440
79013D — Cover Sub-assy, NO.1 Seatback, RH
71077-60X30-A0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-D0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X30-E0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X40-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X40-D0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71077-60X50-C0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71077-60X50-E0 note Cover Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥69,600
79103B — Frame Sub-assy, NO.1 Seatback, RH
71017-60A70 note Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥32,200
71017-60B00 Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥32,200
71017-60B10 note Frame Sub-assy, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥36,100
79103C — Frame Sub-assy, NO.1 Seatback, Center
71305-60150 Frame Sub-assy, NO.1 Seatback, Center
2021-12 → 2024-11 ended
VJA310 ¥11,700
79157B — Cover, NO.1 Seatback Board
79157-60070-C0 note Cover, NO.1 Seatback Board
2021-12 → 2024-11 ended
VJA310 ¥5,400
79175F — Pad, NO.1 Seatback, RH
71507-60250 Pad, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71507-60310 note Pad, NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71507-60320 note Pad, NO.1 Seatback, RH
2021-12 → 2023-09 ended
VJA310 ¥12,200
79197B — Rivet
79197-47010 Rivet
2021-12 → 2024-11 ended
VJA310 ¥70
79873A — Wire, Fold Seatback
79873-60050 Wire, Fold Seatback
2021-12 → 2024-11 ended
VJA310 ¥120
85867D — Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
85867-42010 Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥8,900
85867-60050 note Blower, NO.1 Seatback Climate Control(FOR RH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥15,700
87530A — Heater Assy, Rear NO.1 Seatback, RH
87530-60030 note Heater Assy, Rear NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60070 Heater Assy, Rear NO.1 Seatback, RH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
