Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

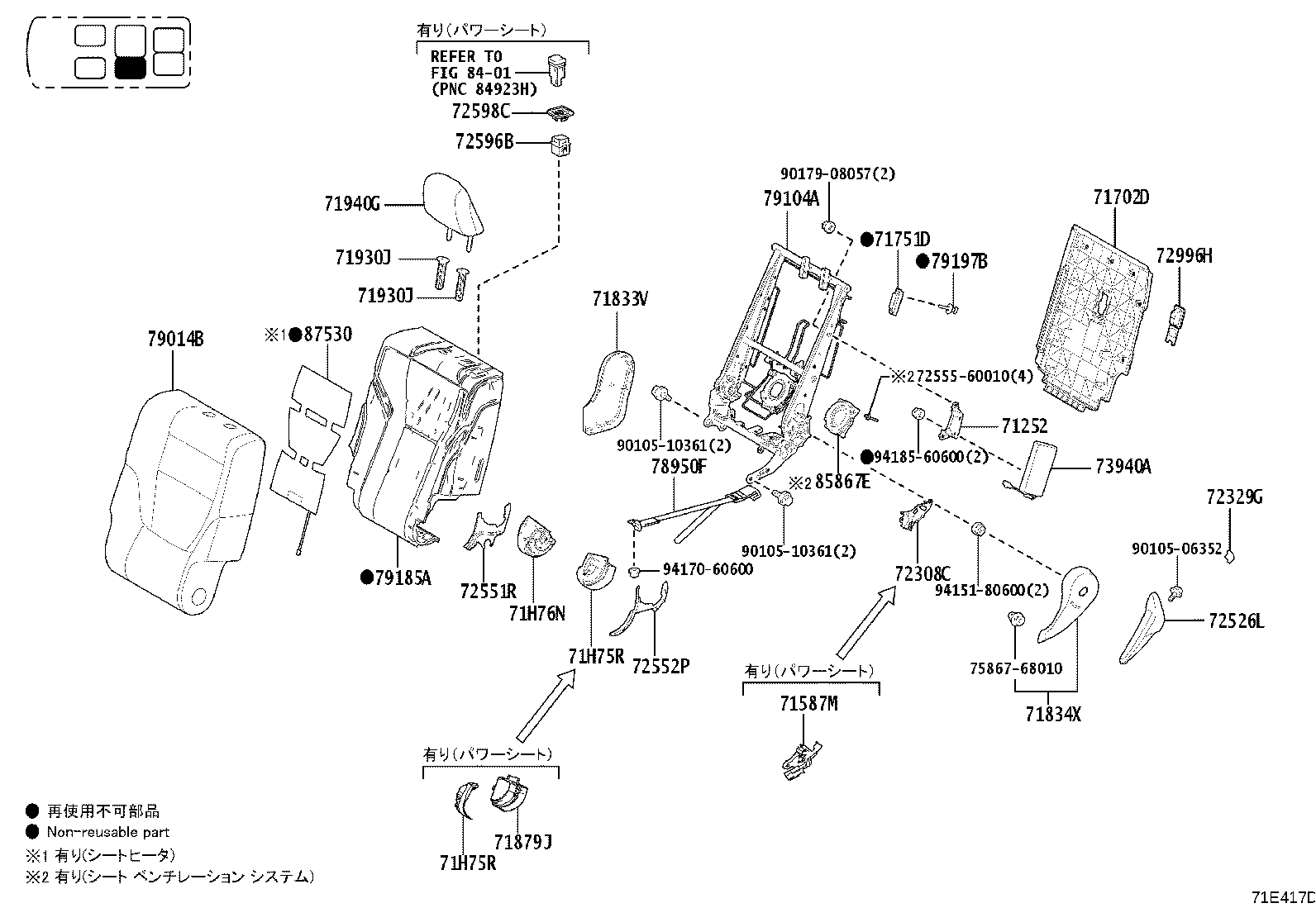

Exploded illustration 71E417D 87530 — HEATER ASSY, REAR NO.1 SEATBACK, LH (2 parts) 71702D — BOARD SUB-ASSY, REAR SEATBACK, LH (1 parts) 9010506352 — not listed in this catalogue 71751D — HANGER, REAR SEAT COVER (1 parts) 9010510361 — not listed in this catalogue 9010510361 — not listed in this catalogue 71833V — COVER, NO.1 SEAT RECLINING, NO.2 RH (1 parts) 72308C — LINK SUB-ASSY, RECLINING CONTROL, LH NO.1 (1 parts) 71834X — COVER, REAR SEAT RECLINING, NO.2 LH (1 parts) 72329G — COVER, REAR SEAT ADJUSTER BOLT, NO.2 (1 parts) 79014B — COVER SUB-ASSY, NO.1 SEATBACK, LH (8 parts) 71252 — FRAME, REAR SEATBACK, LH (1 parts) 9017908057 — not listed in this catalogue 72526L — HANDLE, RECLINING ADJUSTER RELEASE, LH (1 parts) 85867E — BLOWER, NO.1 SEATBACK CLIMATE CONTROL(FOR LH SEAT) (2 parts) 79104A — FRAME SUB-ASSY, NO.1 SEATBACK, LH (3 parts) 71930J — SUPPORT ASSY, NO.1 SEAT HEADREST, LH (4 parts) 71930J — SUPPORT ASSY, NO.1 SEAT HEADREST, LH (4 parts) 72996H — COVER, REAR SEATBACK (2 parts) 79185A — PAD, NO.1 SEATBACK, LH (3 parts) 71940G — HEADREST ASSY, NO.1 SEAT, LH (7 parts) 73940A — AIRBAG ASSY, REAR SEAT, LH (1 parts) 9415180600 — not listed in this catalogue 9418560600 — not listed in this catalogue 79197B — RIVET (1 parts) 7586768010 — not listed in this catalogue 71587M — PROTECTOR, REAR SEATBACK EDGE, LH (1 parts) 72598C — BEZEL, RECLINING REMOTE CONTROL, LH (1 parts) 72596B — BASE, RECLINING REMOTE CONTROL, LH (1 parts) 8401 — not listed in this catalogue 7255560010 — not listed in this catalogue 72551R — COVER, RECLINING HINGE, RH NO.1(FOR LH SEAT) (1 parts) 71H75R — COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT) (2 parts) 72552P — COVER, RECLINING HINGE, LH NO.1(FOR LH SEAT) (1 parts) 71H76N — COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR LH SEAT) (1 parts) 71H75R — COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT) (2 parts) 71879J — COVER, REAR NO.1 SEAT RECLINING, INNER LH (1 parts) 78950F — BAND ASSY, FOLD SEAT STOPPER, NO.1 (1 parts) 9417060600 — not listed in this catalogue
71E417D · 29 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
51 parts on this figure
Part number Description Fitment Price
71252 — Frame, Rear Seatback, LH
71252-60190 Frame, Rear Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥550
71587M — Protector, Rear Seatback Edge, LH
71587-60150 Protector, Rear Seatback Edge, LH
2021-12 → 2024-11 ended
VJA310 ¥5,700
71702D — Board Sub-assy, Rear Seatback, LH
71702-60270 Board Sub-assy, Rear Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥8,500
71751D — Hanger, Rear Seat Cover
71751-47050 Hanger, Rear Seat Cover
2021-12 → 2024-11 ended
VJA310 ¥530
71833V — Cover, NO.1 Seat Reclining, NO.2 RH
71833-60310-C0 note Cover, NO.1 Seat Reclining, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71834X — Cover, Rear Seat Reclining, NO.2 LH
71834-60320-C0 note Cover, Rear Seat Reclining, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥1,820
71879J — Cover, Rear NO.1 Seat Reclining, Inner LH
71879-60290-C0 note Cover, Rear NO.1 Seat Reclining, Inner LH
2021-12 → 2024-11 ended
VJA310 ¥840
71930J — Support Assy, NO.1 Seat Headrest, LH
71930-28050-C0 note Support Assy, NO.1 Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥770
71930-47050-C5 note Support Assy, NO.1 Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥770
71931-28060-C0 note Support Assy, NO.1 Seat Headrest, LH
2023-03 → 2024-11 ended
VJA310 ¥470
71931-47030-C4 note Support Assy, NO.1 Seat Headrest, LH
2021-12 → 2023-03 ended
VJA310 ¥470
71940G — Headrest Assy, NO.1 Seat, LH
71940-60B90-C1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60B90-E0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥21,300
71940-60C90-A0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-C2 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-D0 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥17,300
71940-60C90-D1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71940-60C90-E1 note Headrest Assy, NO.1 Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥19,100
71H75R — Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
71876-60290 note Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥1,090
71876-60360 Cover, Reclining Adjuster Inside, RH NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥660
71H76N — Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
71875-60340 Cover, Reclining Adjuster Inside, LH NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥1,090
72308C — Link Sub-assy, Reclining Control, LH NO.1
72308-60020 note Link Sub-assy, Reclining Control, LH NO.1
2021-12 → 2024-11 ended
VJA310 ¥550
72329G — Cover, Rear Seat Adjuster Bolt, NO.2
72329-60180-C0 note Cover, Rear Seat Adjuster Bolt, NO.2
2021-12 → 2024-11 ended
VJA310 ¥80
72526L — Handle, Reclining Adjuster Release, LH
72526-60110-C0 note Handle, Reclining Adjuster Release, LH
2021-12 → 2024-11 ended
VJA310 ¥1,980
72551R — Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
72551-60220-C0 note Cover, Reclining Hinge, RH NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥590
72552P — Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
72552-60120-C0 note Cover, Reclining Hinge, LH NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥790
72596B — Base, Reclining Remote Control, LH
72596-60020 Base, Reclining Remote Control, LH
2021-12 → 2024-11 ended
VJA310 ¥380
72598C — Bezel, Reclining Remote Control, LH
72597-60030 Bezel, Reclining Remote Control, LH
2021-12 → 2024-11 ended
VJA310 ¥300
72996H — Cover, Rear Seatback
72996-48150-C1 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥650
72996-60190-C0 note Cover, Rear Seatback
2021-12 → 2024-11 ended
VJA310 ¥590
73940A — Airbag Assy, Rear Seat, LH
73940-60050 Airbag Assy, Rear Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥20,000
78950F — Band Assy, Fold Seat Stopper, NO.1
78950-60201-C0 note Band Assy, Fold Seat Stopper, NO.1
2021-12 → 2024-11 ended
VJA310 ¥3,440
79014B — Cover Sub-assy, NO.1 Seatback, LH
71078-60W50-A0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-D0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W50-E0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W60-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71078-60W60-E0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥69,600
71078-60W70-C0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
71078-60W70-D0 note Cover Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥56,100
79104A — Frame Sub-assy, NO.1 Seatback, LH
71018-60740 note Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥22,000
71018-60760 Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥23,300
71018-60770 note Frame Sub-assy, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥36,100
79185A — Pad, NO.1 Seatback, LH
71508-60210 Pad, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
71508-60220 note Pad, NO.1 Seatback, LH
2021-12 → 2023-09 ended
VJA310 ¥12,200
71508-60260 note Pad, NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥9,000
79197B — Rivet
79197-47010 Rivet
2021-12 → 2024-11 ended
VJA310 ¥70
85867E — Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
85867-42010 Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥8,900
85867-60050 note Blower, NO.1 Seatback Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥15,700
87530 — Heater Assy, Rear NO.1 Seatback, LH
87530-60030 note Heater Assy, Rear NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87530-60080 Heater Assy, Rear NO.1 Seatback, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
