Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

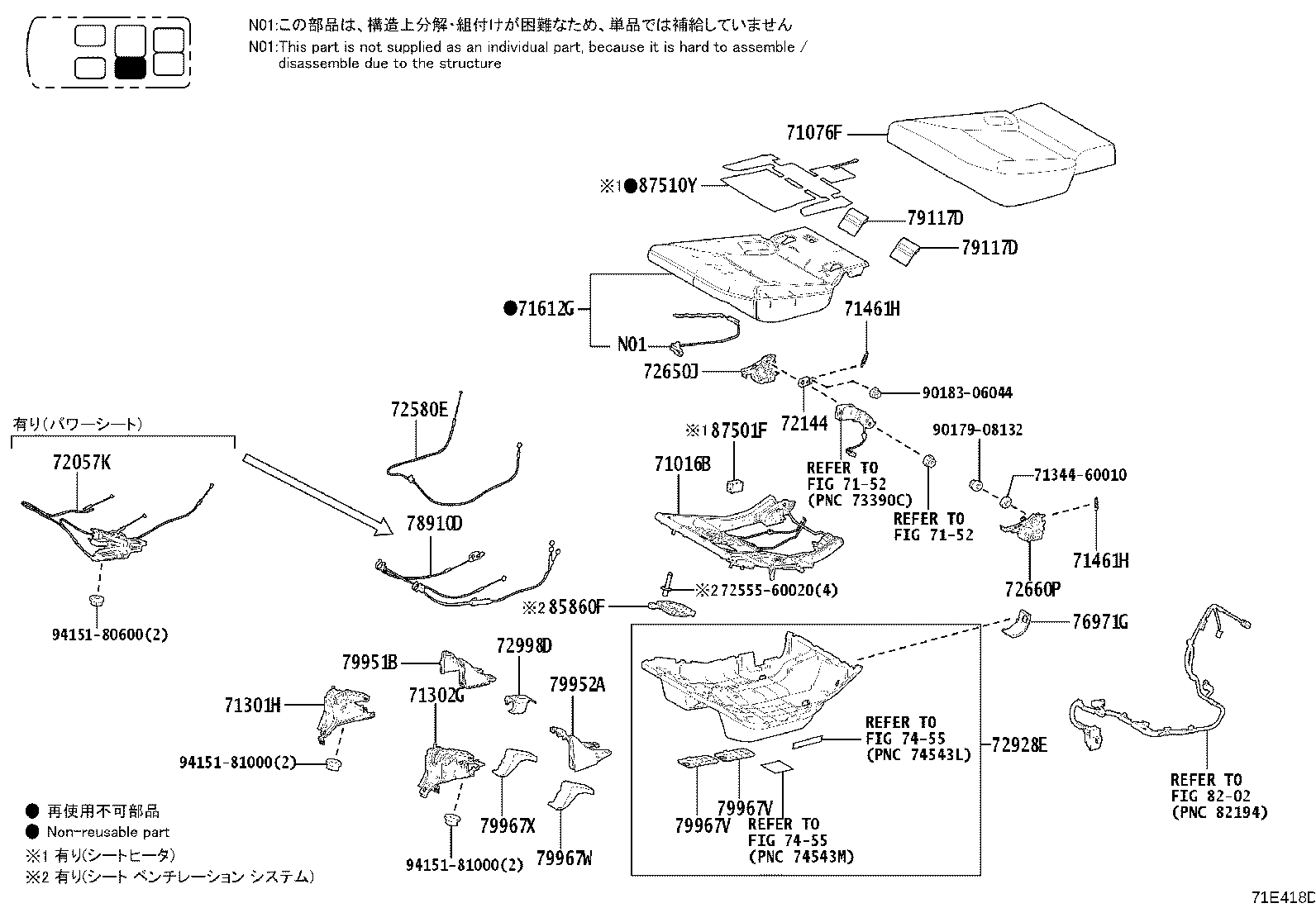

Exploded illustration 71E418D 7152 — not listed in this catalogue 7152 — not listed in this catalogue 87510Y — HEATER ASSY, REAR NO.1 SEAT CUSHION, LH (2 parts) 76971G — COVER, REAR UNDER (1 parts) 79967W — COVER, REAR NO.1 SEAT LEG SIDE, NO.4 (1 parts) 79967X — COVER, REAR NO.1 SEAT LEG SIDE, NO.5 (1 parts) 71016B — FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH (3 parts) 78910D — CABLE ASSY, FOLD SEAT LOCK CONTROL, NO.1(FOR LH SEAT) (1 parts) 72580E — CABLE ASSY, RECLINING ADJUSTING, LH (1 parts) 71076F — COVER SUB-ASSY, NO.1 SEAT CUSHION, LH (7 parts) 85860F — BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR LH SEAT) (2 parts) 9017908132 — not listed in this catalogue 9018306044 — not listed in this catalogue 71301H — HINGE SUB-ASSY, REAR NO.1 SEAT, RH(FOR LH SEAT) (1 parts) 79117D — CARPET, NO.1 SEAT CUSHION (1 parts) 79117D — CARPET, NO.1 SEAT CUSHION (1 parts) 87501F — CONTROL SUB-ASSY, SEAT HEATER, LH (2 parts) 71302G — HINGE SUB-ASSY, REAR NO.1 SEAT, LH(FOR LH SEAT) (1 parts) 72998D — COVER, REAR SEAT CUSHION, LH (2 parts) 71461H — SPRING, REAR SEAT CUSHION (1 parts) 71461H — SPRING, REAR SEAT CUSHION (1 parts) 79951B — COVER, NO.1 SEAT CUSHION, NO.1 (2 parts) 79952A — COVER, NO.1 SEAT CUSHION, NO.2 (2 parts) 9415181000 — not listed in this catalogue 9415181000 — not listed in this catalogue 71612G — PAD, REAR NO.1 SEAT CUSHION, LH (2 parts) 72650J — LOCK ASSY, REAR SEAT, RH (2 parts) 72660P — LOCK ASSY, REAR SEAT, LH (2 parts) 72144 — BRACKET, REAR SEAT TRACK, LOWER REAR LH (1 parts) 79967V — COVER, REAR NO.1 SEAT LEG SIDE, NO.3 (1 parts) 79967V — COVER, REAR NO.1 SEAT LEG SIDE, NO.3 (1 parts) 8202 — not listed in this catalogue 72928E — COVER, REAR SEAT CUSHION UNDER, LH (2 parts) 7455 — not listed in this catalogue 7455 — not listed in this catalogue 9415180600 — not listed in this catalogue 72057K — LEVER SUB-ASSY, REAR SEAT LOCK CONTROL(FOR LH SEAT) (1 parts) 7134460010 — not listed in this catalogue 7255560020 — not listed in this catalogue
71E418D · 27 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
71016B — Frame Sub-assy, NO.1 Seat Cushion, LH
71016-60400 note Frame Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥17,400
71016-60410 Frame Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥17,400
71016-60420 note Frame Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥52,900
71076F — Cover Sub-assy, NO.1 Seat Cushion, LH
71076-60T80-C0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
71076-60T80-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥51,000
71076-60T90-A0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥45,900
71076-60T90-C0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥45,900
71076-60T90-D0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥45,900
71076-60T90-D1 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥45,900
71076-60T90-E0 note Cover Sub-assy, NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥45,900
71301H — Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
71350-60510 Hinge Sub-assy, Rear NO.1 Seat, RH(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥6,600
71302G — Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
71360-60050 Hinge Sub-assy, Rear NO.1 Seat, LH(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥6,600
71461H — Spring, Rear Seat Cushion
71461-60050 Spring, Rear Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥50
71612G — Pad, Rear NO.1 Seat Cushion, LH
71504-60230 Pad, Rear NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥14,300
71504-60240 note Pad, Rear NO.1 Seat Cushion, LH
2021-12 → 2023-10 ended
VJA310 ¥10,000
72057K — Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
72058-60160 Lever Sub-assy, Rear Seat Lock Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥26,200
72144 — Bracket, Rear Seat Track, Lower Rear LH
72144-60050 Bracket, Rear Seat Track, Lower Rear LH
2021-12 → 2024-11 ended
VJA310 ¥200
72580E — Cable Assy, Reclining Adjusting, LH
72580-60030 Cable Assy, Reclining Adjusting, LH
2021-12 → 2024-11 ended
VJA310 ¥1,350
72650J — Lock Assy, Rear Seat, RH
72650-60220 note Lock Assy, Rear Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥3,600
72660-60260 note Lock Assy, Rear Seat, RH
2021-12 → 2024-11 ended
VJA310 ¥3,600
72660P — Lock Assy, Rear Seat, LH
72650-60250 note Lock Assy, Rear Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥3,600
72660-60270 note Lock Assy, Rear Seat, LH
2021-12 → 2024-11 ended
VJA310 ¥4,400
72928E — Cover, Rear Seat Cushion Under, LH
72928-60150-C0 note Cover, Rear Seat Cushion Under, LH
2021-12 → 2024-11 ended
VJA310 ¥4,570
72928-60160-C1 note Cover, Rear Seat Cushion Under, LH
2021-12 → 2024-11 ended
VJA310 ¥4,570
72998D — Cover, Rear Seat Cushion, LH
72998-60080-C0 note Cover, Rear Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥600
72998-60100-C0 note Cover, Rear Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥1,050
76971G — Cover, Rear Under
76971-60010-C0 note Cover, Rear Under
2021-12 → 2024-11 ended
VJA310 ¥500
78910D — Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
78920-60150 note Cable Assy, Fold Seat Lock Control, NO.1(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥2,170
79117D — Carpet, NO.1 Seat Cushion
71887-60090 Carpet, NO.1 Seat Cushion
2021-12 → 2024-11 ended
VJA310 ¥520
79951B — Cover, NO.1 Seat Cushion, NO.1
79951-60090-C0 note Cover, NO.1 Seat Cushion, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,360
79951-60150-C0 note Cover, NO.1 Seat Cushion, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,410
79952A — Cover, NO.1 Seat Cushion, NO.2
79952-60050-C0 note Cover, NO.1 Seat Cushion, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,490
79952-60110-C0 note Cover, NO.1 Seat Cushion, NO.2
2021-12 → 2024-11 ended
VJA310 ¥1,360
79967V — Cover, Rear NO.1 Seat Leg Side, NO.3
79965-60070-C0 note Cover, Rear NO.1 Seat Leg Side, NO.3
2021-12 → 2024-11 ended
VJA310 ¥590
79967W — Cover, Rear NO.1 Seat Leg Side, NO.4
79956-60140-C0 note Cover, Rear NO.1 Seat Leg Side, NO.4
2021-12 → 2024-11 ended
VJA310 ¥660
79967X — Cover, Rear NO.1 Seat Leg Side, NO.5
79956-60200-C0 note Cover, Rear NO.1 Seat Leg Side, NO.5
2021-12 → 2024-11 ended
VJA310 ¥620
85860F — Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
85802-60020 note Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥15,700
85860-42010 Blower Assy, NO.1 Seat Cushion Climate Control(FOR LH SEAT)
2021-12 → 2024-11 ended
VJA310 ¥9,200
87501F — Control Sub-assy, Seat Heater, LH
87501-30060 Control Sub-assy, Seat Heater, LH
2021-12 → 2024-11 ended
VJA310 ¥6,400
87501-33010 note Control Sub-assy, Seat Heater, LH
2021-12 → 2024-11 ended
VJA310 ¥4,330
87510Y — Heater Assy, Rear NO.1 Seat Cushion, LH
87510-60730 Heater Assy, Rear NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
87510-60780 note Heater Assy, Rear NO.1 Seat Cushion, LH
2021-12 → 2024-11 ended
VJA310 ¥7,500
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
