Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

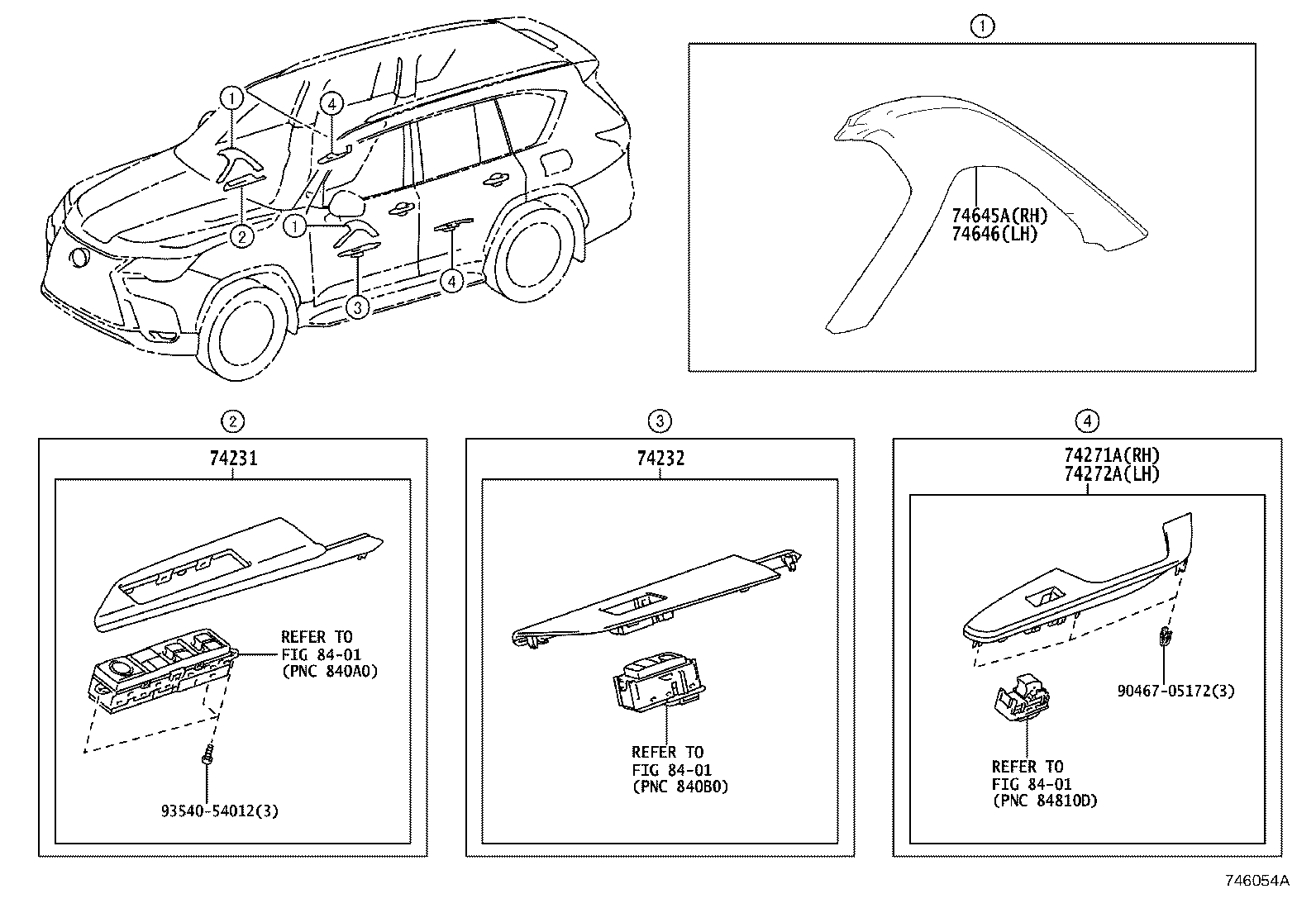

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74231 — Panel, Front Armrest Base, Upper RH | ||||
| 74231-60B10 |
Panel, Front Armrest Base, Upper RH
2021-12 → 2024-11
ended
|
VJA310 | ¥18,800 | |
| 74232 — Panel, Front Armrest Base, Upper LH | ||||
| 74232-60A40 |
Panel, Front Armrest Base, Upper LH
2021-12 → 2024-11
ended
|
VJA310 | ¥7,900 | |
| 74271A — Panel, Rear Door Armrest Base, Upper RH | ||||
| 74271-60470 |
Panel, Rear Door Armrest Base, Upper RH
2021-12 → 2024-11
ended
|
VJA310 | ¥7,500 | |
| 74272A — Panel, Rear Door Armrest Base, Upper LH | ||||
| 74272-60470 |
Panel, Rear Door Armrest Base, Upper LH
2021-12 → 2024-11
ended
|
VJA310 | ¥7,500 | |
| 74645A — Cover, Door Assist Grip, RH | ||||
| 74645-60070-C1 note |
Cover, Door Assist Grip, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74645-60070-E3 note |
Cover, Door Assist Grip, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74645-60070-E4 note |
Cover, Door Assist Grip, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74645-60070-E5 note |
Cover, Door Assist Grip, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74646 — Cover, Door Assist Grip, LH | ||||
| 74646-60070-C1 note |
Cover, Door Assist Grip, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74646-60070-E3 note |
Cover, Door Assist Grip, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74646-60070-E4 note |
Cover, Door Assist Grip, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
| 74646-60070-E5 note |
Cover, Door Assist Grip, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥5,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
