Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

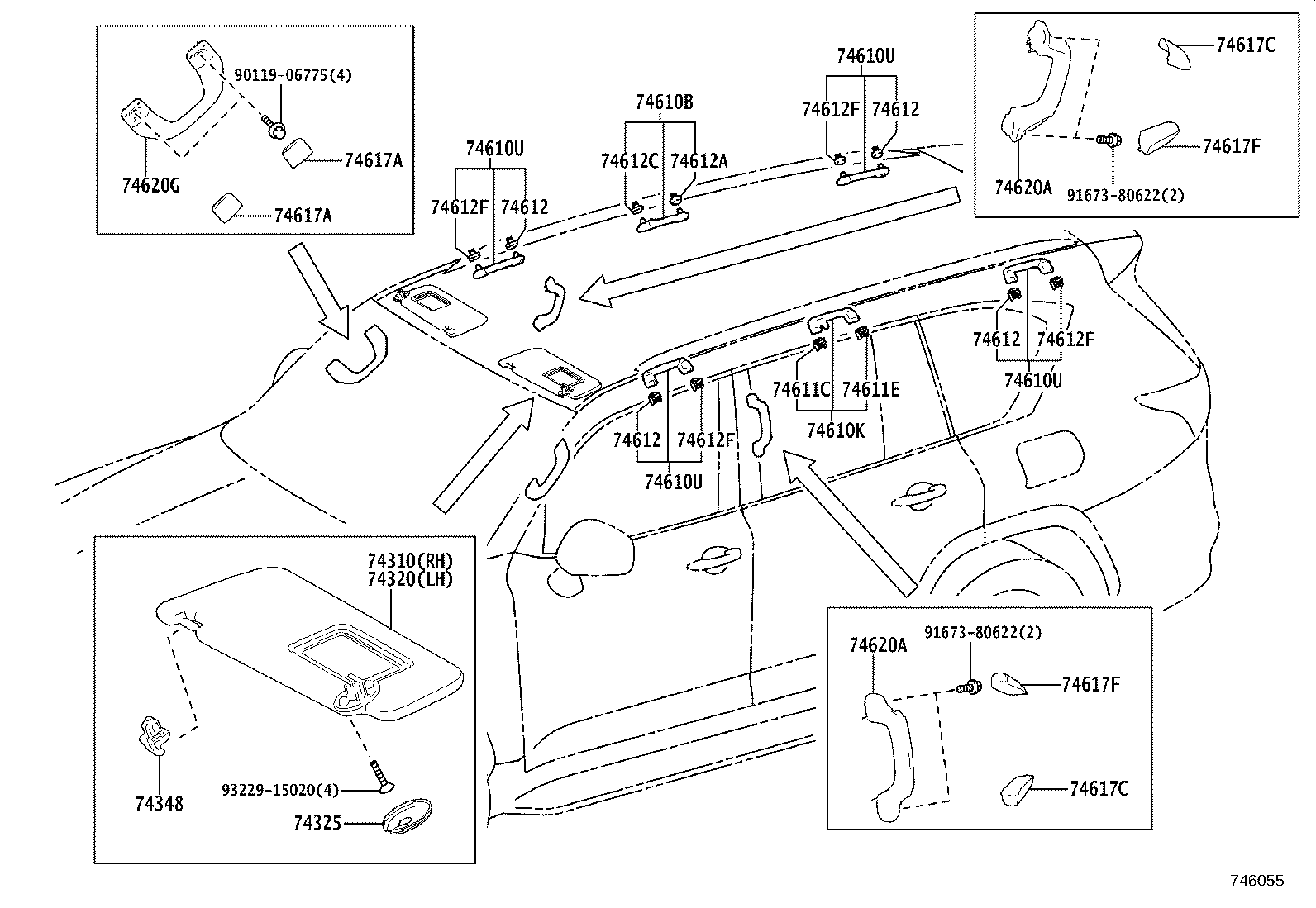

Exploded illustration 746055 74617C — PLUG, ASSIST GRIP (1 parts) 74617F — PLUG, ASSIST GRIP (1 parts) 74620G — GRIP ASSY, ASSIST, FRONT (1 parts) 74617A — PLUG, ASSIST GRIP (1 parts) 74617A — PLUG, ASSIST GRIP (1 parts) 74325 — COVER, VISOR BRACKET (1 parts) 74620A — GRIP ASSY, ASSIST, REAR (1 parts) 74617F — PLUG, ASSIST GRIP (1 parts) 74617C — PLUG, ASSIST GRIP (1 parts) 74620A — GRIP ASSY, ASSIST, REAR (1 parts) 9167380622 — not listed in this catalogue 9167380622 — not listed in this catalogue 9011906775 — not listed in this catalogue 9322915020 — not listed in this catalogue 74348 — HOLDER, VISOR (1 parts) 74310 — VISOR ASSY, RH (1 parts) 74320 — VISOR ASSY, LH (1 parts) 74610U — GRIP ASSY, ASSIST (1 parts) 74612F — COVER, ASSIST GRIP (1 parts) 74612 — COVER, ASSIST GRIP (1 parts) 74610K — GRIP ASSY, ASSIST, NO.2 LH (1 parts) 74611E — COVER, ASSIST GRIP, LH (1 parts) 74611C — COVER, ASSIST GRIP, LH (1 parts) 74610U — GRIP ASSY, ASSIST (1 parts) 74612F — COVER, ASSIST GRIP (1 parts) 74612 — COVER, ASSIST GRIP (1 parts) 74612F — COVER, ASSIST GRIP (1 parts) 74612 — COVER, ASSIST GRIP (1 parts) 74610U — GRIP ASSY, ASSIST (1 parts) 74612C — COVER, ASSIST GRIP, RH (1 parts) 74612A — COVER, ASSIST GRIP, RH (1 parts) 74610B — GRIP ASSY, ASSIST, NO.2 RH (1 parts) 74612F — COVER, ASSIST GRIP (1 parts) 74612 — COVER, ASSIST GRIP (1 parts) 74610U — GRIP ASSY, ASSIST (1 parts)
746055 · 31 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-60P90-C0 note Visor Assy, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
74320 — Visor Assy, LH
74320-60K80-C0 note Visor Assy, LH
2021-12 → 2024-11 ended
VJA310 ¥6,300
74325 — Cover, Visor Bracket
74317-60020-C2 note Cover, Visor Bracket
2021-12 → 2024-11 ended
VJA310 ¥220
74348 — Holder, Visor
74348-47010-C0 note Holder, Visor
2021-12 → 2024-11 ended
VJA310 ¥460
74610B — Grip Assy, Assist, NO.2 RH
74610-33190-C0 note Grip Assy, Assist, NO.2 RH
2021-12 → 2024-11 ended
VJA310 ¥1,420
74610K — Grip Assy, Assist, NO.2 LH
74610-33200-C0 note Grip Assy, Assist, NO.2 LH
2021-12 → 2024-11 ended
VJA310 ¥1,420
74610U — Grip Assy, Assist
74610-33150-C0 note Grip Assy, Assist
2021-12 → 2024-11 ended
VJA310 ¥1,420
74611C — Cover, Assist Grip, LH
74611-33020-C0 note Cover, Assist Grip, LH
2021-12 → 2024-11 ended
VJA310 ¥180
74611E — Cover, Assist Grip, LH
74612-33030-C0 note Cover, Assist Grip, LH
2021-12 → 2024-11 ended
VJA310 ¥180
74612 — Cover, Assist Grip
74611-33020-C0 note Cover, Assist Grip
2021-12 → 2024-11 ended
VJA310 ¥180
74612A — Cover, Assist Grip, RH
74611-33020-C0 note Cover, Assist Grip, RH
2021-12 → 2024-11 ended
VJA310 ¥180
74612C — Cover, Assist Grip, RH
74612-33030-C0 note Cover, Assist Grip, RH
2021-12 → 2024-11 ended
VJA310 ¥180
74612F — Cover, Assist Grip
74612-33030-C0 note Cover, Assist Grip
2021-12 → 2024-11 ended
VJA310 ¥180
74617A — Plug, Assist Grip
74617-60070-C0 note Plug, Assist Grip
2021-12 → 2024-11 ended
VJA310 ¥200
74617C — Plug, Assist Grip
74637-60050-C0 note Plug, Assist Grip
2021-12 → 2024-11 ended
VJA310 ¥330
74617F — Plug, Assist Grip
74638-60050-C0 note Plug, Assist Grip
2021-12 → 2024-11 ended
VJA310 ¥330
74620A — Grip Assy, Assist, Rear
74680-60040-C0 note Grip Assy, Assist, Rear
2021-12 → 2024-11 ended
VJA310 ¥1,850
74620G — Grip Assy, Assist, Front
74680-60030-C0 note Grip Assy, Assist, Front
2021-12 → 2024-11 ended
VJA310 ¥2,460
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
