Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

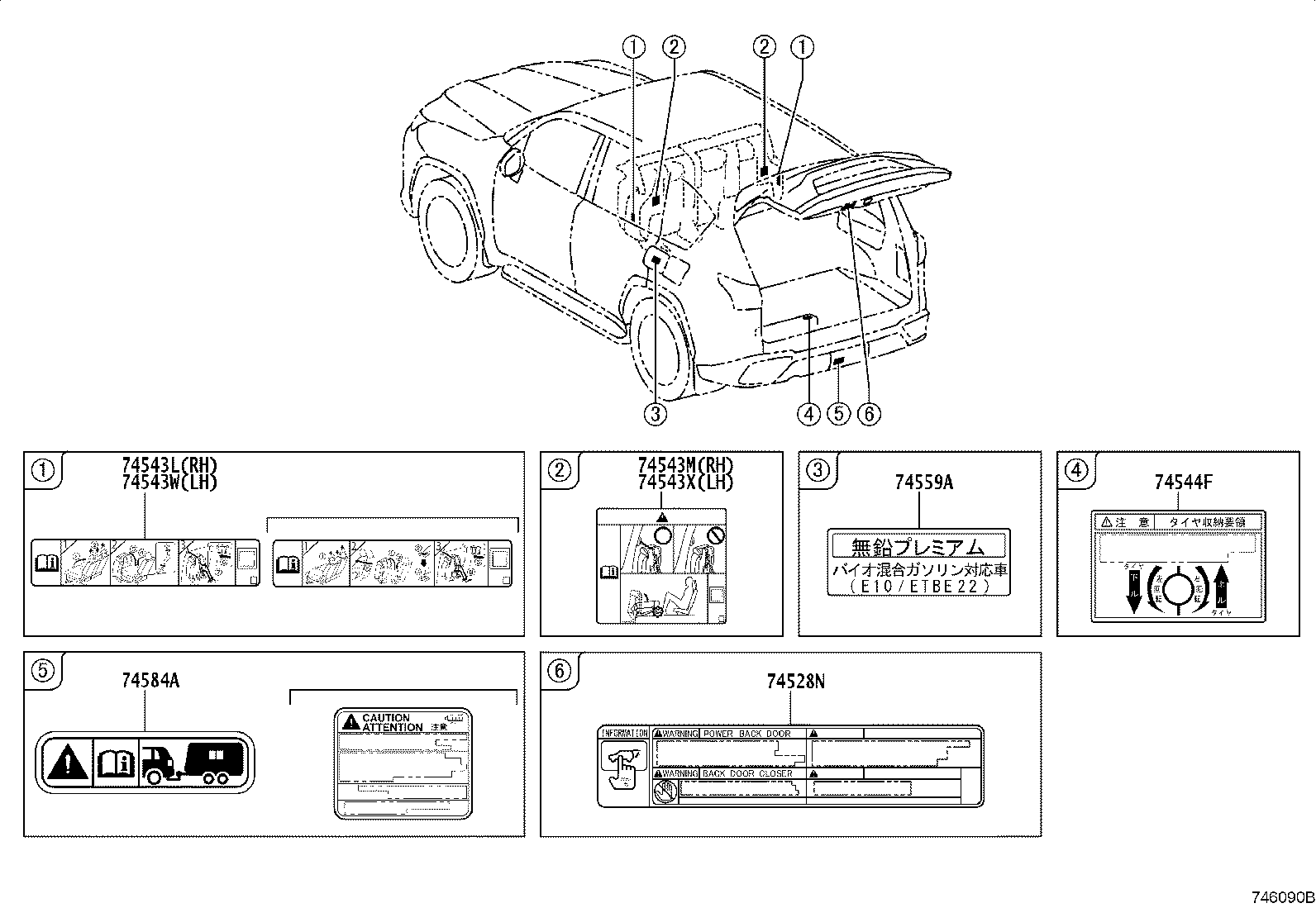

Exploded illustration 746090B 74544F — LABEL, TIRE CARRIER CAUTION (1 parts) 74528N — LABEL, BACK DOOR CAUTION, NO.2 (1 parts) 74559A — PLATE, FUEL CAUTION (1 parts) 74584A — LABEL, TOWING CAUTION (2 parts) 74543L — LABEL, REAR SEAT CAUTION, NO.1 (2 parts) 74543W — LABEL, REAR SEAT INFORMATION, NO.3 (2 parts) 74543X — LABEL, REAR SEAT INFORMATION, NO.4 (1 parts) 74543M — LABEL, REAR SEAT CAUTION, NO.2 (1 parts)
746090B · 8 callouts Full size ↗
11 parts on this figure
Part number Description Fitment Price
74528N — Label, Back Door Caution, NO.2
74528-78010 Label, Back Door Caution, NO.2
2021-12 → 2024-11 ended
VJA310 ¥200
74543L — Label, Rear Seat Caution, NO.1
74543-60590 note Label, Rear Seat Caution, NO.1
2021-12 → 2024-11 ended
VJA310 ¥200
74543-60620 Label, Rear Seat Caution, NO.1
2021-12 → 2024-11 ended
VJA310 ¥140
74543M — Label, Rear Seat Caution, NO.2
74543-60600 Label, Rear Seat Caution, NO.2
2021-12 → 2024-11 ended
VJA310 ¥280
74543W — Label, Rear Seat Information, NO.3
74543-60590 note Label, Rear Seat Information, NO.3
2021-12 → 2024-11 ended
VJA310 ¥200
74543-60620 Label, Rear Seat Information, NO.3
2021-12 → 2024-11 ended
VJA310 ¥140
74543X — Label, Rear Seat Information, NO.4
74543-60600 Label, Rear Seat Information, NO.4
2021-12 → 2024-11 ended
VJA310 ¥280
74544F — Label, Tire Carrier Caution
74544-60430 Label, Tire Carrier Caution
2021-12 → 2024-11 ended
VJA310 ¥110
74559A — Plate, Fuel Caution
74559-78010 Plate, Fuel Caution
2021-12 → 2024-11 ended
VJA310 ¥140
74584A — Label, Towing Caution
74584-60042 Label, Towing Caution
2021-12 → 2024-02 ended
VJA310 ¥160
74584-60060 Label, Towing Caution
2024-03 → 2024-11 ended
VJA310 ¥110
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
