Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

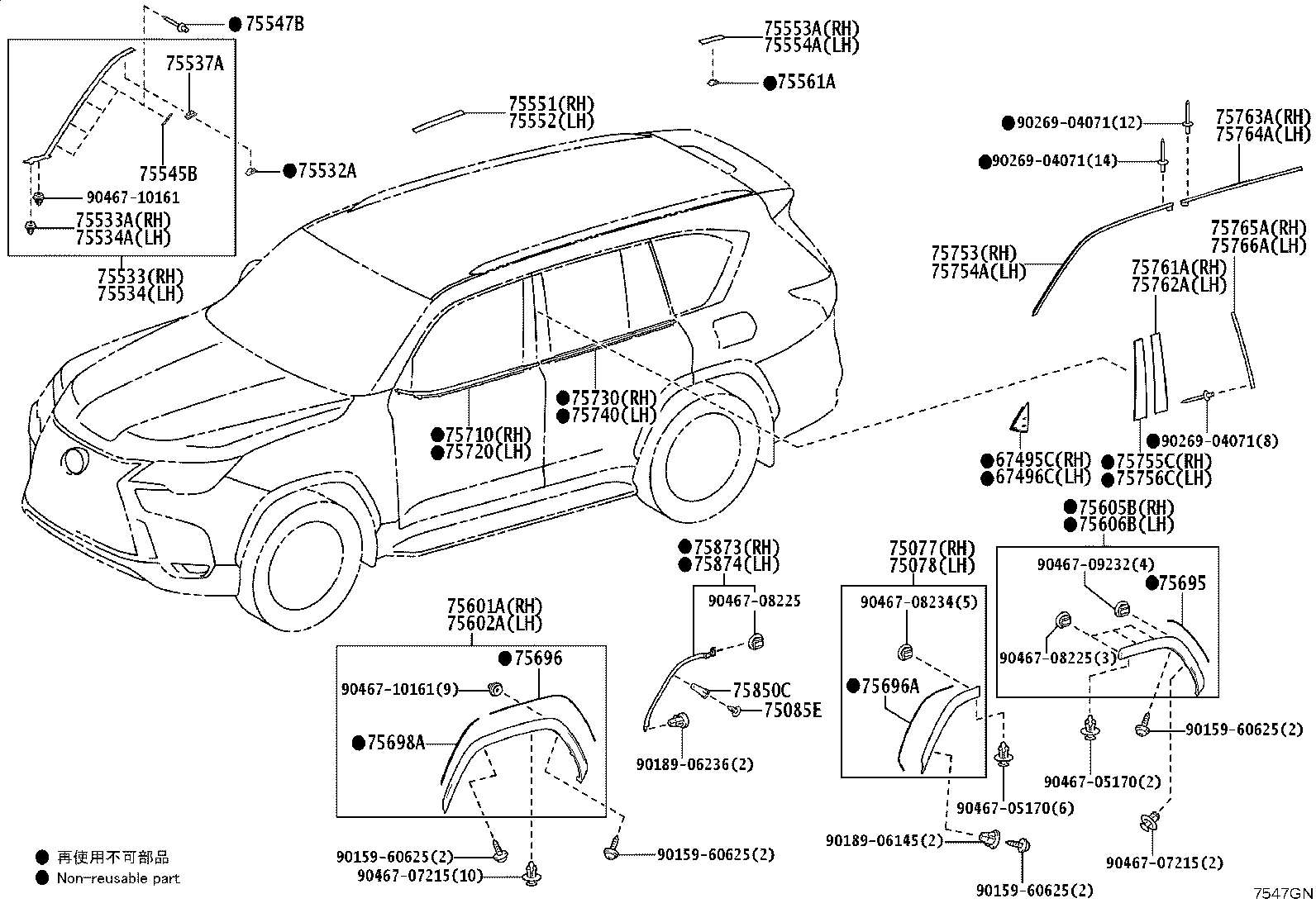

Exploded illustration 7547GN 75547B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 (1 parts) 75545B — CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1 (1 parts) 75077 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH (16 parts) 75078 — MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH (16 parts) 75605B — MOULDING SUB-ASSY, QUARTER OUTSIDE, RH (8 parts) 75606B — MOULDING SUB-ASSY, QUARTER OUTSIDE, LH (8 parts) 75533A — CLIP, WINDSHIELD SIDE MOULDING, RH (1 parts) 75534A — CLIP, WINDSHIELD SIDE MOULDING, LH (1 parts) 75551 — MOULDING, ROOF DRIP SIDE FINISH, RH (1 parts) 75552 — MOULDING, ROOF DRIP SIDE FINISH, LH (1 parts) 75553A — MOULDING, ROOF DRIP SIDE FINISH, REAR RH (1 parts) 75554A — MOULDING, ROOF DRIP SIDE FINISH, REAR LH (1 parts) 75561A — CLIP, ROOF DRIP SIDE FINISH MOULDING (1 parts) 9046710161 — not listed in this catalogue 9026904071 — not listed in this catalogue 9026904071 — not listed in this catalogue 9026904071 — not listed in this catalogue 9046708225 — not listed in this catalogue 9018906236 — not listed in this catalogue 9046708234 — not listed in this catalogue 9046708225 — not listed in this catalogue 9046709232 — not listed in this catalogue 9015960625 — not listed in this catalogue 9046707215 — not listed in this catalogue 9018906145 — not listed in this catalogue 9015960625 — not listed in this catalogue 9046705170 — not listed in this catalogue 9046705170 — not listed in this catalogue 67495C — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH (1 parts) 67496C — COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH (1 parts) 75873 — MOULDING, QUARTER PANEL WHEEL OPENING, RH (1 parts) 75874 — MOULDING, QUARTER PANEL WHEEL OPENING, LH (1 parts) 75085E — SCREW, NO.1 (1 parts) 75850C — GROMMET, NO.1 (1 parts) 75755C — MOULDING, FRONT DOOR WINDOW FRAME, REAR RH (1 parts) 75756C — MOULDING, FRONT DOOR WINDOW FRAME, REAR LH (1 parts) 75695 — PAD, QUARTER OUTSIDE MOULDING (1 parts) 75710 — MOULDING ASSY, FRONT DOOR BELT, RH (2 parts) 75720 — MOULDING ASSY, FRONT DOOR BELT, LH (2 parts) 75753 — MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH (2 parts) 75754A — MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH (2 parts) 75763A — MOULDING, REAR DOOR WINDOW FRAME, UPPER RH (2 parts) 75764A — MOULDING, REAR DOOR WINDOW FRAME, UPPER LH (2 parts) 75765A — MOULDING, REAR DOOR WINDOW FRAME, REAR RH (1 parts) 75766A — MOULDING, REAR DOOR WINDOW FRAME, REAR LH (1 parts) 75730 — MOULDING ASSY, REAR DOOR BELT, RH (2 parts) 75740 — MOULDING ASSY, REAR DOOR BELT, LH (2 parts) 75761A — MOULDING, REAR DOOR WINDOW FRAME, FRONT RH (1 parts) 75762A — MOULDING, REAR DOOR WINDOW FRAME, FRONT LH (1 parts) 75533 — MOULDING, WINDSHIELD, OUTSIDE RH (3 parts) 75534 — MOULDING, WINDSHIELD, OUTSIDE LH (3 parts) 75532A — CLIP, WINDSHIELD MOULDING SET (1 parts) 75696A — PAD, BODY OUTSIDE MOULDING (1 parts) 9015960625 — not listed in this catalogue 9015960625 — not listed in this catalogue 75696 — PAD, BODY OUTSIDE MOULDING, NO.1 (1 parts) 75698A — PAD, BODY OUTSIDE MOULDING, NO.3 (1 parts) 9046707215 — not listed in this catalogue 9046710161 — not listed in this catalogue 75601A — MOULDING SUB-ASSY, FRONT FENDER, RH (8 parts) 75602A — MOULDING SUB-ASSY, FRONT FENDER, LH (8 parts) 75537A — PAD, WINDSHIELD MOULDING (1 parts)
7547GN · 43 callouts, 19 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
113 parts on this figure
Part number Description Fitment Price
67495C — Cover, Front Door Front Lower Frame, Upper RH
67495-60040 Cover, Front Door Front Lower Frame, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥2,020
67496C — Cover, Front Door Front Lower Frame, Upper LH
67496-60040 Cover, Front Door Front Lower Frame, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥2,020
75077 — Moulding Sub-assy, Rear Door Outside Lower RH
75077-60090-A0 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-A1 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-B0 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-B1 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-C0 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-C0 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-C1 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60090-G0 note Moulding Sub-assy, Rear Door Outside Lower RH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75077-60091-A0 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-A1 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-B0 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-B1 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-C0 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-C0 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-C1 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75077-60091-G0 note Moulding Sub-assy, Rear Door Outside Lower RH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078 — Moulding Sub-assy, Rear Door Outside Lower LH
75078-60090-A0 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-A1 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-B0 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-B1 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-C0 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-C0 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-C1 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60090-G0 note Moulding Sub-assy, Rear Door Outside Lower LH
2021-12 → 2022-01 ended
VJA310 ¥4,550
75078-60091-A0 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-A1 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-B0 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-B1 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-C0 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-C0 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-C1 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75078-60091-G0 note Moulding Sub-assy, Rear Door Outside Lower LH
2022-01 → 2024-11 ended
VJA310 ¥4,140
75085E — Screw, NO.1
90159-40085 Screw, NO.1
2021-12 → 2024-11 ended
VJA310 ¥80
75532A — Clip, Windshield Moulding Set
75561-60050 Clip, Windshield Moulding Set
2021-12 → 2024-11 ended
VJA310 ¥180
75533 — Moulding, Windshield, Outside RH
75535-60030 Moulding, Windshield, Outside RH
2021-12 → 2022-09 ended
VJA310 ¥2,880
75535-60031 Moulding, Windshield, Outside RH
2022-10 → 2023-11 ended
VJA310 ¥2,880
75535-60032 Moulding, Windshield, Outside RH
2023-12 → 2024-11 ended
VJA310 ¥2,610
75533A — Clip, Windshield Side Moulding, RH
64479-77010 Clip, Windshield Side Moulding, RH
2021-12 → 2024-11 ended
VJA310 ¥80
75534 — Moulding, Windshield, Outside LH
75536-60020 Moulding, Windshield, Outside LH
2021-12 → 2022-09 ended
VJA310 ¥2,880
75536-60021 Moulding, Windshield, Outside LH
2022-10 → 2023-11 ended
VJA310 ¥2,880
75536-60022 Moulding, Windshield, Outside LH
2023-12 → 2024-11 ended
VJA310 ¥2,610
75534A — Clip, Windshield Side Moulding, LH
64479-77010 Clip, Windshield Side Moulding, LH
2021-12 → 2024-11 ended
VJA310 ¥80
75537A — Pad, Windshield Moulding
75537-60010 Pad, Windshield Moulding
2021-12 → 2024-11 ended
VJA310 ¥60
75545B — Clip, Windshield Outside Moulding, NO.1
75545-30170 Clip, Windshield Outside Moulding, NO.1
2021-12 → 2024-11 ended
VJA310 ¥210
75547B — Clip, Windshield Outside Moulding, NO.3
75547-51021 Clip, Windshield Outside Moulding, NO.3
2021-12 → 2024-11 ended
VJA310 ¥210
75551 — Moulding, Roof Drip Side Finish, RH
75551-60140 note Moulding, Roof Drip Side Finish, RH
2021-12 → 2024-11 ended
VJA310 ¥1,660
75552 — Moulding, Roof Drip Side Finish, LH
75551-60140 note Moulding, Roof Drip Side Finish, LH
2021-12 → 2024-11 ended
VJA310 ¥1,660
75553A — Moulding, Roof Drip Side Finish, Rear RH
75553-60080 Moulding, Roof Drip Side Finish, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥1,570
75554A — Moulding, Roof Drip Side Finish, Rear LH
75554-60090 Moulding, Roof Drip Side Finish, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥1,570
75561A — Clip, Roof Drip Side Finish Moulding
75561-60050 Clip, Roof Drip Side Finish Moulding
2021-12 → 2024-11 ended
VJA310 ¥180
75601A — Moulding Sub-assy, Front Fender, RH
75601-60070-A0 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-A1 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-B0 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-B1 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-C0 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-C0 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-C1 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75601-60070-G0 note Moulding Sub-assy, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602A — Moulding Sub-assy, Front Fender, LH
75602-60070-A0 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-A1 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-B0 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-B1 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-C0 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-C0 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-C1 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75602-60070-G0 note Moulding Sub-assy, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥11,100
75605B — Moulding Sub-assy, Quarter Outside, RH
75605-60130-A0 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-A1 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-B0 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-B1 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-C0 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-C0 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-C1 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75605-60130-G0 note Moulding Sub-assy, Quarter Outside, RH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606B — Moulding Sub-assy, Quarter Outside, LH
75606-60130-A0 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-A1 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-B0 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-B1 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-C0 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-C0 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-C1 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75606-60130-G0 note Moulding Sub-assy, Quarter Outside, LH
2021-12 → 2024-11 ended
VJA310 ¥6,100
75695 — Pad, Quarter Outside Moulding
75695-60020 Pad, Quarter Outside Moulding
2021-12 → 2024-11 ended
VJA310 ¥430
75696 — Pad, Body Outside Moulding, NO.1
75365-60020 Pad, Body Outside Moulding, NO.1
2021-12 → 2024-11 ended
VJA310 ¥430
75696A — Pad, Body Outside Moulding
75767-60020 Pad, Body Outside Moulding
2021-12 → 2024-11 ended
VJA310 ¥430
75698A — Pad, Body Outside Moulding, NO.3
75365-60040 Pad, Body Outside Moulding, NO.3
2021-12 → 2024-11 ended
VJA310 ¥430
75710 — Moulding Assy, Front Door Belt, RH
75710-60110 Moulding Assy, Front Door Belt, RH
2021-12 → 2024-11 ended
VJA310 ¥6,900
75710-60130 note Moulding Assy, Front Door Belt, RH
2021-12 → 2024-11 ended
VJA310 ¥5,400
75720 — Moulding Assy, Front Door Belt, LH
75720-60110 Moulding Assy, Front Door Belt, LH
2021-12 → 2024-11 ended
VJA310 ¥6,900
75720-60130 note Moulding Assy, Front Door Belt, LH
2021-12 → 2024-11 ended
VJA310 ¥5,400
75730 — Moulding Assy, Rear Door Belt, RH
75730-60110 Moulding Assy, Rear Door Belt, RH
2021-12 → 2024-11 ended
VJA310 ¥4,300
75730-60120 note Moulding Assy, Rear Door Belt, RH
2021-12 → 2024-11 ended
VJA310 ¥5,400
75740 — Moulding Assy, Rear Door Belt, LH
75740-60110 Moulding Assy, Rear Door Belt, LH
2021-12 → 2024-11 ended
VJA310 ¥4,300
75740-60120 note Moulding Assy, Rear Door Belt, LH
2021-12 → 2024-11 ended
VJA310 ¥5,400
75753 — Moulding, Front Door Window Frame, Upper RH
75753-60020 note Moulding, Front Door Window Frame, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥2,960
75753-60030 note Moulding, Front Door Window Frame, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥3,690
75754A — Moulding, Front Door Window Frame, Upper LH
75754-60020 note Moulding, Front Door Window Frame, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥2,960
75754-60030 note Moulding, Front Door Window Frame, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥3,690
75755C — Moulding, Front Door Window Frame, Rear RH
75755-60100 note Moulding, Front Door Window Frame, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥3,360
75756C — Moulding, Front Door Window Frame, Rear LH
75756-60100 note Moulding, Front Door Window Frame, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥3,360
75761A — Moulding, Rear Door Window Frame, Front RH
75761-60100 note Moulding, Rear Door Window Frame, Front RH
2021-12 → 2024-11 ended
VJA310 ¥2,580
75762A — Moulding, Rear Door Window Frame, Front LH
75762-60100 note Moulding, Rear Door Window Frame, Front LH
2021-12 → 2024-11 ended
VJA310 ¥2,580
75763A — Moulding, Rear Door Window Frame, Upper RH
75763-60020 Moulding, Rear Door Window Frame, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥2,400
75763-60030 note Moulding, Rear Door Window Frame, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥3,000
75764A — Moulding, Rear Door Window Frame, Upper LH
75764-60020 Moulding, Rear Door Window Frame, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥2,400
75764-60030 note Moulding, Rear Door Window Frame, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥3,000
75765A — Moulding, Rear Door Window Frame, Rear RH
75765-60050 Moulding, Rear Door Window Frame, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥1,740
75766A — Moulding, Rear Door Window Frame, Rear LH
75766-60050 Moulding, Rear Door Window Frame, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥1,740
75850C — Grommet, NO.1
90189-04231 Grommet, NO.1
2021-12 → 2024-11 ended
VJA310 ¥70
75873 — Moulding, Quarter Panel Wheel Opening, RH
75873-60040 Moulding, Quarter Panel Wheel Opening, RH
2021-12 → 2024-11 ended
VJA310 ¥1,480
75874 — Moulding, Quarter Panel Wheel Opening, LH
75874-60040 Moulding, Quarter Panel Wheel Opening, LH
2021-12 → 2024-11 ended
VJA310 ¥1,480
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
