Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

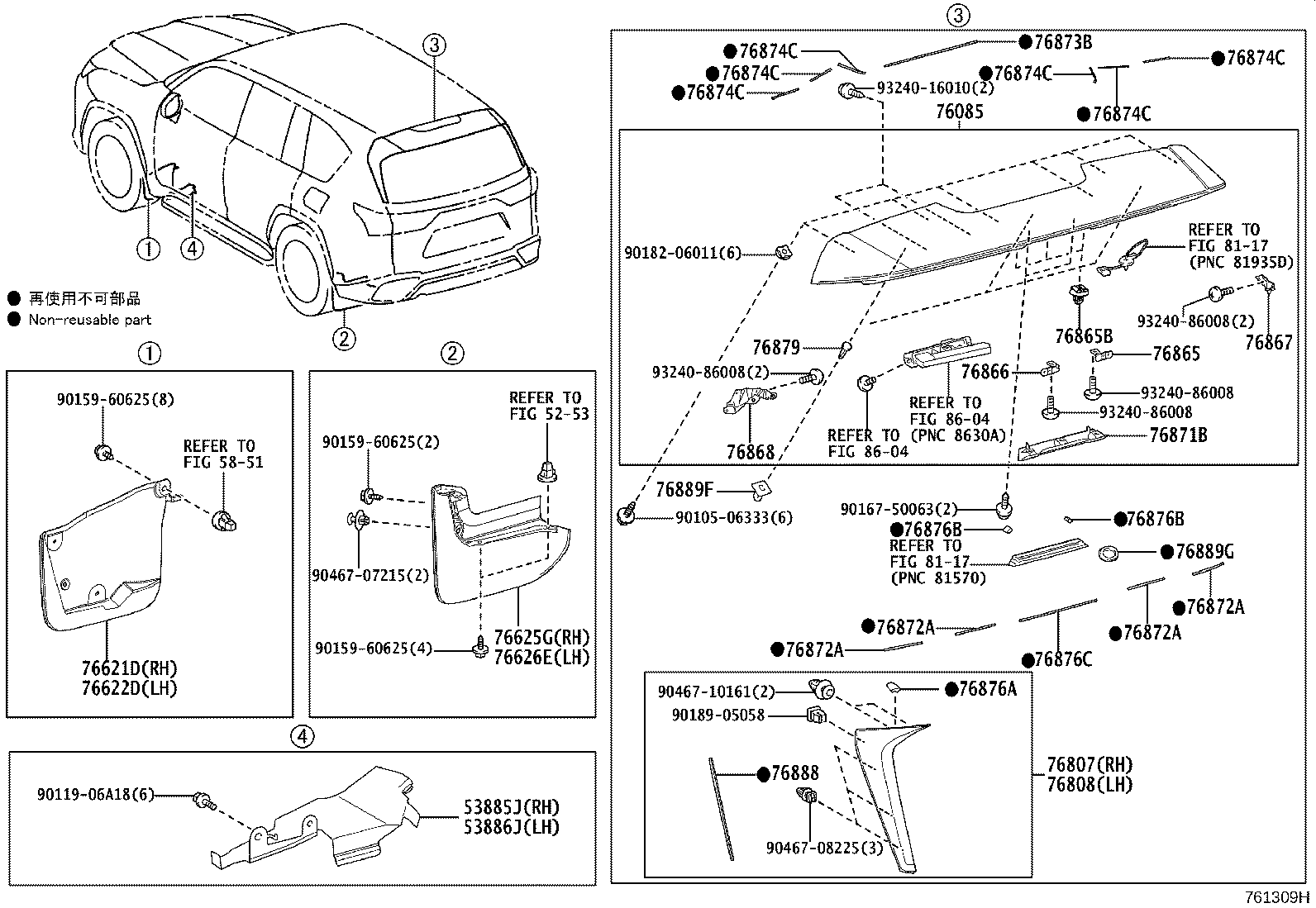

Exploded illustration 761309H 8117 — not listed in this catalogue 8604 — not listed in this catalogue 8604 — not listed in this catalogue 8117 — not listed in this catalogue 5851 — not listed in this catalogue 5253 — not listed in this catalogue 76625G — MUDGUARD, QUARTER PANEL, REAR RH (1 parts) 76889F — SEAL, REAR SPOILER, NO.1 (1 parts) 76865 — RETAINER, REAR SPOILER, NO.1 (1 parts) 76871B — COVER, REAR SPOILER (7 parts) 76867 — RETAINER, REAR SPOILER SIDE, RH (1 parts) 76866 — RETAINER, REAR SPOILER, NO.2 (1 parts) 76879 — CLIP, REAR SPOILER, NO.1 (1 parts) 76626E — MUDGUARD, QUARTER PANEL, REAR LH (1 parts) 76807 — PROTECTOR SUB-ASSY, REAR SPOILER, SIDE RH (1 parts) 76808 — PROTECTOR SUB-ASSY, REAR SPOILER, SIDE LH (1 parts) 76621D — MUDGUARD, FRONT FENDER, RH (1 parts) 76622D — MUDGUARD, FRONT FENDER, LH (1 parts) 9015960625 — not listed in this catalogue 9015960625 — not listed in this catalogue 9018206011 — not listed in this catalogue 9324086008 — not listed in this catalogue 9324086008 — not listed in this catalogue 9010506333 — not listed in this catalogue 9016750063 — not listed in this catalogue 9324086008 — not listed in this catalogue 9015960625 — not listed in this catalogue 9018905058 — not listed in this catalogue 9046708225 — not listed in this catalogue 9046710161 — not listed in this catalogue 9046707215 — not listed in this catalogue 76865B — RETAINER, REAR SPOILER (1 parts) 76868 — RETAINER, REAR SPOILER SIDE, LH (1 parts) 9324086008 — not listed in this catalogue 76872A — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76872A — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76876C — PROTECTOR, REAR SPOILER, NO.4 (1 parts) 76872A — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76872A — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76889G — SEAL, REAR SPOILER, NO.1 (1 parts) 76876B — INSERT, REAR SPOILER (1 parts) 76876B — INSERT, REAR SPOILER (1 parts) 76873B — PROTECTOR, REAR SPOILER, NO.2 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 76876A — PROTECTOR, REAR SPOILER, NO.10 (1 parts) 76888 — PROTECTOR, REAR SPOILER SIDE, NO.3 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 76874C — PROTECTOR, REAR SPOILER, NO.3 (1 parts) 9324016010 — not listed in this catalogue 76085 — SPOILER SUB-ASSY, REAR (7 parts) 53885J — SHIELD, FRONT FENDER SPLASH, REAR RH (1 parts) 53886J — SHIELD, FRONT FENDER SPLASH, REAR LH (1 parts) 9011906A18 — not listed in this catalogue
761309H · 34 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
53885J — Shield, Front Fender Splash, Rear RH
53885-60060 Shield, Front Fender Splash, Rear RH
2023-06 → 2024-11 ended
VJA310 ¥1,990
53886J — Shield, Front Fender Splash, Rear LH
53886-60060 Shield, Front Fender Splash, Rear LH
2023-06 → 2024-11 ended
VJA310 ¥1,990
76085 — Spoiler Sub-assy, Rear
76085-60904-A2 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-A3 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-B3 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-B4 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-C0 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-C2 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76085-60904-G1 note Spoiler Sub-assy, Rear
2021-12 → 2024-11 ended
VJA310 ¥103,000
76621D — Mudguard, Front Fender, RH
76621-60220 Mudguard, Front Fender, RH
2021-12 → 2024-11 ended
VJA310 ¥1,580
76622D — Mudguard, Front Fender, LH
76622-60190 Mudguard, Front Fender, LH
2021-12 → 2024-11 ended
VJA310 ¥1,580
76625G — Mudguard, Quarter Panel, Rear RH
76607-60310 Mudguard, Quarter Panel, Rear RH
2021-12 → 2024-11 ended
VJA310 ¥2,770
76626E — Mudguard, Quarter Panel, Rear LH
76608-60310 Mudguard, Quarter Panel, Rear LH
2021-12 → 2024-11 ended
VJA310 ¥2,770
76807 — Protector Sub-assy, Rear Spoiler, Side RH
76807-60010 Protector Sub-assy, Rear Spoiler, Side RH
2021-12 → 2024-11 ended
VJA310 ¥14,600
76808 — Protector Sub-assy, Rear Spoiler, Side LH
76808-60010 Protector Sub-assy, Rear Spoiler, Side LH
2021-12 → 2024-11 ended
VJA310 ¥14,600
76865 — Retainer, Rear Spoiler, NO.1
76865-60010 Retainer, Rear Spoiler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥110
76865B — Retainer, Rear Spoiler
76865-35030 Retainer, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥50
76866 — Retainer, Rear Spoiler, NO.2
76866-60010 Retainer, Rear Spoiler, NO.2
2021-12 → 2024-11 ended
VJA310 ¥110
76867 — Retainer, Rear Spoiler Side, RH
76867-60010 Retainer, Rear Spoiler Side, RH
2021-12 → 2024-11 ended
VJA310 ¥570
76868 — Retainer, Rear Spoiler Side, LH
76868-60010 Retainer, Rear Spoiler Side, LH
2021-12 → 2024-11 ended
VJA310 ¥570
76871B — Cover, Rear Spoiler
76871-60080-A0 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76871-60080-A1 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76871-60080-B0 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76871-60080-B1 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76871-60080-C0 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥6,400
76871-60080-C1 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76871-60080-G0 note Cover, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥5,800
76872A — Protector, Rear Spoiler, NO.1
76872-60060 Protector, Rear Spoiler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥430
76873B — Protector, Rear Spoiler, NO.2
76873-60050 Protector, Rear Spoiler, NO.2
2021-12 → 2024-11 ended
VJA310 ¥430
76874C — Protector, Rear Spoiler, NO.3
76874-60050 Protector, Rear Spoiler, NO.3
2021-12 → 2024-11 ended
VJA310 ¥430
76876A — Protector, Rear Spoiler, NO.10
76876-60020 Protector, Rear Spoiler, NO.10
2021-12 → 2024-11 ended
VJA310 ¥100
76876B — Insert, Rear Spoiler
76876-60020 Insert, Rear Spoiler
2021-12 → 2024-11 ended
VJA310 ¥100
76876C — Protector, Rear Spoiler, NO.4
76875-60020 Protector, Rear Spoiler, NO.4
2021-12 → 2024-11 ended
VJA310 ¥430
76879 — Clip, Rear Spoiler, NO.1
76879-58010 Clip, Rear Spoiler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥200
76888 — Protector, Rear Spoiler Side, NO.3
76888-60020 Protector, Rear Spoiler Side, NO.3
2021-12 → 2024-11 ended
VJA310 ¥430
76889F — Seal, Rear Spoiler, NO.1
76889-44020 Seal, Rear Spoiler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥160
76889G — Seal, Rear Spoiler, NO.1
76889-60020 Seal, Rear Spoiler, NO.1
2021-12 → 2024-11 ended
VJA310 ¥430
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
