Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

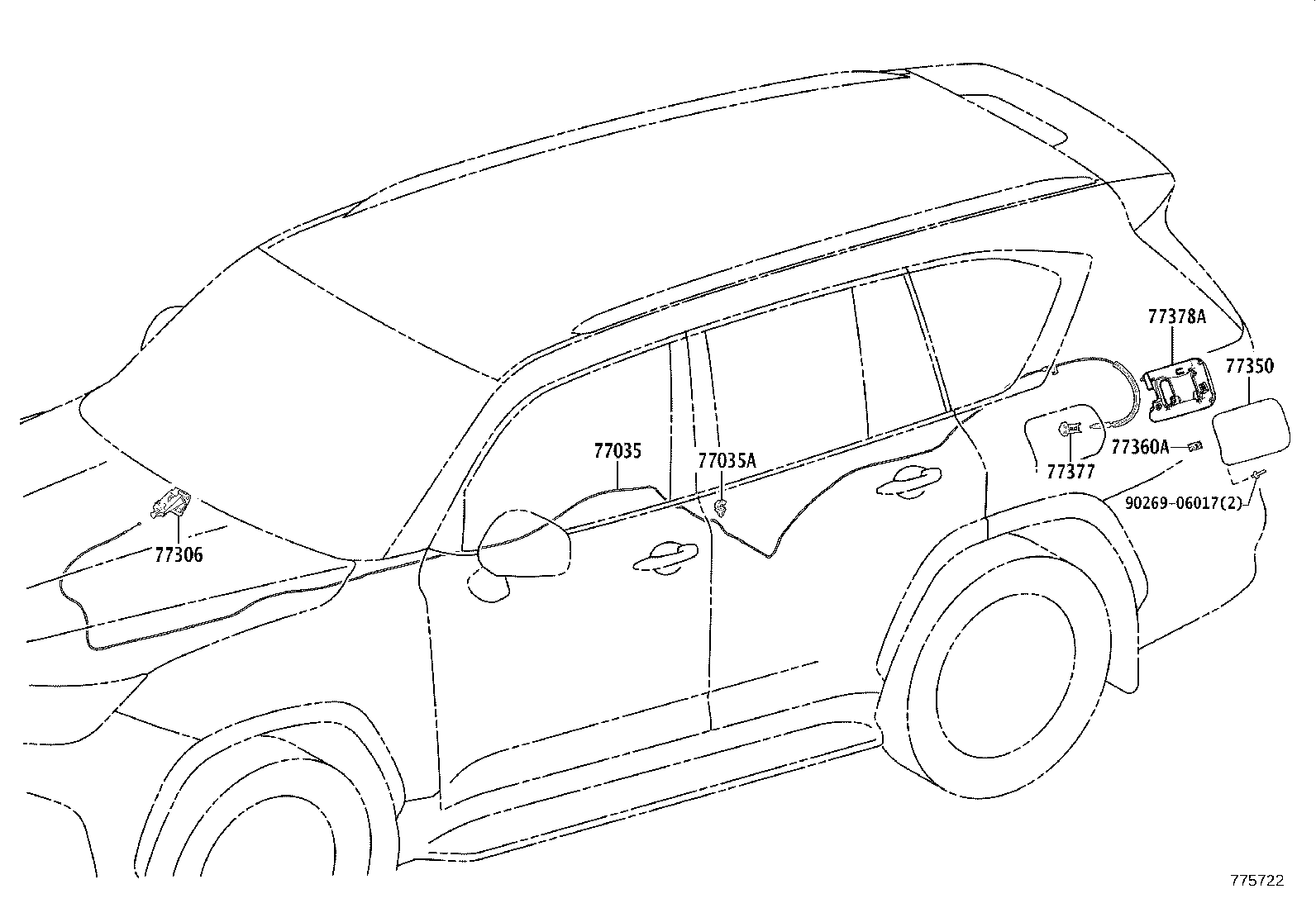

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-60230 |
Cable Sub-assy, Fuel Lid Lock Control
2021-12 → 2024-11
ended
|
VJA310 | ¥1,510 | |
| 77035A — Clamp (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-05018 |
Clamp (FOR FUEL LID LOCK CONTROL CABLE)
2021-12 → 2024-11
ended
|
VJA310 | ¥80 | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-58020-C1 note |
Lever Sub-assy, Fuel Lid Lock Open
2021-12 → 2024-11
ended
|
VJA310 | ¥660 | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-60150 |
Lid Assy, Fuel Filler Opening
2021-12 → 2024-11
ended
|
VJA310 | ¥3,430 | |
| 77360A — Spring Assy, Fuel Filler Opening Lid | ||||
| 77360-35040 |
Spring Assy, Fuel Filler Opening Lid
2021-12 → 2024-11
ended
|
VJA310 | ¥250 | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-75010 |
Retainer, Fuel Filler Opening Lid Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥200 | |
| 77378A — Cover, Fuel Filler Opening Lid Lock | ||||
| 77399-60020 |
Cover, Fuel Filler Opening Lid Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥2,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
