Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

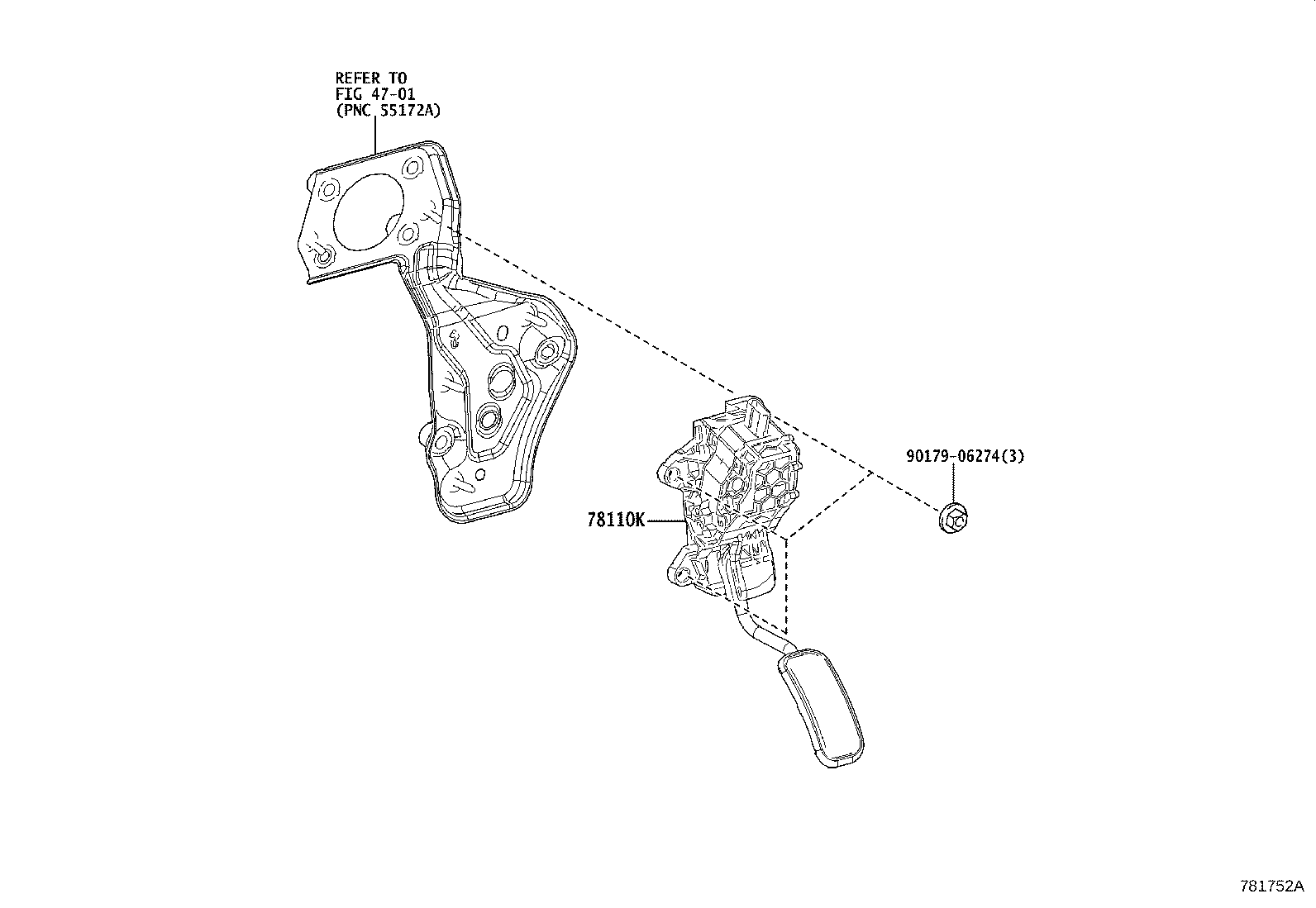

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78110K — Rod Assy, Accelerator Pedal(W/SENSOR) | ||||
| 78110-60220 |
Rod Assy, Accelerator Pedal(W/SENSOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 78110-60230 note |
Rod Assy, Accelerator Pedal(W/SENSOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥11,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
