Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

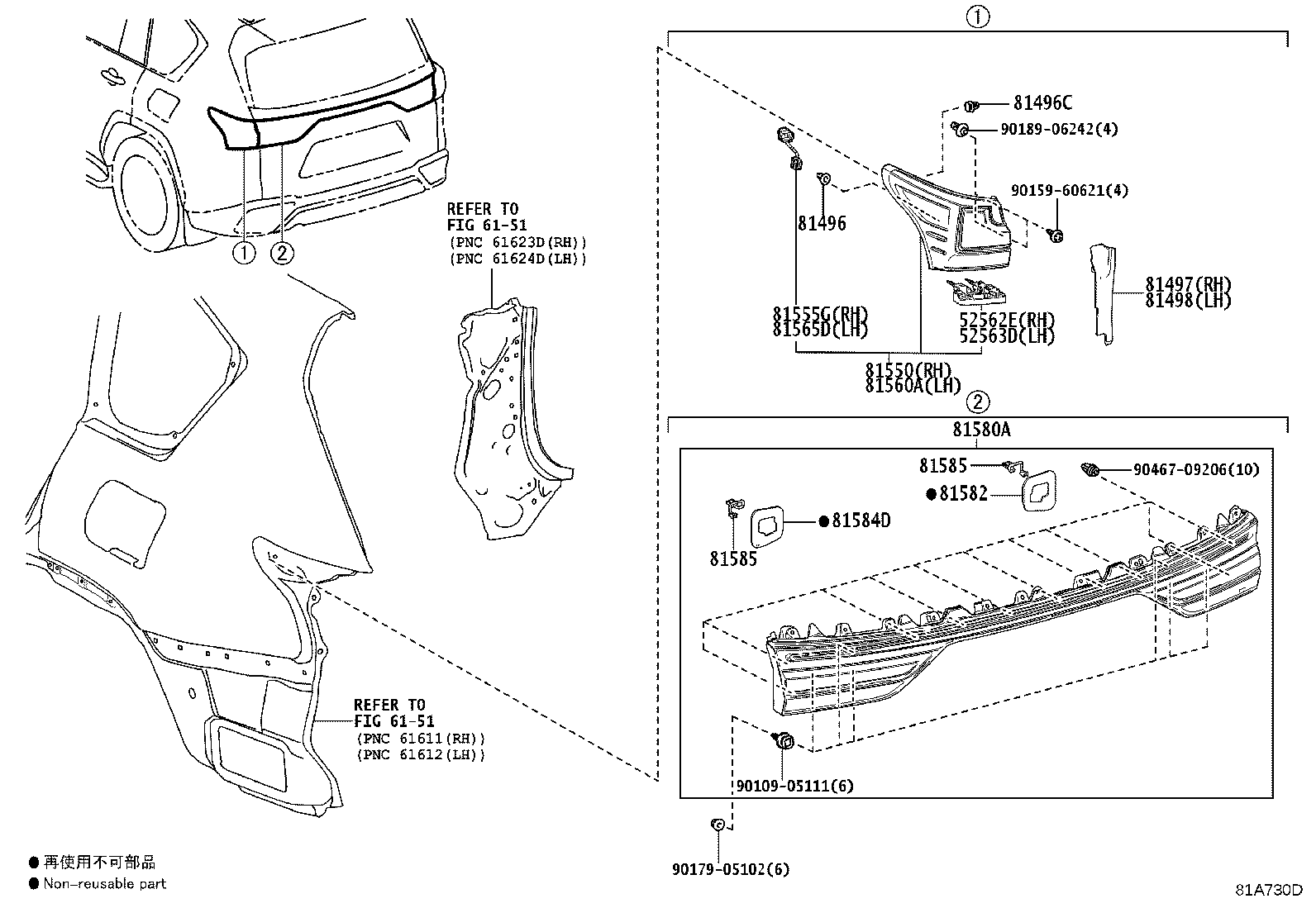

Exploded illustration 81A730D 6151 — not listed in this catalogue 81496 — GUIDE, REAR COMBINATION LAMP (1 parts) 81555G — CORD, REAR COMBINATION LAMP, RH (1 parts) 81565D — CORD, REAR COMBINATION LAMP, LH (1 parts) 52563D — RETAINER, REAR BUMPER, UPPER LH (1 parts) 52562E — RETAINER, REAR BUMPER, UPPER RH (1 parts) 9015960621 — not listed in this catalogue 9018906242 — not listed in this catalogue 81496C — GUIDE, REAR COMBINATION LAMP, NO.2 (1 parts) 81498 — COVER, REAR COMBINATION LAMP, LH (1 parts) 81497 — COVER, REAR COMBINATION LAMP, RH (1 parts) 81550 — LAMP ASSY, REAR COMBINATION, RH (2 parts) 81560A — LAMP ASSY, REAR COMBINATION, LH (2 parts) 81580A — LAMP ASSY, REAR (2 parts) 9046709206 — not listed in this catalogue 81585 — SOCKET & WIRE, REAR LAMP (1 parts) 81582 — GASKET, REAR LAMP (1 parts) 81584D — GASKET, REAR LAMP (1 parts) 81585 — SOCKET & WIRE, REAR LAMP (1 parts) 9010905111 — not listed in this catalogue 9017905102 — not listed in this catalogue 6151 — not listed in this catalogue
81A730D · 15 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
17 parts on this figure
Part number Description Fitment Price
52562E — Retainer, Rear Bumper, Upper RH
52562-60130 Retainer, Rear Bumper, Upper RH
2021-12 → 2024-11 ended
VJA310 ¥1,900
52563D — Retainer, Rear Bumper, Upper LH
52563-60130 Retainer, Rear Bumper, Upper LH
2021-12 → 2024-11 ended
VJA310 ¥1,900
81496 — Guide, Rear Combination Lamp
81496-52020 Guide, Rear Combination Lamp
2021-12 → 2024-11 ended
VJA310 ¥70
81496C — Guide, Rear Combination Lamp, NO.2
81496-60010 Guide, Rear Combination Lamp, NO.2
2021-12 → 2024-11 ended
VJA310 ¥100
81497 — Cover, Rear Combination Lamp, RH
81497-60050 Cover, Rear Combination Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥1,180
81498 — Cover, Rear Combination Lamp, LH
81498-60050 Cover, Rear Combination Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥1,180
81550 — Lamp Assy, Rear Combination, RH
81550-60C50 Lamp Assy, Rear Combination, RH
2021-12 → 2024-08 ended
VJA310 ¥55,800
81550-60C51 Lamp Assy, Rear Combination, RH
2024-09 → 2024-11 ended
VJA310 ¥50,700
81555G — Cord, Rear Combination Lamp, RH
81555-60C50 Cord, Rear Combination Lamp, RH
2021-12 → 2024-11 ended
VJA310 ¥450
81560A — Lamp Assy, Rear Combination, LH
81560-60C50 Lamp Assy, Rear Combination, LH
2021-12 → 2024-08 ended
VJA310 ¥55,800
81560-60C51 Lamp Assy, Rear Combination, LH
2024-09 → 2024-11 ended
VJA310 ¥50,700
81565D — Cord, Rear Combination Lamp, LH
81555-60C50 Cord, Rear Combination Lamp, LH
2021-12 → 2024-11 ended
VJA310 ¥450
81580A — Lamp Assy, Rear
81580-60450 Lamp Assy, Rear
2021-12 → 2024-08 ended
VJA310 ¥115,000
81580-60451 Lamp Assy, Rear
2024-09 → 2024-11 ended
VJA310 ¥104,000
81582 — Gasket, Rear Lamp
81582-60450 Gasket, Rear Lamp
2021-12 → 2024-11 ended
VJA310 ¥680
81584D — Gasket, Rear Lamp
81582-60570 Gasket, Rear Lamp
2021-12 → 2024-11 ended
VJA310 ¥680
81585 — Socket & Wire, Rear Lamp
81585-60450 Socket & Wire, Rear Lamp
2021-12 → 2024-11 ended
VJA310 ¥1,130
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
