Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

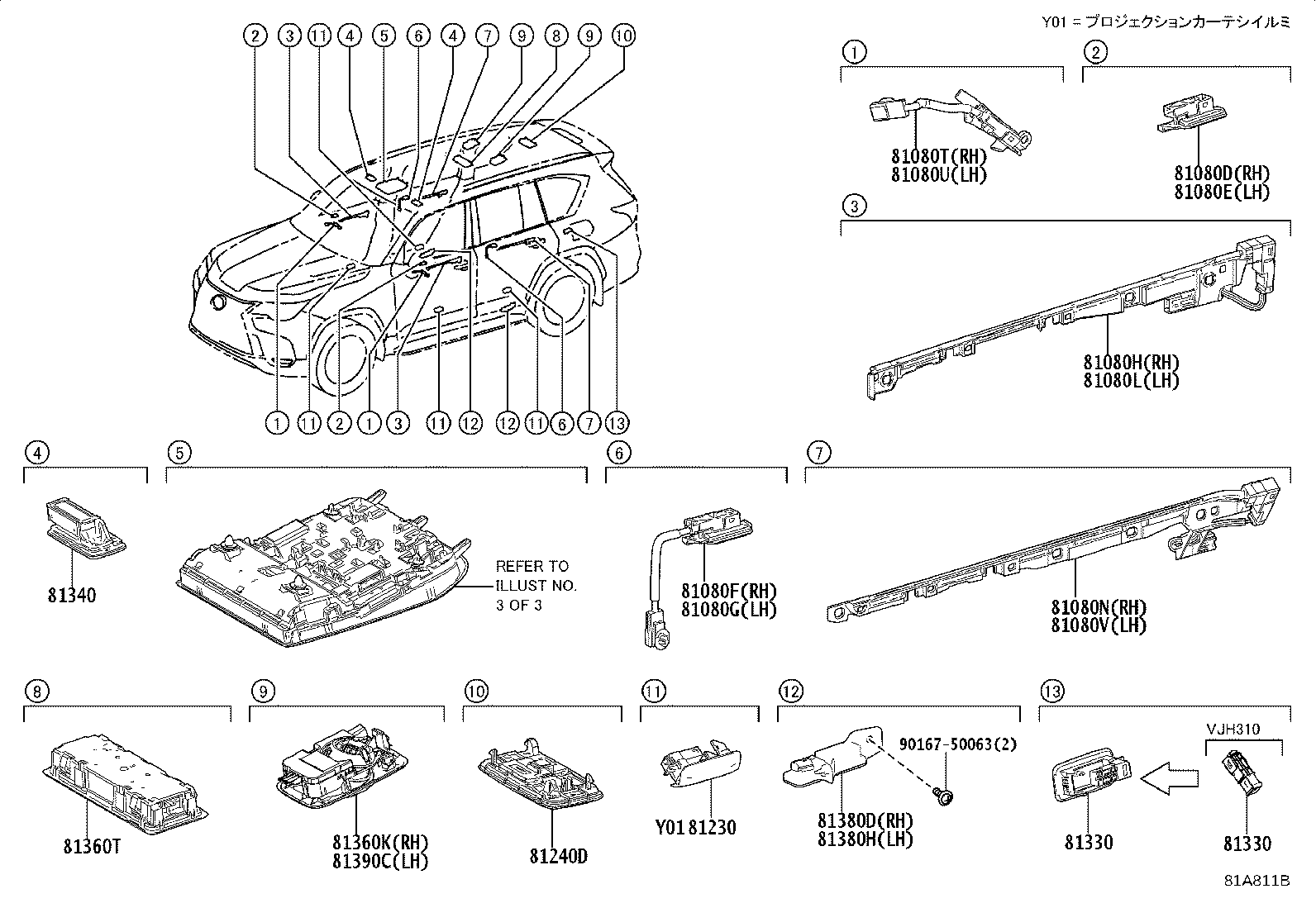

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81080D — Lamp Assy, Front Door Inside Handle Illumination, RH | ||||
| 81080-60350 |
Lamp Assy, Front Door Inside Handle Illumination, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥2,290 | |
| 81080E — Lamp Assy, Front Door Inside Handle Illumination, LH | ||||
| 81080-60360 |
Lamp Assy, Front Door Inside Handle Illumination, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥2,290 | |
| 81080F — Lamp Assy, Rear Door Inside Handle Illumination, RH | ||||
| 81080-60390 |
Lamp Assy, Rear Door Inside Handle Illumination, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,230 | |
| 81080G — Lamp Assy, Rear Door Inside Handle Illumination, LH | ||||
| 81080-60400 |
Lamp Assy, Rear Door Inside Handle Illumination, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥3,230 | |
| 81080H — Lamp Assy, Interior Illumination, NO.1 RH | ||||
| 81080-60290 |
Lamp Assy, Interior Illumination, NO.1 RH
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 81080L — Lamp Assy, Interior Illumination, NO.1 LH | ||||
| 81080-60300 |
Lamp Assy, Interior Illumination, NO.1 LH
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 81080N — Lamp Assy, Interior Illumination, NO.1 | ||||
| 81090-60260 |
Lamp Assy, Interior Illumination, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 81080T — Lamp Assy, Interior Illumination, NO.2 RH | ||||
| 81080-60370 |
Lamp Assy, Interior Illumination, NO.2 RH
2021-12 → 2024-11
ended
|
VJA310 | ¥2,520 | |
| 81080U — Lamp Assy, Interior Illumination, NO.2 LH | ||||
| 81080-60380 |
Lamp Assy, Interior Illumination, NO.2 LH
2021-12 → 2024-11
ended
|
VJA310 | ¥2,520 | |
| 81080V — Lamp Assy, Interior Illumination, NO.2 | ||||
| 81090-60270 |
Lamp Assy, Interior Illumination, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 81230 — Lamp Assy, Courtesy | ||||
| 81230-11030 |
Lamp Assy, Courtesy
2021-12 → 2024-11
ended
|
VJA310 | ¥1,090 | |
| 81240D — Lamp Assy, Room, NO.2 | ||||
| 81240-48030-C1 note |
Lamp Assy, Room, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥4,280 | |
| 81330 — Lamp Assy, Luggage Compartment, NO.1 | ||||
| 81330-11010 |
Lamp Assy, Luggage Compartment, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,090 | |
| 81340 — Lamp Assy, Vanity | ||||
| 81340-50260 |
Lamp Assy, Vanity
2021-12 → 2024-11
ended
|
VJA310 | ¥1,670 | |
| 81360K — Lamp Assy, Spot, RH | ||||
| 81360-60170-C0 note |
Lamp Assy, Spot, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥25,500 | |
| 81360T — Lamp Assy, Spot | ||||
| 81360-60140-C0 note |
Lamp Assy, Spot
2021-12 → 2024-11
ended
|
VJA310 | ¥5,300 | |
| 81380D — Lamp Assy, Step | ||||
| 81380-60140 |
Lamp Assy, Step
2021-12 → 2024-11
ended
|
VJA310 | ¥1,690 | |
| 81380H — Lamp Assy, Step | ||||
| 81380-60150 |
Lamp Assy, Step
2021-12 → 2024-11
ended
|
VJA310 | ¥1,690 | |
| 81390C — Lamp Assy, Spot, LH | ||||
| 81390-60160-C0 note |
Lamp Assy, Spot, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥25,500 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
