Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

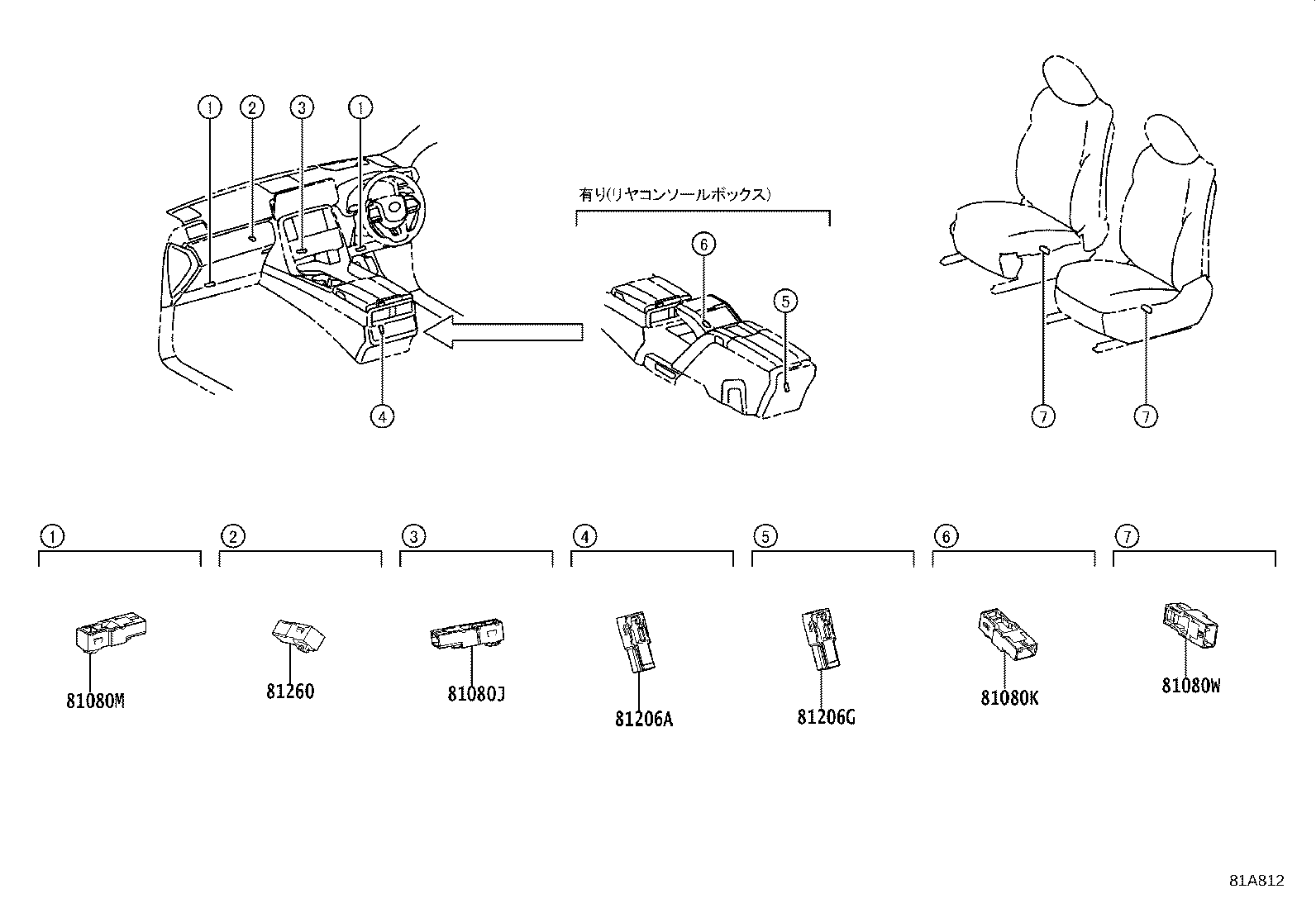

Exploded illustration 81A812 81080W — LAMP ASSY, INTERIOR ILLUMINATION, NO.3 (1 parts) 81080J — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81080M — LAMP ASSY, INTERIOR ILLUMINATION, NO.1 (1 parts) 81206A — LAMP SUB-ASSY, CONSOLE BOX (2 parts) 81206G — LAMP SUB-ASSY, CONSOLE BOX (1 parts) 81080K — LAMP ASSY, CONSOLE BOX ILLUMINATION (1 parts) 81260 — LAMP ASSY, GLOVE BOX (1 parts)
81A812 · 7 callouts Full size ↗
8 parts on this figure
Part number Description Fitment Price
81080J — Lamp Assy, Interior Illumination, NO.1
81080-78010 Lamp Assy, Interior Illumination, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,470
81080K — Lamp Assy, Console Box Illumination
81080-78010 note Lamp Assy, Console Box Illumination
2021-12 → 2024-11 ended
VJA310 ¥1,470
81080M — Lamp Assy, Interior Illumination, NO.1
81080-78010 Lamp Assy, Interior Illumination, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,470
81080W — Lamp Assy, Interior Illumination, NO.3
81080-78010 Lamp Assy, Interior Illumination, NO.3
2021-12 → 2024-11 ended
VJA310 ¥1,470
81206A — Lamp Sub-assy, Console Box
81080-33290 note Lamp Sub-assy, Console Box
2021-12 → 2024-11 ended
VJA310 ¥920
81080-33290 note Lamp Sub-assy, Console Box
2021-12 → 2024-11 ended
VJA310 ¥920
81206G — Lamp Sub-assy, Console Box
81080-33290 note Lamp Sub-assy, Console Box
2021-12 → 2024-11 ended
VJA310 ¥920
81260 — Lamp Assy, Glove Box
81080-33290 Lamp Assy, Glove Box
2021-12 → 2024-11 ended
VJA310 ¥920
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
