Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

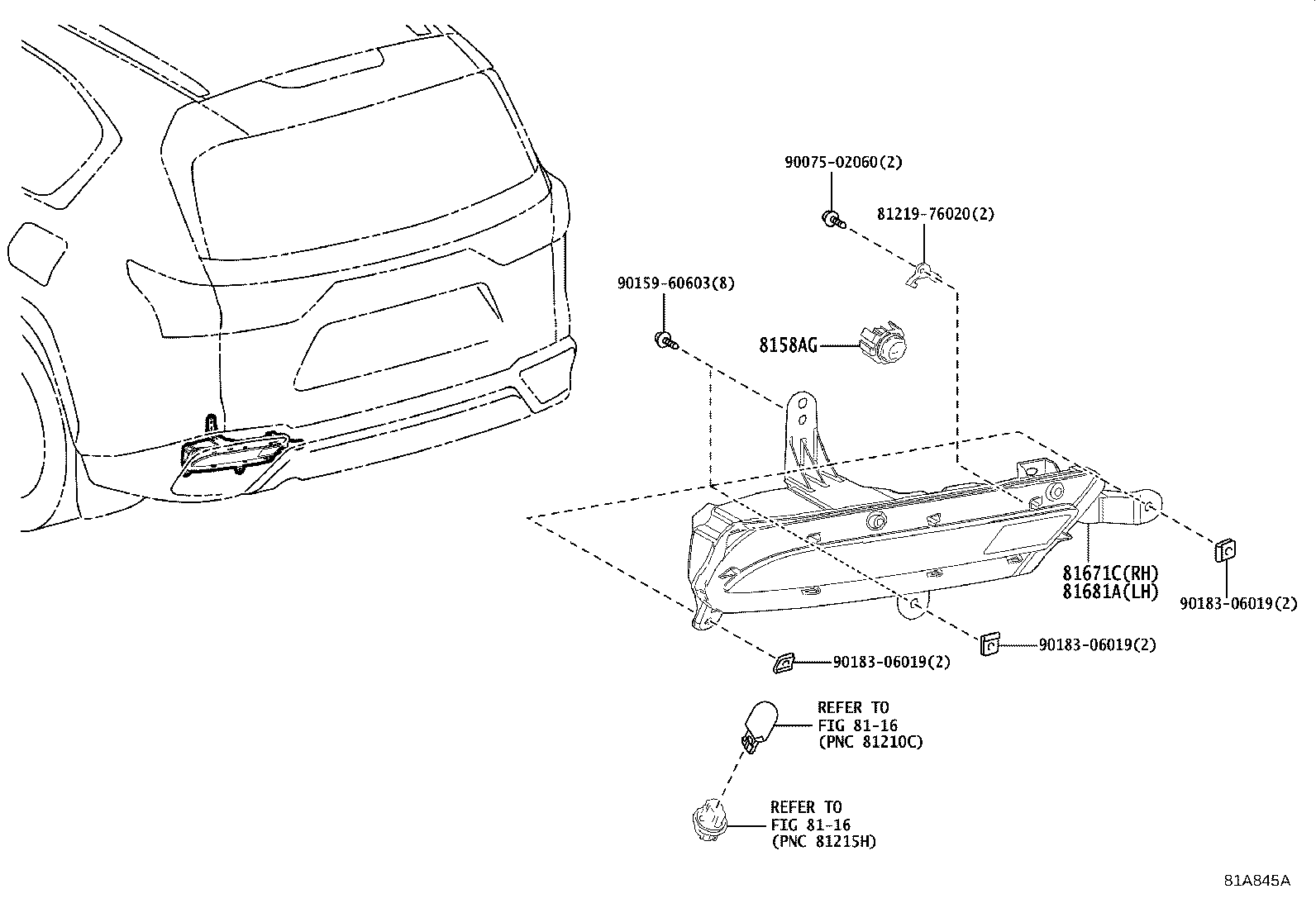

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 8158AG — Led, Back-up Lamp | ||||
| 8158A-12260 |
Led, Back-up Lamp
2021-12 → 2024-11
ended
|
VJA310 | ¥5,100 | |
| 81671C — Lens & Body, Back-up Lamp, RH | ||||
| 81457-60130 |
Lens & Body, Back-up Lamp, RH
2021-12 → 2024-09
ended
|
VJA310 | ¥21,800 | |
| 81457-60131 |
Lens & Body, Back-up Lamp, RH
2024-09 → 2024-11
ended
|
VJA310 | ¥19,800 | |
| 81681A — Lens & Body, Back-up Lamp, LH | ||||
| 81456-60130 |
Lens & Body, Back-up Lamp, LH
2021-12 → 2024-09
ended
|
VJA310 | ¥21,800 | |
| 81456-60131 |
Lens & Body, Back-up Lamp, LH
2024-09 → 2024-11
ended
|
VJA310 | ¥19,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
