Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

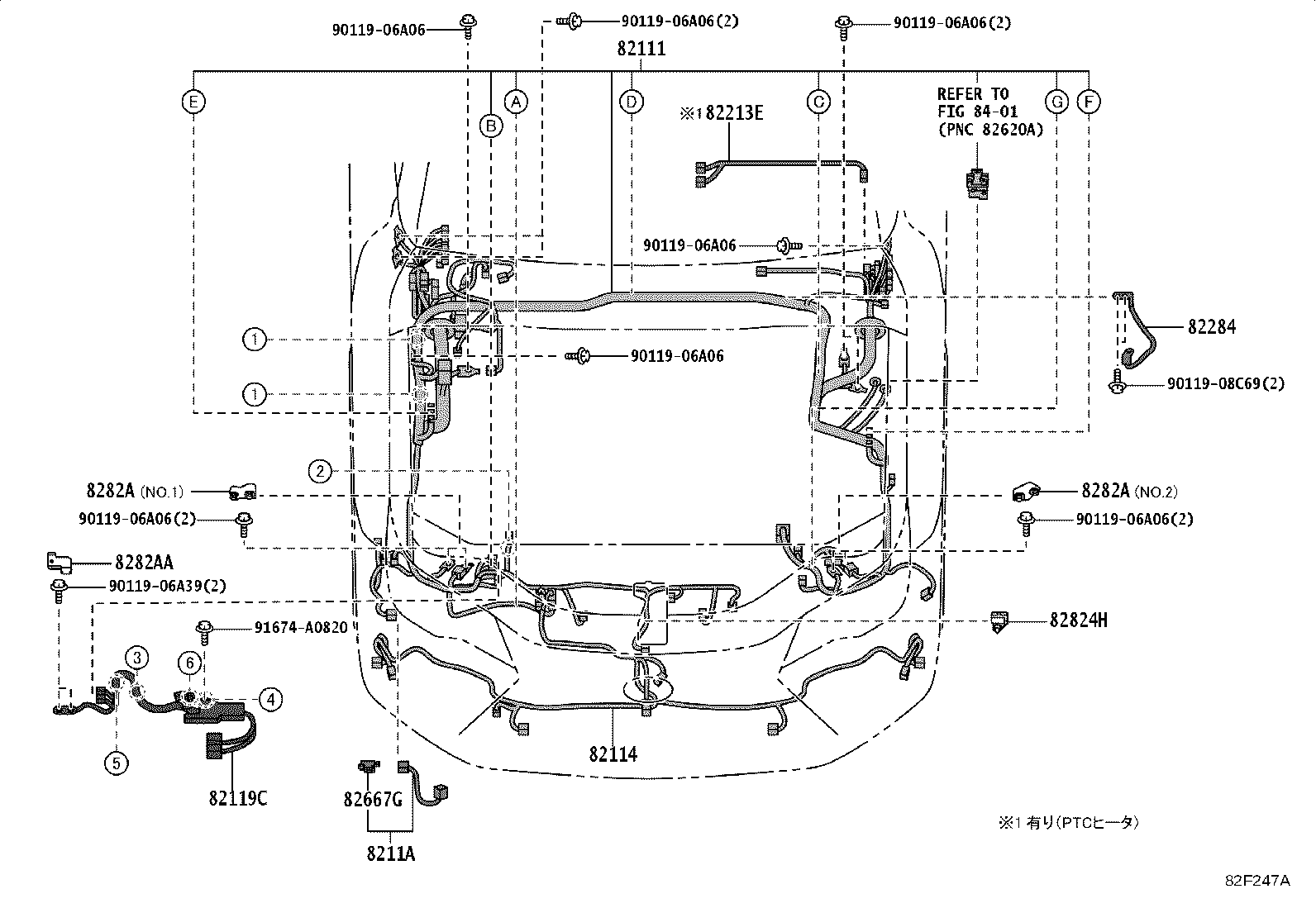

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82115-60L40 |
Wire, Engine Room Main
2021-12 → 2022-11
ended
|
VJA310 | ¥248,000 | |
| 82115-60L41 |
Wire, Engine Room Main
2022-11 → 2023-10
ended
|
VJA310 | ¥248,000 | |
| 82115-60L42 |
Wire, Engine Room Main
2023-10 → 2024-11
ended
|
VJA310 | ¥248,000 | |
| 82114 — Wire, Engine Room, NO.4 | ||||
| 82114-60420 |
Wire, Engine Room, NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥11,200 | |
| 82119C — Wire, Engine Room, NO.5 | ||||
| 82119-60020 |
Wire, Engine Room, NO.5
2021-12 → 2024-11
ended
|
VJA310 | ¥15,100 | |
| 82119-60050 note |
Wire, Engine Room, NO.5
2021-12 → 2024-11
ended
|
VJA310 | ¥16,700 | |
| 8211A — Wire, Engine Room, NO.6 | ||||
| 8211A-60010 |
Wire, Engine Room, NO.6
2021-12 → 2024-11
ended
|
VJA310 | ¥1,070 | |
| 82213E — Wire, Heater Blower | ||||
| 82213-60220 note |
Wire, Heater Blower
2021-12 → 2024-11
ended
|
VJA310 | ¥3,210 | |
| 82284 — Wire, Earth | ||||
| 82284-60160 |
Wire, Earth
2021-12 → 2024-11
ended
|
VJA310 | ¥3,750 | |
| 82667G — Holder, Connector, NO.22 | ||||
| 82666-60N70 |
Holder, Connector, NO.22
2021-12 → 2024-11
ended
|
VJA310 | ¥400 | |
| 8282A — Cap, Earth Bolt, NO.1 | ||||
| 8282A-60020 note |
Cap, Earth Bolt, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥210 | |
| 8282A-60030 note |
Cap, Earth Bolt, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥210 | |
| 8282AA — Cap, Earth Bolt, NO.2 | ||||
| 8282A-60010 |
Cap, Earth Bolt, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
