Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

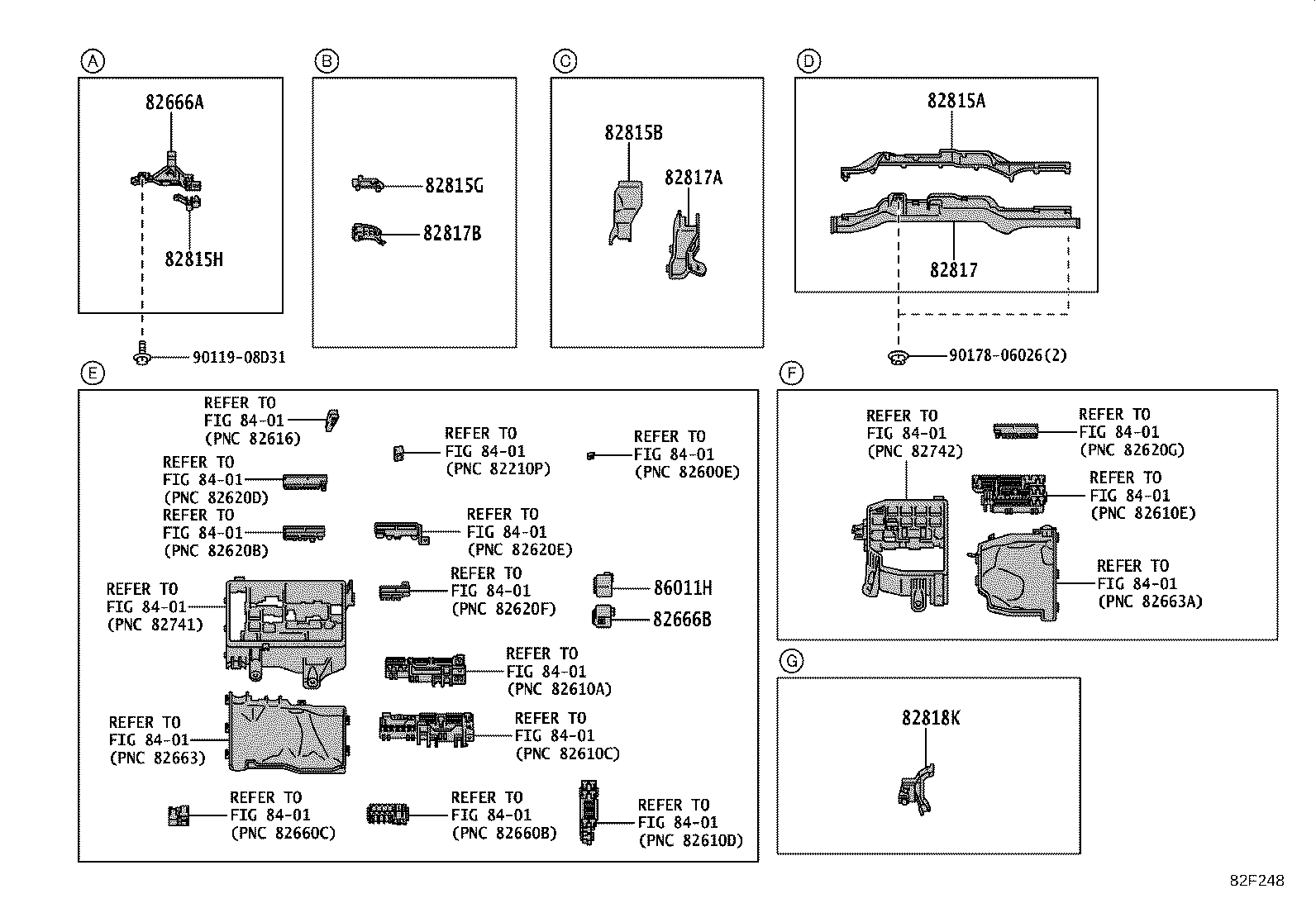

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82666A — Holder, Connector NO.2 | ||||
| 82666-60Q60 |
Holder, Connector NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥1,250 | |
| 82666B — Holder, Connector NO.3 | ||||
| 82666-60R20 |
Holder, Connector NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥710 | |
| 82815A — Cover, Wiring Harness Protector | ||||
| 82815-60B60 |
Cover, Wiring Harness Protector
2021-12 → 2024-11
ended
|
VJA310 | ¥1,200 | |
| 82815B — Cover, Wiring Harness Protector | ||||
| 82815-60B70 |
Cover, Wiring Harness Protector
2021-12 → 2024-11
ended
|
VJA310 | ¥650 | |
| 82815G — Cover, Wiring Harness Protector NO.5 | ||||
| 82815-60B80 |
Cover, Wiring Harness Protector NO.5
2021-12 → 2024-11
ended
|
VJA310 | ¥230 | |
| 82815H — Cover, Wiring Harness Protector NO.6 | ||||
| 82815-60R80 |
Cover, Wiring Harness Protector NO.6
2021-12 → 2024-11
ended
|
VJA310 | ¥400 | |
| 82817 — Protector, Wiring Harness, NO.1 | ||||
| 82817-6A630 |
Protector, Wiring Harness, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,690 | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-6A640 |
Protector, Wiring Harness, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥970 | |
| 82817B — Protector, Wiring Harness, NO.3 | ||||
| 82817-6A650 |
Protector, Wiring Harness, NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥520 | |
| 82818K — Protector, Wiring Harness, NO.11 | ||||
| 82817-60R30 |
Protector, Wiring Harness, NO.11
2021-12 → 2024-11
ended
|
VJA310 | ¥650 | |
| 86011H — Filter, Noise | ||||
| 90980-05383 |
Filter, Noise
2021-12 → 2024-11
ended
|
VJA310 | ¥3,180 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
