Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

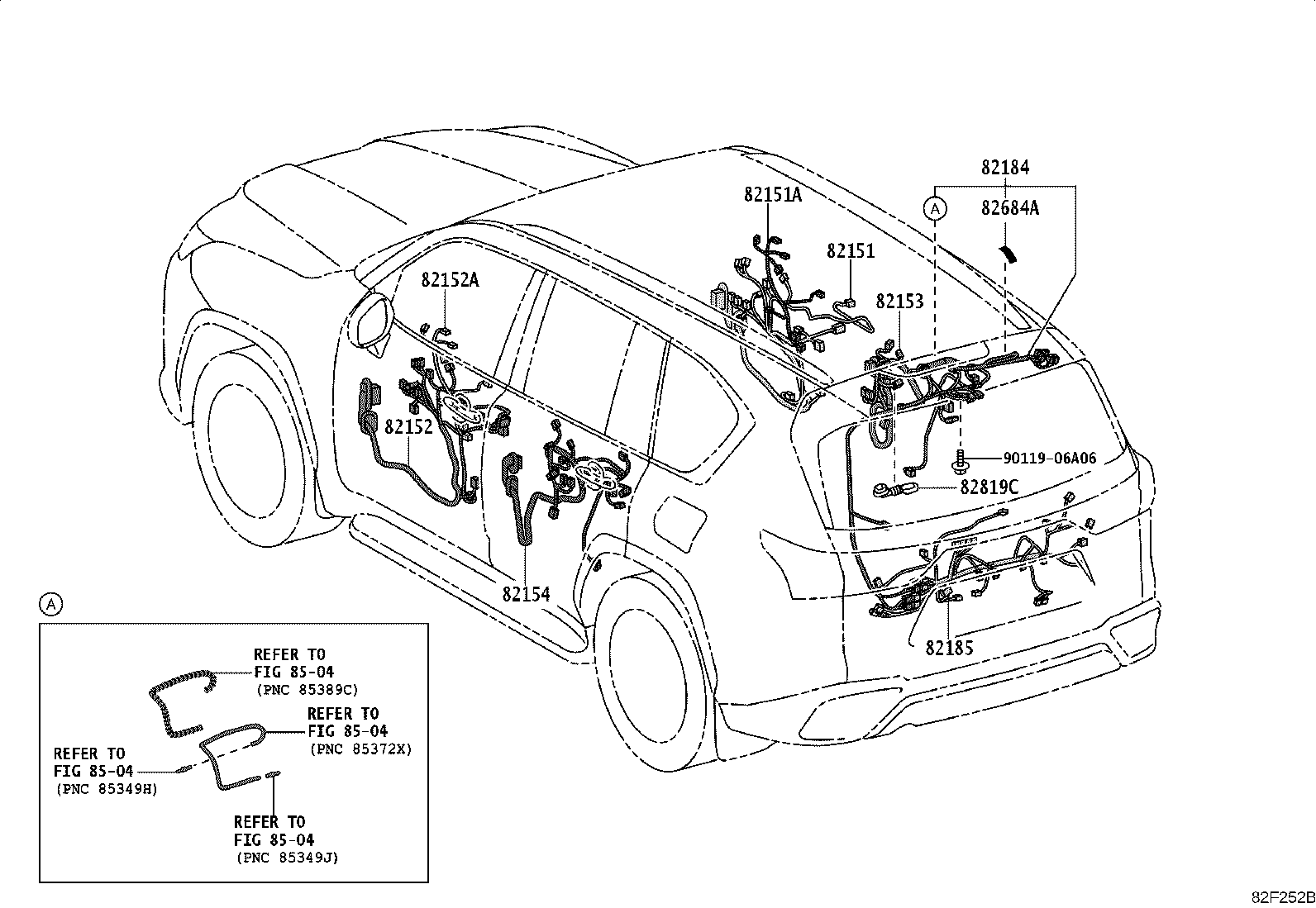

Exploded illustration 82F252B 82184 — WIRE, BACK DOOR, NO.1 (1 parts) 82684A — not listed in this catalogue 82185 — WIRE, BACK DOOR, NO.2 (2 parts) 82151 — WIRE, FRONT DOOR, RH (2 parts) 82151A — WIRE, FRONT DOOR, NO.2, RH (1 parts) 82152A — WIRE, FRONT DOOR, NO.2, LH (1 parts) 82153 — WIRE, REAR DOOR, NO.1 (2 parts) 82152 — WIRE, FRONT DOOR, LH (2 parts) 82154 — WIRE, REAR DOOR, NO.2 (2 parts) 9011906A06 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 8504 — not listed in this catalogue 82819C — not listed in this catalogue
82F252B · 8 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
82151 — Wire, Front Door, RH
82151-6A060 Wire, Front Door, RH
2021-12 → 2024-11 ended
VJA310 ¥16,700
82151-6A480 note Wire, Front Door, RH
2021-12 → 2024-11 ended
VJA310 ¥16,700
82151A — Wire, Front Door, NO.2, RH
82155-60110 Wire, Front Door, NO.2, RH
2021-12 → 2024-11 ended
VJA310 ¥2,140
82152 — Wire, Front Door, LH
82152-60X30 Wire, Front Door, LH
2021-12 → 2024-11 ended
VJA310 ¥16,700
82152-6A050 note Wire, Front Door, LH
2021-12 → 2024-11 ended
VJA310 ¥16,700
82152A — Wire, Front Door, NO.2, LH
82156-60130 Wire, Front Door, NO.2, LH
2021-12 → 2024-11 ended
VJA310 ¥2,140
82153 — Wire, Rear Door, NO.1
82153-60A10 Wire, Rear Door, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,700
82153-60A30 note Wire, Rear Door, NO.1
2021-12 → 2024-11 ended
VJA310 ¥11,700
82154 — Wire, Rear Door, NO.2
82154-60750 Wire, Rear Door, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,700
82154-60770 note Wire, Rear Door, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,700
82184 — Wire, Back Door, NO.1
82184-60830 Wire, Back Door, NO.1
2021-12 → 2024-11 ended
VJA310 ¥18,400
82185 — Wire, Back Door, NO.2
82185-60880 Wire, Back Door, NO.2
2021-12 → 2024-11 ended
VJA310 ¥11,200
82185-60890 note Wire, Back Door, NO.2
2021-12 → 2024-11 ended
VJA310 ¥12,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
