Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

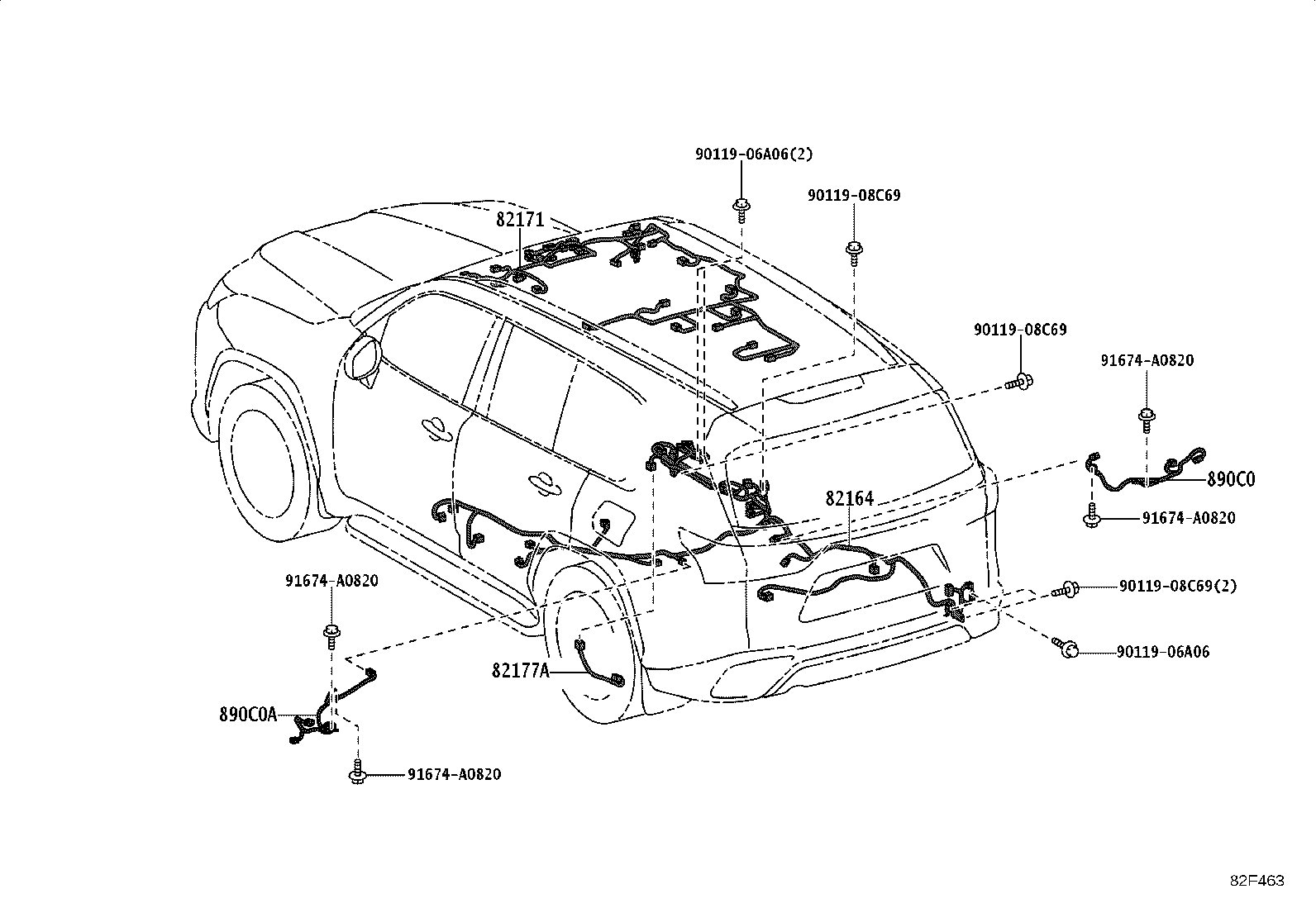

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82164 — Wire, Frame | ||||
| 82164-60P50 |
Wire, Frame
2021-12 → 2024-11
ended
|
VJA310 | ¥53,200 | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-6AK00 |
Wire, Roof, NO.1
2021-12 → 2022-11
ended
|
VJA310 | — | |
| 82171-6AK01 |
Wire, Roof, NO.1
2022-11 → 2024-11
ended
|
VJA310 | ¥14,800 | |
| 82171-6AK20 note |
Wire, Roof, NO.1
2021-12 → 2022-11
ended
|
VJA310 | ¥22,100 | |
| 82171-6AK21 note |
Wire, Roof, NO.1
2022-11 → 2024-11
ended
|
VJA310 | ¥22,000 | |
| 82171-6AS80 note |
Wire, Roof, NO.1
2021-12 → 2022-11
ended
|
VJA310 | ¥18,400 | |
| 82171-6AS81 note |
Wire, Roof, NO.1
2022-11 → 2024-11
ended
|
VJA310 | ¥18,400 | |
| 82177A — Wire, Frame, NO.4 | ||||
| 82177-60060 |
Wire, Frame, NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥1,430 | |
| 890C0 — Wire Assy, Parking Brake, NO.1 | ||||
| 890C0-60060 |
Wire Assy, Parking Brake, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥5,100 | |
| 890C0A — Wire Assy, Parking Brake, NO.2 | ||||
| 890C0-60070 |
Wire Assy, Parking Brake, NO.2
2021-12 → 2024-11
ended
|
VJA310 | ¥5,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
