Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

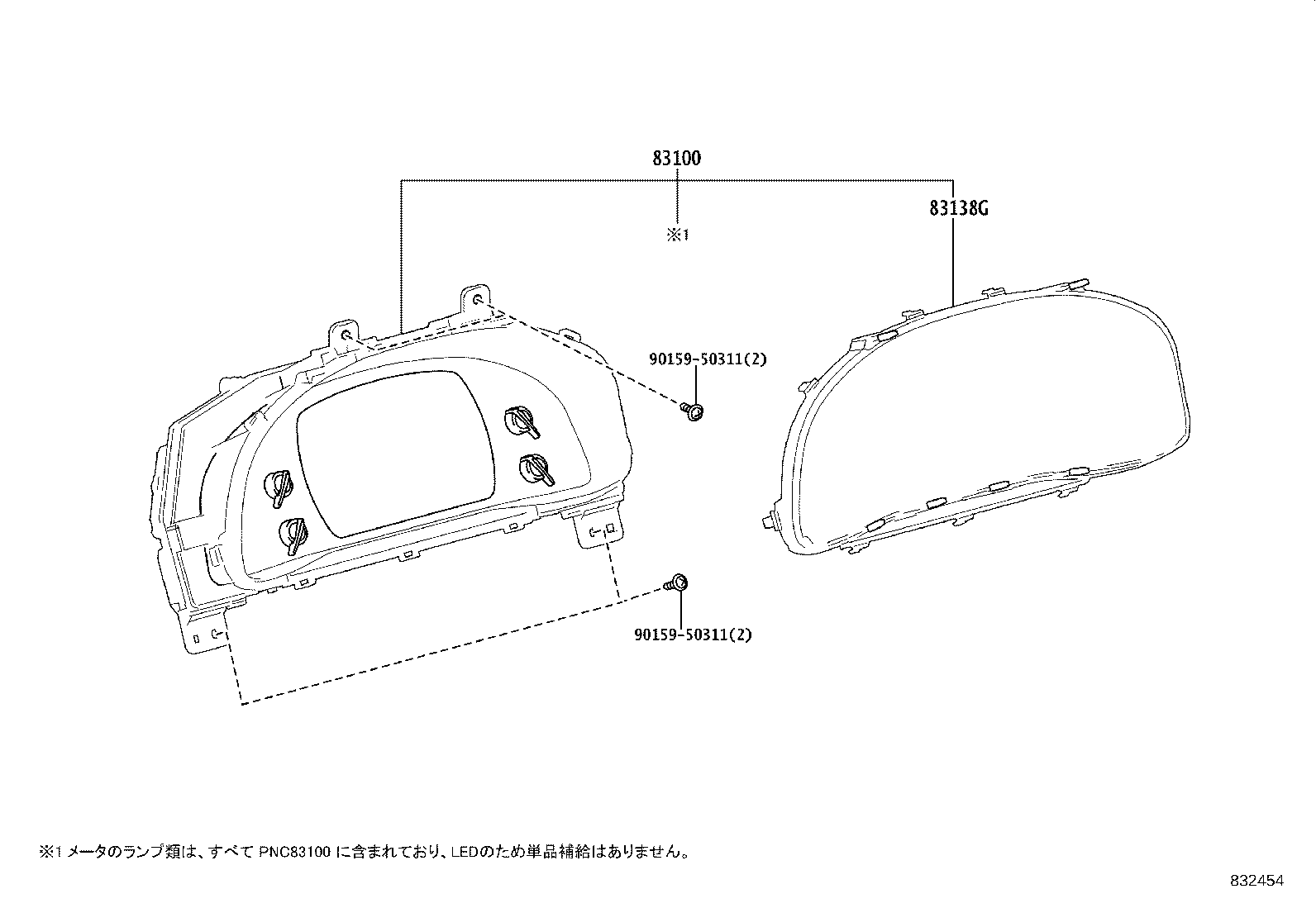

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-6CC50 note |
Meter Assy, Combination
2021-12 → 2022-10
ended
|
VJA310 | ¥155,000 | |
| 83800-6CC51 note |
Meter Assy, Combination
2022-11 → 2023-09
ended
|
VJA310 | ¥155,000 | |
| 83800-6CC52 note |
Meter Assy, Combination
2023-10 → 2024-11
ended
|
VJA310 | ¥156,000 | |
| 83800-6CD10 note |
Meter Assy, Combination
2021-12 → 2022-10
ended
|
VJA310 | ¥157,000 | |
| 83800-6CD11 note |
Meter Assy, Combination
2022-11 → 2023-09
ended
|
VJA310 | ¥157,000 | |
| 83800-6CD12 note |
Meter Assy, Combination
2023-10 → 2024-11
ended
|
VJA310 | ¥157,000 | |
| 83138G — Glass, Combination Meter | ||||
| 83852-6CC50 |
Glass, Combination Meter
2021-12 → 2024-11
ended
|
VJA310 | ¥1,930 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
