Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

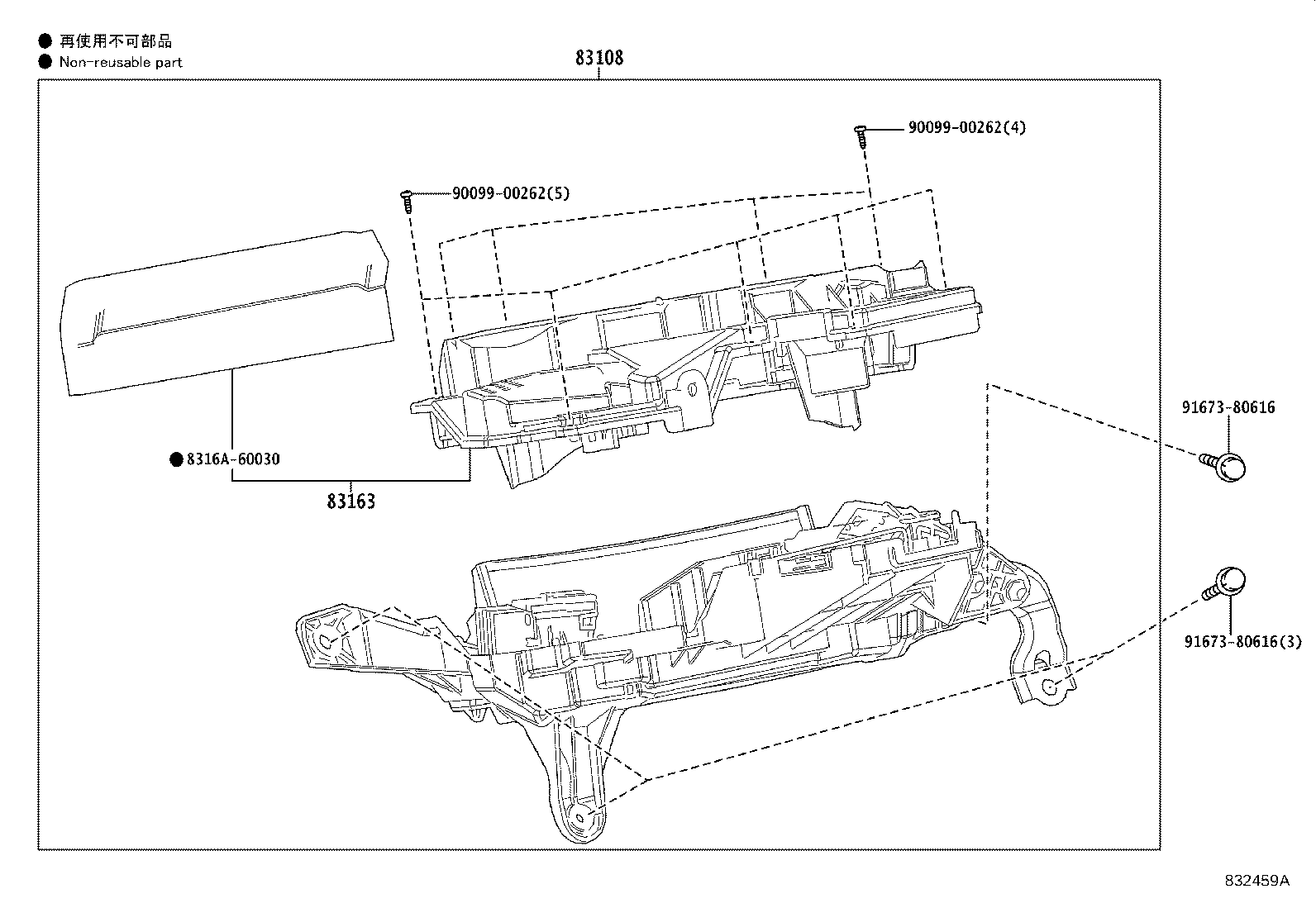

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83108 — Mirror Sub-assy, Meter | ||||
| 83108-60050 |
Mirror Sub-assy, Meter
2021-12 → 2023-09
ended
|
VJA310 | ¥63,800 | |
| 83108-60051 |
Mirror Sub-assy, Meter
2023-10 → 2024-04
ended
|
VJA310 | ¥63,700 | |
| 83108-60052 |
Mirror Sub-assy, Meter
2024-05 → 2024-11
ended
|
VJA310 | ¥63,700 | |
| 83163 — Plate, Combination Meter Mirror, NO.1 | ||||
| 83163-60030 |
Plate, Combination Meter Mirror, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥3,200 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
