Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

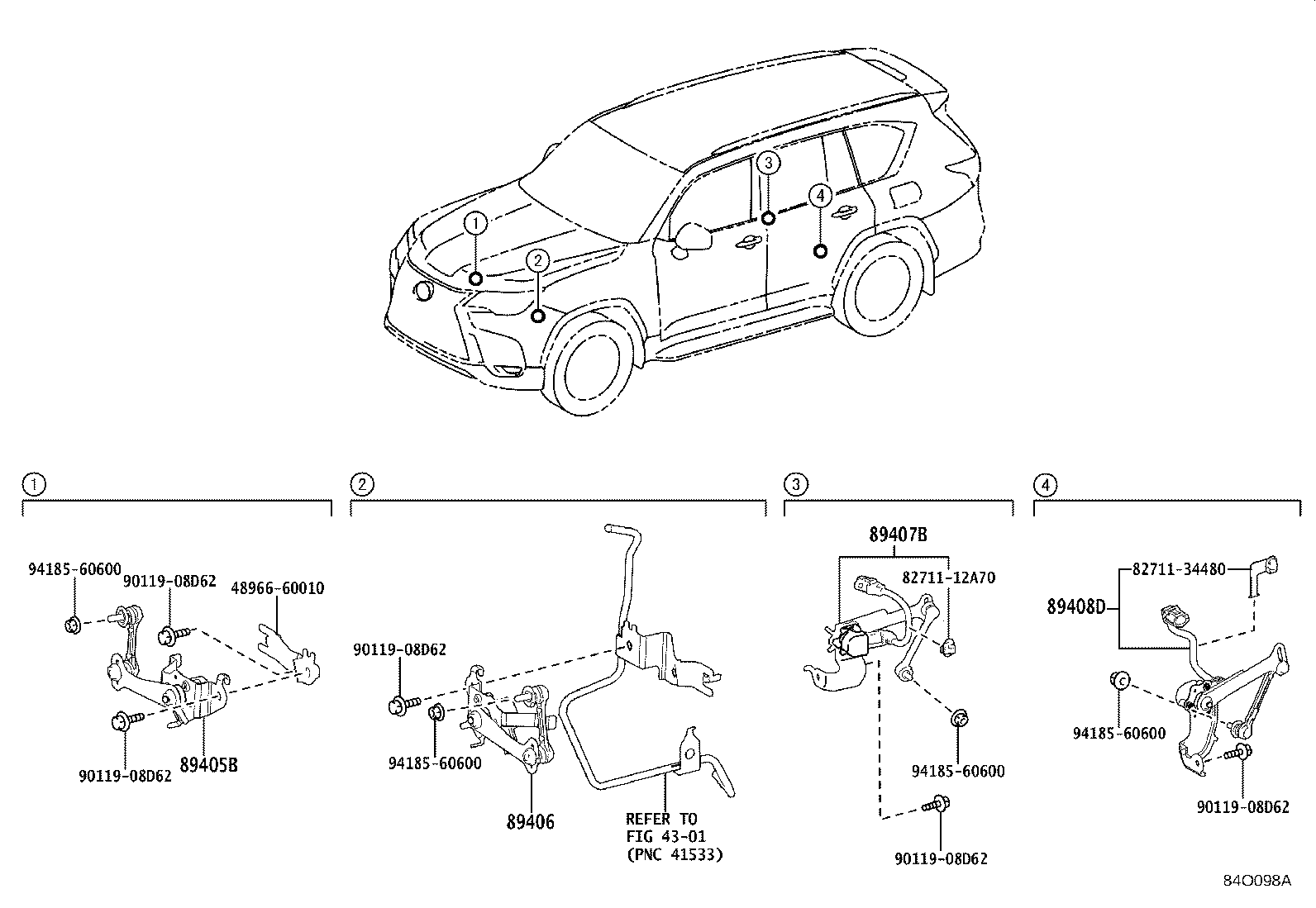

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89405B — Sensor Sub-assy, Height Control, Front RH | ||||
| 89405-60030 |
Sensor Sub-assy, Height Control, Front RH
2021-12 → 2024-11
ended
|
VJA310 | ¥15,800 | |
| 89406 — Sensor Sub-assy, Height Control, Front LH | ||||
| 89406-60040 |
Sensor Sub-assy, Height Control, Front LH
2021-12 → 2024-11
ended
|
VJA310 | ¥15,800 | |
| 89407B — Sensor Sub-assy, Height Control, Rear RH | ||||
| 89407-60050 |
Sensor Sub-assy, Height Control, Rear RH
2021-12 → 2024-11
ended
|
VJA310 | ¥15,800 | |
| 89408D — Sensor Sub-assy, Height Control, Rear LH | ||||
| 89408-60050 |
Sensor Sub-assy, Height Control, Rear LH
2021-12 → 2024-11
ended
|
VJA310 | ¥15,800 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
