Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

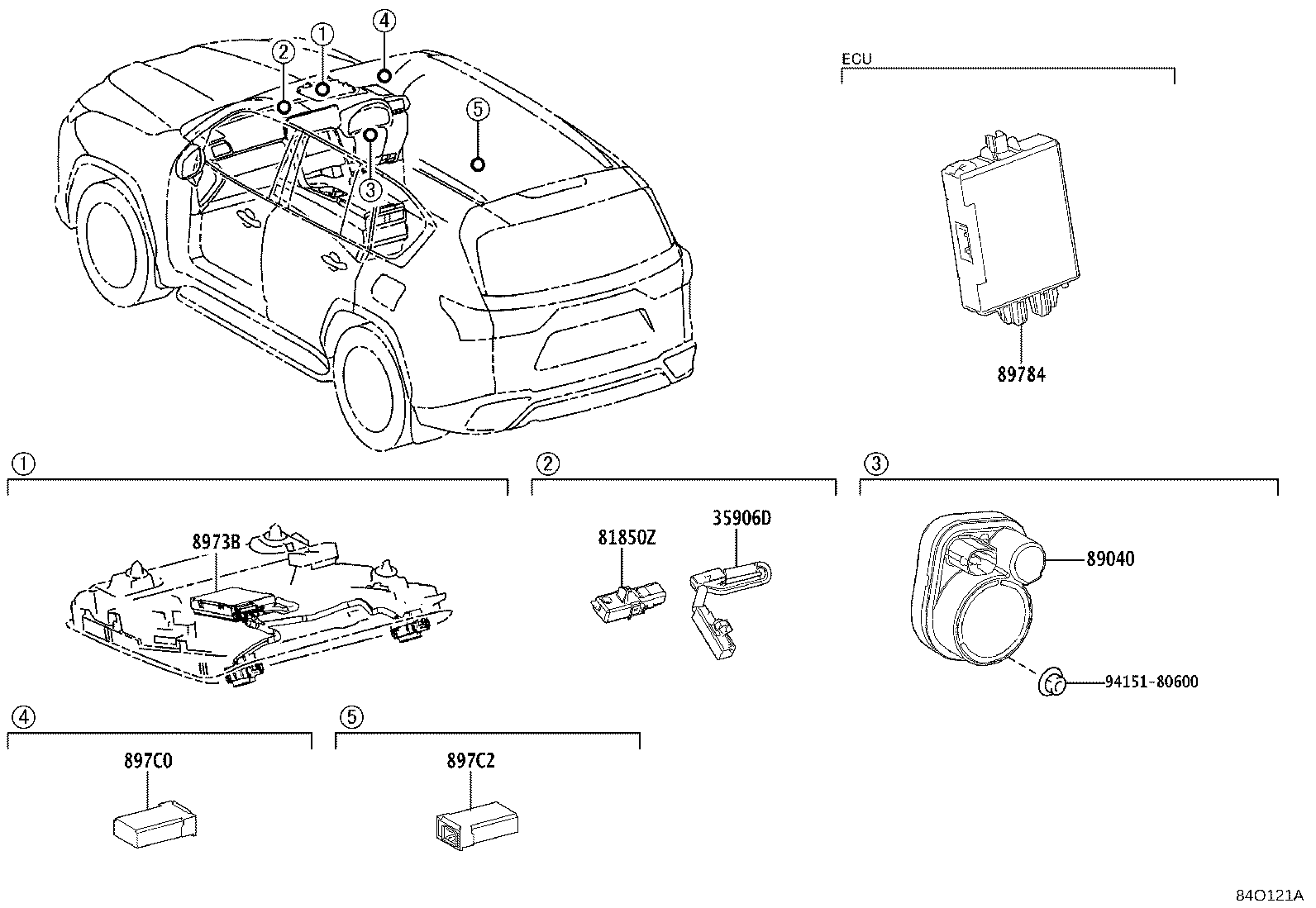

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 35906D — Wire Sub-assy, Indicator Lamp | ||||
| 35906-60230 |
Wire Sub-assy, Indicator Lamp
2021-12 → 2024-11
ended
|
VJA310 | ¥500 | |
| 81850Z — Lamp Assy, Theft Warning Indicator | ||||
| 81850-78020 |
Lamp Assy, Theft Warning Indicator
2021-12 → 2024-11
ended
|
VJA310 | ¥920 | |
| 89040 — Siren Assy, Theft Warning | ||||
| 89040-60140 |
Siren Assy, Theft Warning
2021-12 → 2024-11
ended
|
VJA310 | ¥19,900 | |
| 8973B — Sensor, Theft Warning Ultrasonic & Tilt | ||||
| 8973B-60030 |
Sensor, Theft Warning Ultrasonic & Tilt
2021-12 → 2024-11
ended
|
VJA310 | ¥20,700 | |
| 89784 — Computer, Immobilizer Code | ||||
| 89784-K0021 |
Computer, Immobilizer Code
2021-12 → 2024-11
ended
|
VJA310 | ¥4,190 | |
| 897C0 — Transceiver Assy, Electrical Key Ranging | ||||
| 897C0-48020 note |
Transceiver Assy, Electrical Key Ranging
2022-11 → 2023-01
ended
|
VJA310 | ¥6,700 | |
| 897C2 — Transceiver, Electrical Key Ranging | ||||
| 897C2-48020 note |
Transceiver, Electrical Key Ranging
2022-11 → 2023-01
ended
|
VJA310 | ¥5,900 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
