Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

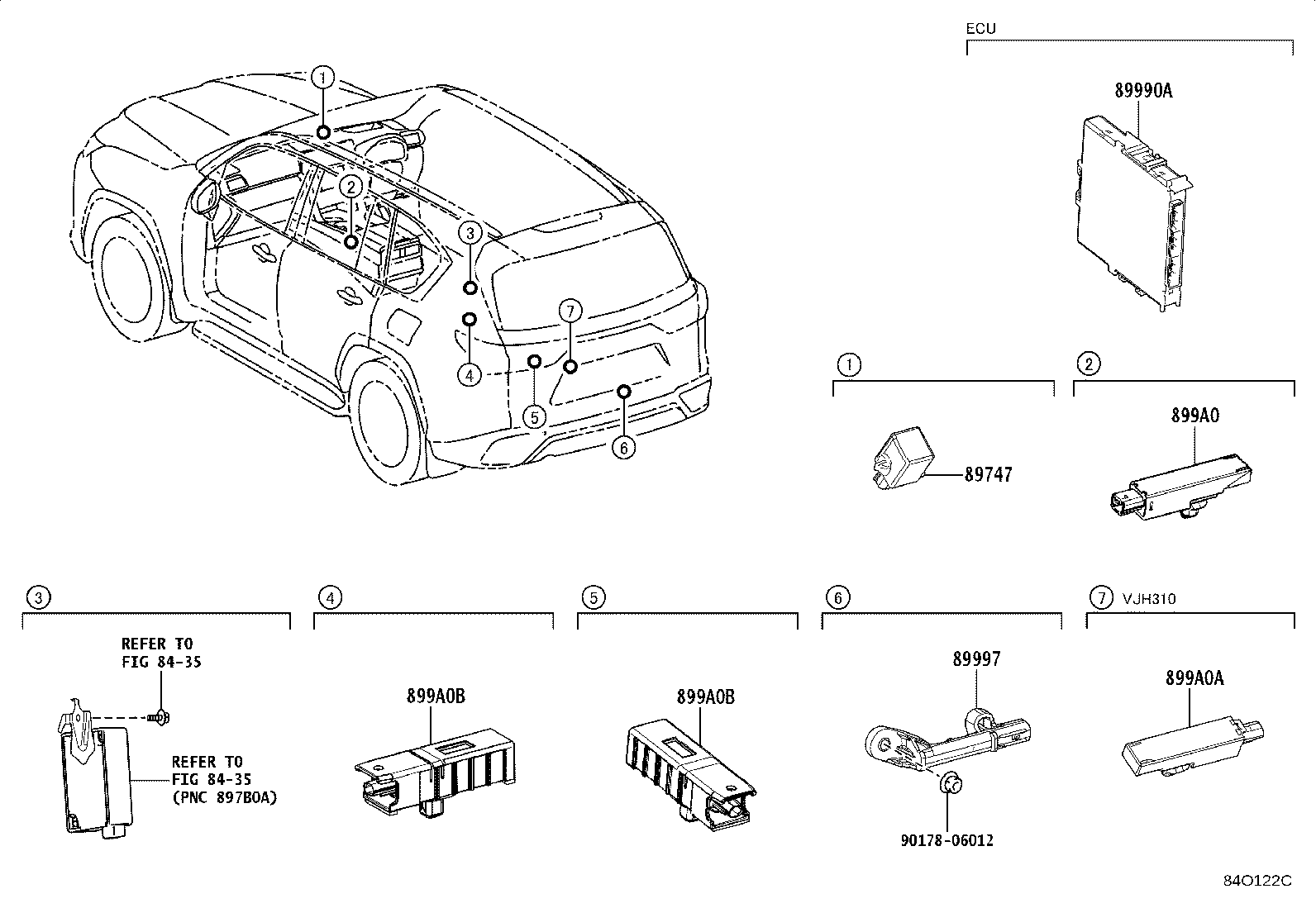

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89747 — Buzzer, Wireless Door Lock | ||||
| 89747-30040 |
Buzzer, Wireless Door Lock
2021-12 → 2024-11
ended
|
VJA310 | ¥2,900 | |
| 89990A — Computer Assy, Smart Key | ||||
| 899H0-60060 |
Computer Assy, Smart Key
2021-12 → 2022-11
ended
|
VJA310 | ¥49,400 | |
| 899H0-60110 |
Computer Assy, Smart Key
2022-11 → 2023-05
ended
|
VJA310 | ¥49,400 | |
| 899H0-60111 |
Computer Assy, Smart Key
2023-06 → 2023-09
ended
|
VJA310 | ¥49,400 | |
| 899H0-60170 |
Computer Assy, Smart Key
2023-10 → 2024-11
ended
|
VJA310 | ¥49,400 | |
| 89997 — Antenna, Electrical Key | ||||
| 89997-30100 |
Antenna, Electrical Key
2021-12 → 2024-11
ended
|
VJA310 | ¥1,800 | |
| 899A0 — Antenna Assy, Indoor Electrical Key, NO.1 | ||||
| 899A0-12130 |
Antenna Assy, Indoor Electrical Key, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥1,410 | |
| 899A0B — Antenna Assy, Indoor Electrical Key, NO.3 | ||||
| 899A0-60070 |
Antenna Assy, Indoor Electrical Key, NO.3
2021-12 → 2024-11
ended
|
VJA310 | ¥1,410 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
