Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

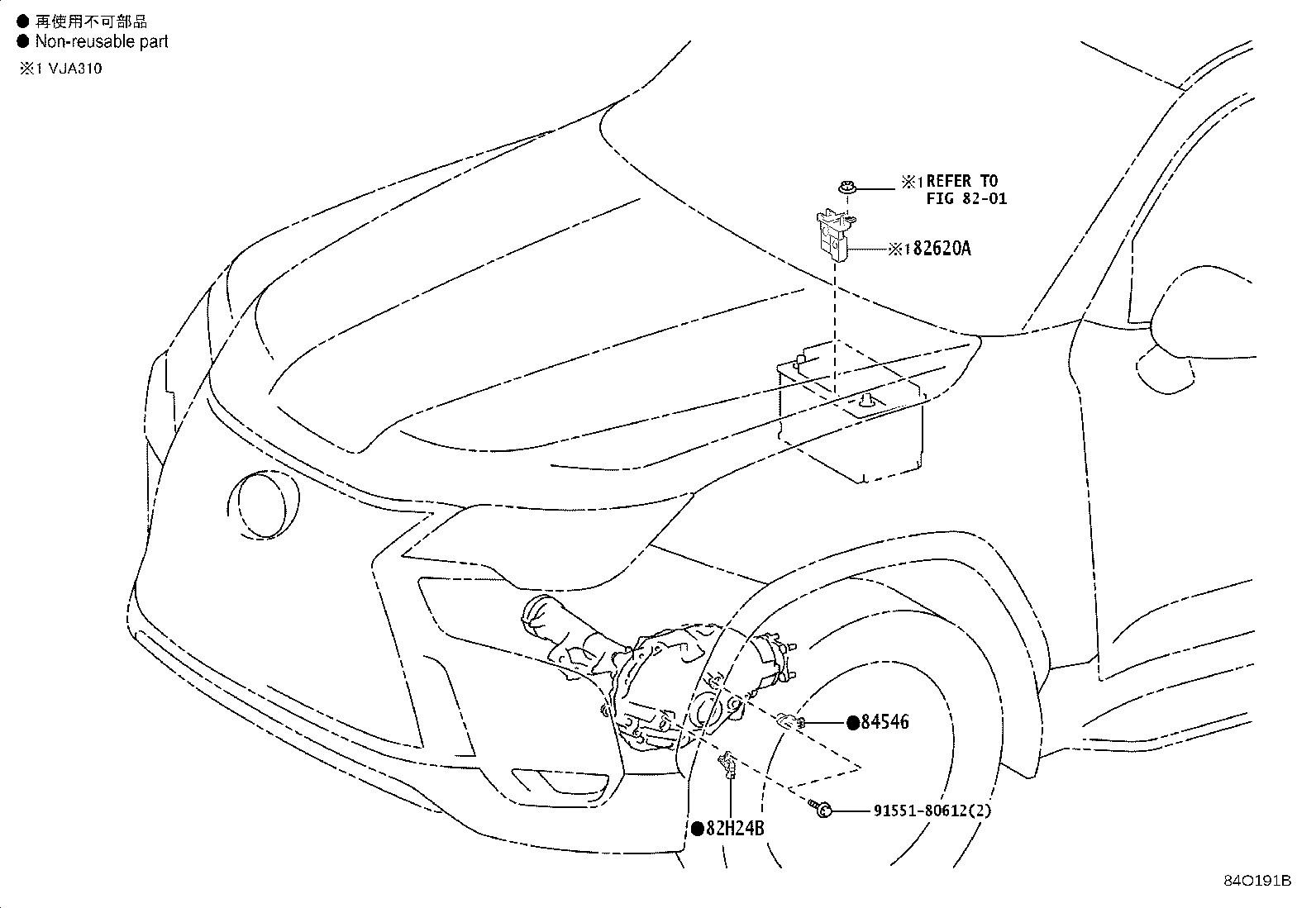

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82620A — Block Assy, Fusible Link | ||||
| 82620-60310 |
Block Assy, Fusible Link
2021-12 → 2024-11
ended
|
VJA310 | ¥2,330 | |
| 82H24B — Connector, Wiring Harness | ||||
| 82824-60C40 note |
Connector, Wiring Harness
2021-12 → 2024-11
ended
|
VJA310 | ¥550 | |
| 84546 — Switch, 4 Wheel Drive Position, NO.1 | ||||
| 84546-60010 note |
Switch, 4 Wheel Drive Position, NO.1
2021-12 → 2024-11
ended
|
VJA310 | ¥4,840 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
