Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

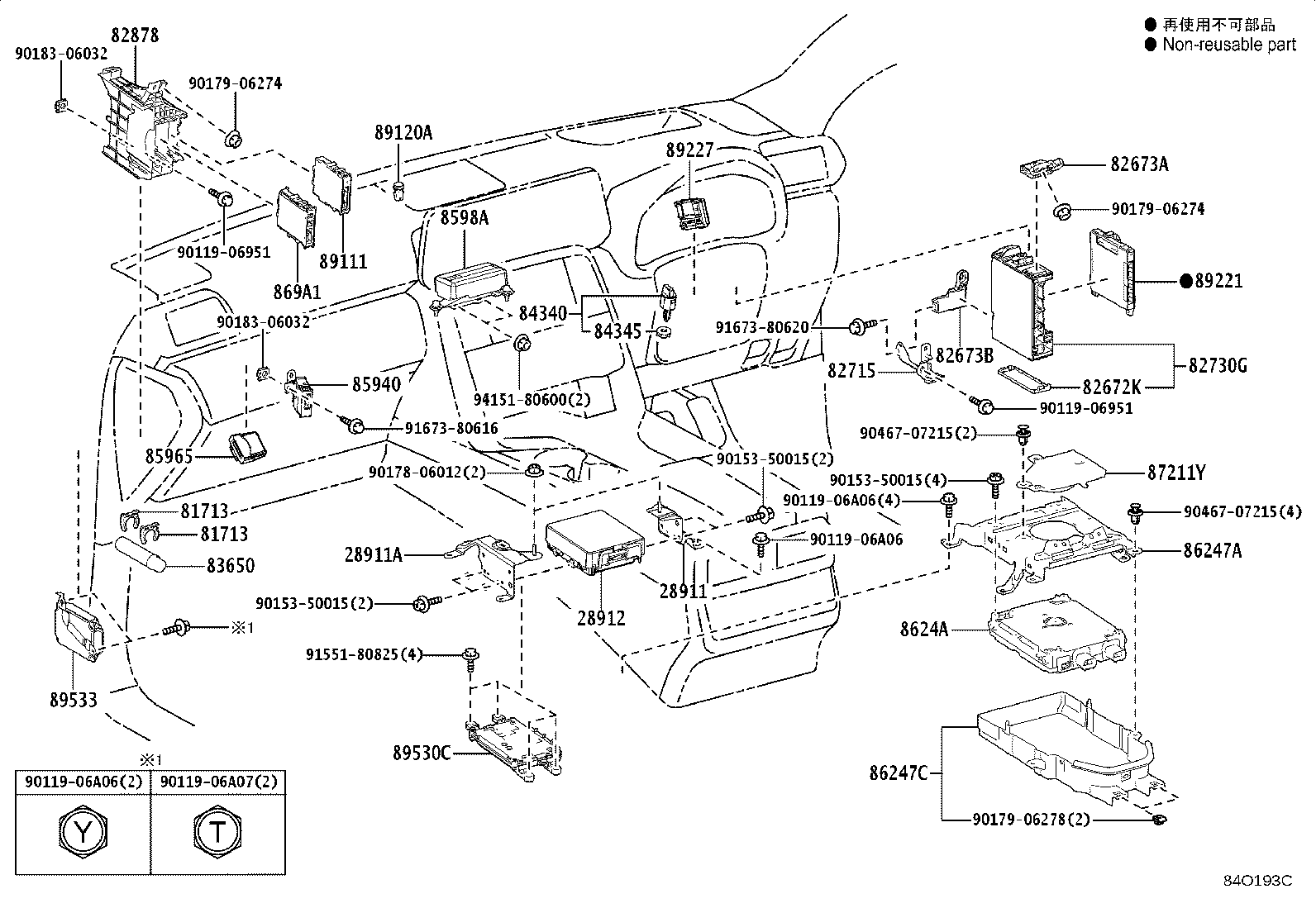

Exploded illustration 84O193C 28911 — not listed in this catalogue 85965 — RELAY, ROOM LAMP CONTROL (1 parts) 82878 — BOX, COMPUTER INTEGRATION, LH (1 parts) 81713 — HOLDER, FUSEE (1 parts) 81713 — HOLDER, FUSEE (1 parts) 83650 — FUSEE (1 parts) 9017906274 — not listed in this catalogue 9011906951 — not listed in this catalogue 9011906951 — not listed in this catalogue 9167380620 — not listed in this catalogue 89221 — COMPUTER, MULTIPLEX NETWORK BODY (5 parts) 82730G — BOX ASSY, POWER DISTRIBUTION (2 parts) 82672K — COVER, POWER DISTRIBUTION BOX (1 parts) 82673A — BRACKET, JUNCTION BLOCK, NO.1 (1 parts) 82673B — BRACKET, JUNCTION BLOCK, NO.2 (1 parts) 82715 — BRACKET,WIRING HARNESS CLAMP (1 parts) 9017906274 — not listed in this catalogue 9018306032 — not listed in this catalogue 9018306032 — not listed in this catalogue 89111 — COMPUTER, NETWORK GATEWAY (3 parts) 869A1 — COMPUTER, INTELLIGENT TRANSPORT SYSTEMS COMMUNICATION (2 parts) 85940 — RELAY ASSY, WINDSHIELD WIPER (1 parts) 84340 — SWITCH ASSY, STOP LAMP (1 parts) 89533 — COMPUTER, 4 WHEEL DRIVE CONTROL (4 parts) 9415180600 — not listed in this catalogue 9015350015 — not listed in this catalogue 8598A — BATTERY, DOOR CONTROL (1 parts) 89120A — SENSOR, AUTOMATIC LIGHT CONTROL (1 parts) 89530C — COMPUTER ASSY, TRANSMISSION CONTROL (1 parts) 9155180825 — not listed in this catalogue 9167380616 — not listed in this catalogue 89227 — COMPUTER, MULTIPLEX TILT & TELESCOPIC (1 parts) 84345 — ADJUSTER, STOP LAMP SWITCH MOUNTING (1 parts) 9011906A06 — not listed in this catalogue 9015350015 — not listed in this catalogue 28911A — not listed in this catalogue 28912 — not listed in this catalogue 9017806012 — not listed in this catalogue 9046707215 — not listed in this catalogue 9017906278 — not listed in this catalogue 86247C — not listed in this catalogue 87211Y — not listed in this catalogue 86247A — not listed in this catalogue 8624A — not listed in this catalogue 9015350015 — not listed in this catalogue 9011906A06 — not listed in this catalogue 9046707215 — not listed in this catalogue 9011906A07 — not listed in this catalogue 9011906A06 — not listed in this catalogue
84O193C · 21 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
81713 — Holder, Fusee
62199-48010 Holder, Fusee
2021-12 → 2024-11 ended
VJA310 ¥130
82672K — Cover, Power Distribution Box
82672-60130 Cover, Power Distribution Box
2021-12 → 2024-11 ended
VJA310 ¥290
82673A — Bracket, Junction Block, NO.1
82673-60180 Bracket, Junction Block, NO.1
2021-12 → 2024-11 ended
VJA310 ¥650
82673B — Bracket, Junction Block, NO.2
82673-60200 Bracket, Junction Block, NO.2
2021-12 → 2024-11 ended
VJA310 ¥650
82715 — Bracket,Wiring Harness Clamp
82715-6AJ60 Bracket,Wiring Harness Clamp
2021-12 → 2024-11 ended
VJA310 ¥610
82730G — Box Assy, Power Distribution
82730-60230 Box Assy, Power Distribution
2021-12 → 2023-10 ended
VJA310 ¥14,500
82730-60231 Box Assy, Power Distribution
2023-10 → 2024-11 ended
VJA310 ¥14,500
82878 — Box, Computer Integration, LH
82878-60030 Box, Computer Integration, LH
2021-12 → 2024-11 ended
VJA310 ¥3,090
83650 — Fusee
90986-01005 Fusee
2021-12 → 2024-11 ended
VJA310 —
84340 — Switch Assy, Stop Lamp
84340-19075 Switch Assy, Stop Lamp
2021-12 → 2024-11 ended
VJA310 ¥2,980
84345 — Adjuster, Stop Lamp Switch Mounting
84345-51010 Adjuster, Stop Lamp Switch Mounting
2021-12 → 2024-11 ended
VJA310 ¥220
85940 — Relay Assy, Windshield Wiper
85940-60160 Relay Assy, Windshield Wiper
2021-12 → 2024-11 ended
VJA310 ¥10,400
85965 — Relay, Room Lamp Control
85965-60020 Relay, Room Lamp Control
2021-12 → 2024-11 ended
VJA310 ¥13,900
8598A — Battery, Door Control
8598A-60060 Battery, Door Control
2021-12 → 2024-11 ended
VJA310 ¥14,800
869A1 — Computer, Intelligent Transport Systems Communication
869A1-60010 Computer, Intelligent Transport Systems Communication
2021-12 → 2023-10 ended
VJA310 ¥68,200
869A1-60040 Computer, Intelligent Transport Systems Communication
2023-10 → 2024-11 ended
VJA310 ¥68,100
89111 — Computer, Network Gateway
89111-60160 note Computer, Network Gateway
2021-12 → 2022-11 ended
VJA310 ¥6,200
89111-60190 note Computer, Network Gateway
2022-11 → 2023-09 ended
VJA310 ¥6,200
89111-60220 note Computer, Network Gateway
2023-10 → 2024-11 ended
VJA310 ¥6,100
89120A — Sensor, Automatic Light Control
89121-30020 Sensor, Automatic Light Control
2021-12 → 2024-11 ended
VJA310 ¥4,010
89221 — Computer, Multiplex Network Body
89220-6GV40 Computer, Multiplex Network Body
2023-10 → 2024-11 ended
VJA310 ¥34,500
89220-6GV50 note Computer, Multiplex Network Body
2023-10 → 2024-11 ended
VJA310 ¥34,500
89220-6GV60 note Computer, Multiplex Network Body
2023-10 → 2024-11 ended
VJA310 ¥34,500
89221-60700 note Computer, Multiplex Network Body
2021-12 → 2022-07 ended
VJA310 ¥34,400
89221-60701 note Computer, Multiplex Network Body
2022-07 → 2023-10 ended
VJA310 ¥34,400
89227 — Computer, Multiplex Tilt & Telescopic
89227-48070 Computer, Multiplex Tilt & Telescopic
2021-12 → 2024-11 ended
VJA310 ¥17,500
89530C — Computer Assy, Transmission Control
89530-60680 note Computer Assy, Transmission Control
2021-12 → 2024-11 ended
VJA310 ¥41,800
89533 — Computer, 4 Wheel Drive Control
89533-60430 note Computer, 4 Wheel Drive Control
2021-12 → 2023-10 ended
VJA310 ¥22,900
89533-60450 note Computer, 4 Wheel Drive Control
2021-12 → 2023-10 ended
VJA310 ¥22,900
89533-60520 note Computer, 4 Wheel Drive Control
2023-10 → 2024-11 ended
VJA310 ¥22,900
89533-60540 note Computer, 4 Wheel Drive Control
2023-10 → 2024-11 ended
VJA310 ¥22,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
