Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

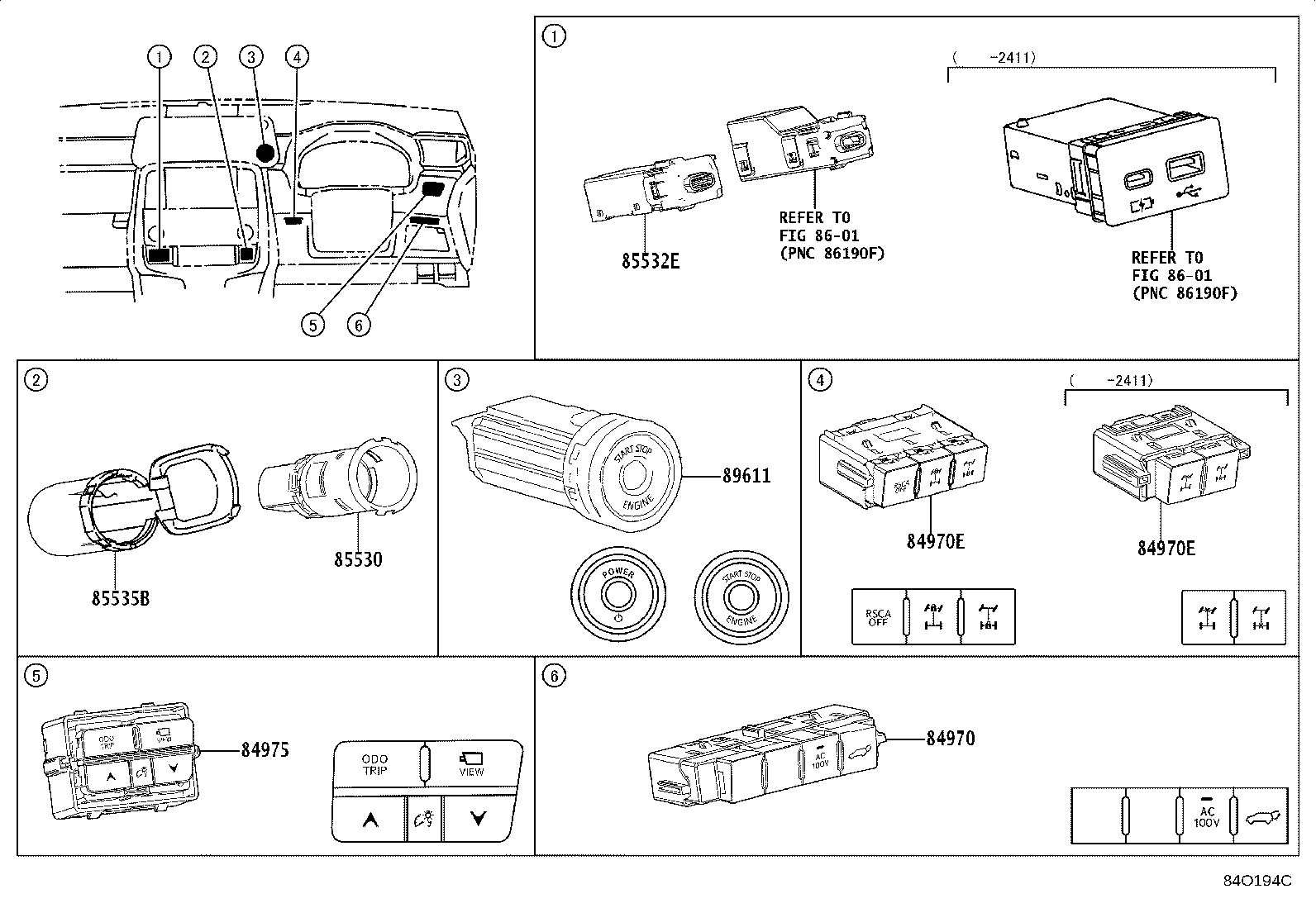

Exploded illustration 84O194C 85532E — not listed in this catalogue 89611 — SWITCH, PUSH START (1 parts) 84970E — SWITCH ASSY, COMBINATION NO.2 (1 parts) 84970 — SWITCH ASSY, COMBINATION (1 parts) 85535B — COVER, POWER OUTLET SOCKET, NO.1 (1 parts) 85530 — SOCKET ASSY, POWER OUTLET, NO.1 (1 parts) 8601 — not listed in this catalogue 8601 — not listed in this catalogue 84975 — SWITCH, TRIP (1 parts) 84970E — SWITCH ASSY, COMBINATION NO.2 (1 parts)
84O194C · 7 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
6 parts on this figure
Part number Description Fitment Price
84970 — Switch Assy, Combination
84970-60730 Switch Assy, Combination
2021-12 → 2024-11 ended
VJA310 ¥3,550
84970E — Switch Assy, Combination NO.2
84970-60810 note Switch Assy, Combination NO.2
2021-12 → 2024-11 ended
VJA310 ¥5,200
84975 — Switch, Trip
84975-60110 Switch, Trip
2021-12 → 2024-11 ended
VJA310 ¥4,810
85530 — Socket Assy, Power Outlet, NO.1
85530-52010 Socket Assy, Power Outlet, NO.1
2021-12 → 2024-11 ended
VJA310 ¥1,750
85535B — Cover, Power Outlet Socket, NO.1
85535-78010 Cover, Power Outlet Socket, NO.1
2021-12 → 2024-11 ended
VJA310 ¥390
89611 — Switch, Push Start
89613-60030 Switch, Push Start
2021-12 → 2024-11 ended
VJA310 ¥42,200
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
