Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

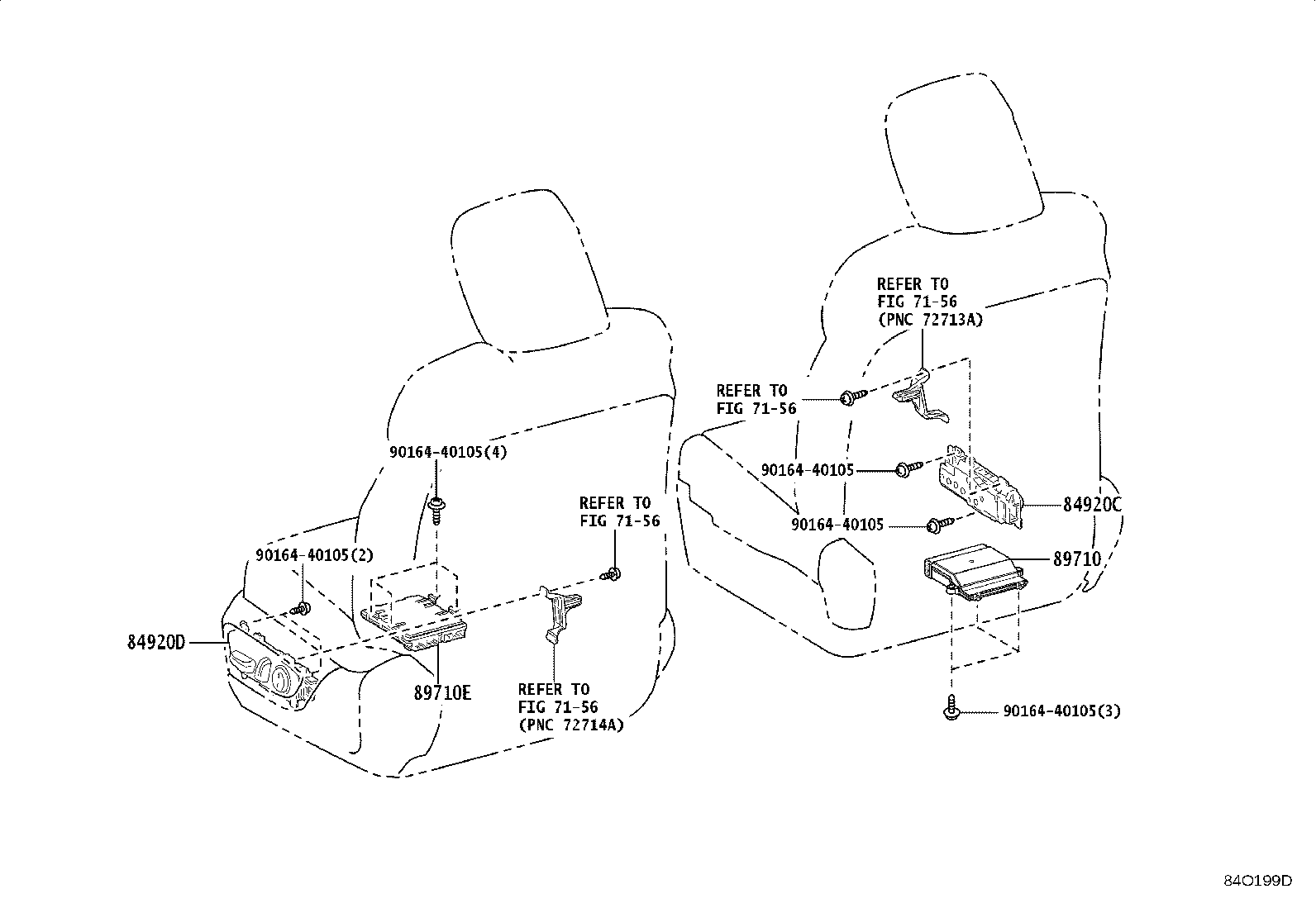

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84920C — Switch Assy, Power Seat Front, RH | ||||
| 84920-60270 |
Switch Assy, Power Seat Front, RH
2021-12 → 2024-11
ended
|
VJA310 | ¥8,000 | |
| 84920D — Switch Assy, Power Seat Front, LH | ||||
| 84920-60170 note |
Switch Assy, Power Seat Front, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥6,400 | |
| 84920-60300 |
Switch Assy, Power Seat Front, LH
2021-12 → 2024-11
ended
|
VJA310 | ¥7,500 | |
| 89710 — Computer Assy, Position Control | ||||
| 89710-60120 note |
Computer Assy, Position Control
2021-12 → 2023-10
ended
|
VJA310 | ¥37,400 | |
| 89710-60121 note |
Computer Assy, Position Control
2023-10 → 2024-11
ended
|
VJA310 | ¥37,400 | |
| 89710-60130 |
Computer Assy, Position Control
2021-12 → 2023-10
ended
|
VJA310 | ¥37,400 | |
| 89710-60131 |
Computer Assy, Position Control
2023-10 → 2024-11
ended
|
VJA310 | ¥37,400 | |
| 89710E — Computer Assy, Position Control, NO.2 | ||||
| 89710-60160 |
Computer Assy, Position Control, NO.2
2021-12 → 2023-10
ended
|
VJA310 | ¥37,400 | |
| 89710-60160 note |
Computer Assy, Position Control, NO.2
2021-12 → 2023-10
ended
|
VJA310 | ¥37,400 | |
| 89710-60161 |
Computer Assy, Position Control, NO.2
2023-10 → 2024-11
ended
|
VJA310 | ¥37,400 | |
| 89710-60161 note |
Computer Assy, Position Control, NO.2
2023-10 → 2024-11
ended
|
VJA310 | ¥37,400 | |
| 89710-60240 note |
Computer Assy, Position Control, NO.2
2021-12 → 2023-10
ended
|
VJA310 | ¥63,400 | |
| 89710-60241 note |
Computer Assy, Position Control, NO.2
2023-10 → 2024-11
ended
|
VJA310 | ¥63,400 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
