Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

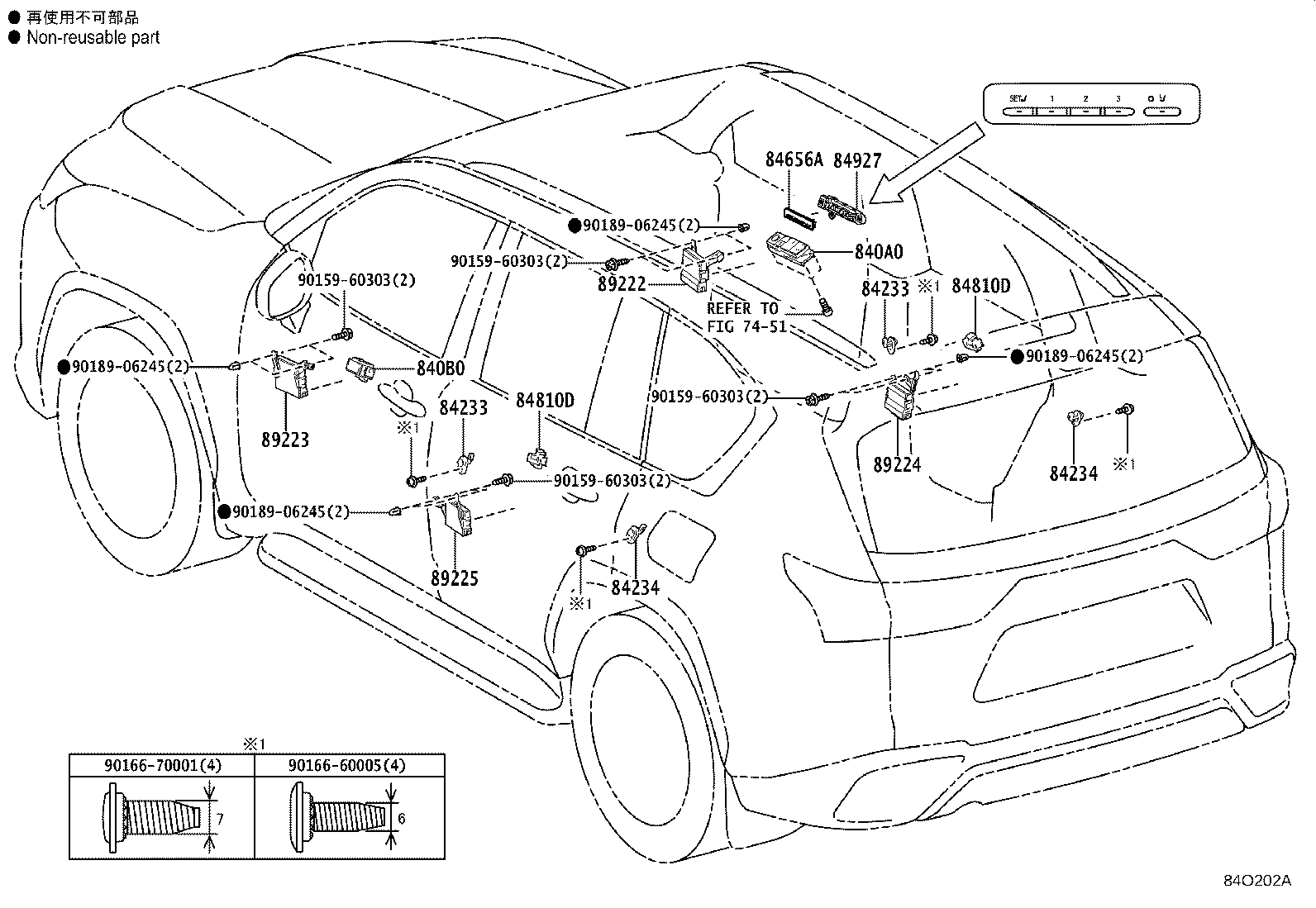

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 840A0 — Switch Assy, Power Window Master, W/Bezel | ||||
| 840A0-60070 |
Switch Assy, Power Window Master, W/Bezel
2021-12 → 2024-11
ended
|
VJA310 | ¥15,500 | |
| 840B0 — Switch Assy, Power Window W/Bezel | ||||
| 840B0-60120 |
Switch Assy, Power Window W/Bezel
2021-12 → 2024-11
ended
|
VJA310 | ¥3,330 | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-53010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥660 | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-53010 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2021-12 → 2024-11
ended
|
VJA310 | ¥660 | |
| 84656A — Bezel, Switch | ||||
| 84656-60100 |
Bezel, Switch
2021-12 → 2024-11
ended
|
VJA310 | ¥710 | |
| 84656-60160 note |
Bezel, Switch
2021-12 → 2024-11
ended
|
VJA310 | ¥710 | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-50060 |
Switch Assy, Power Window Regulator, Rear
2021-12 → 2024-11
ended
|
VJA310 | ¥2,790 | |
| 84927 — Switch, Seat Memory | ||||
| 84927-60130 |
Switch, Seat Memory
2021-12 → 2024-11
ended
|
VJA310 | ¥6,300 | |
| 84927-60190 note |
Switch, Seat Memory
2021-12 → 2024-11
ended
|
VJA310 | ¥7,500 | |
| 89222 — Computer, Multiplex Network Door, Front RH | ||||
| 89222-60110 |
Computer, Multiplex Network Door, Front RH
2021-12 → 2023-10
ended
|
VJA310 | ¥29,300 | |
| 89222-60111 |
Computer, Multiplex Network Door, Front RH
2023-10 → 2024-11
ended
|
VJA310 | ¥26,600 | |
| 89223 — Computer, Multiplex Network Door, Front LH | ||||
| 89223-60010 |
Computer, Multiplex Network Door, Front LH
2021-12 → 2023-10
ended
|
VJA310 | ¥19,800 | |
| 89223-60011 |
Computer, Multiplex Network Door, Front LH
2023-10 → 2024-11
ended
|
VJA310 | ¥18,000 | |
| 89224 — Computer, Multiplex Network Door, Rear RH | ||||
| 89224-60010 |
Computer, Multiplex Network Door, Rear RH
2021-12 → 2023-10
ended
|
VJA310 | ¥17,800 | |
| 89224-60011 |
Computer, Multiplex Network Door, Rear RH
2023-10 → 2024-11
ended
|
VJA310 | ¥16,100 | |
| 89225 — Computer, Multiplex Network Door, Rear LH | ||||
| 89225-60010 |
Computer, Multiplex Network Door, Rear LH
2021-12 → 2023-10
ended
|
VJA310 | ¥17,800 | |
| 89225-60011 |
Computer, Multiplex Network Door, Rear LH
2023-10 → 2024-11
ended
|
VJA310 | ¥16,100 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
