Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

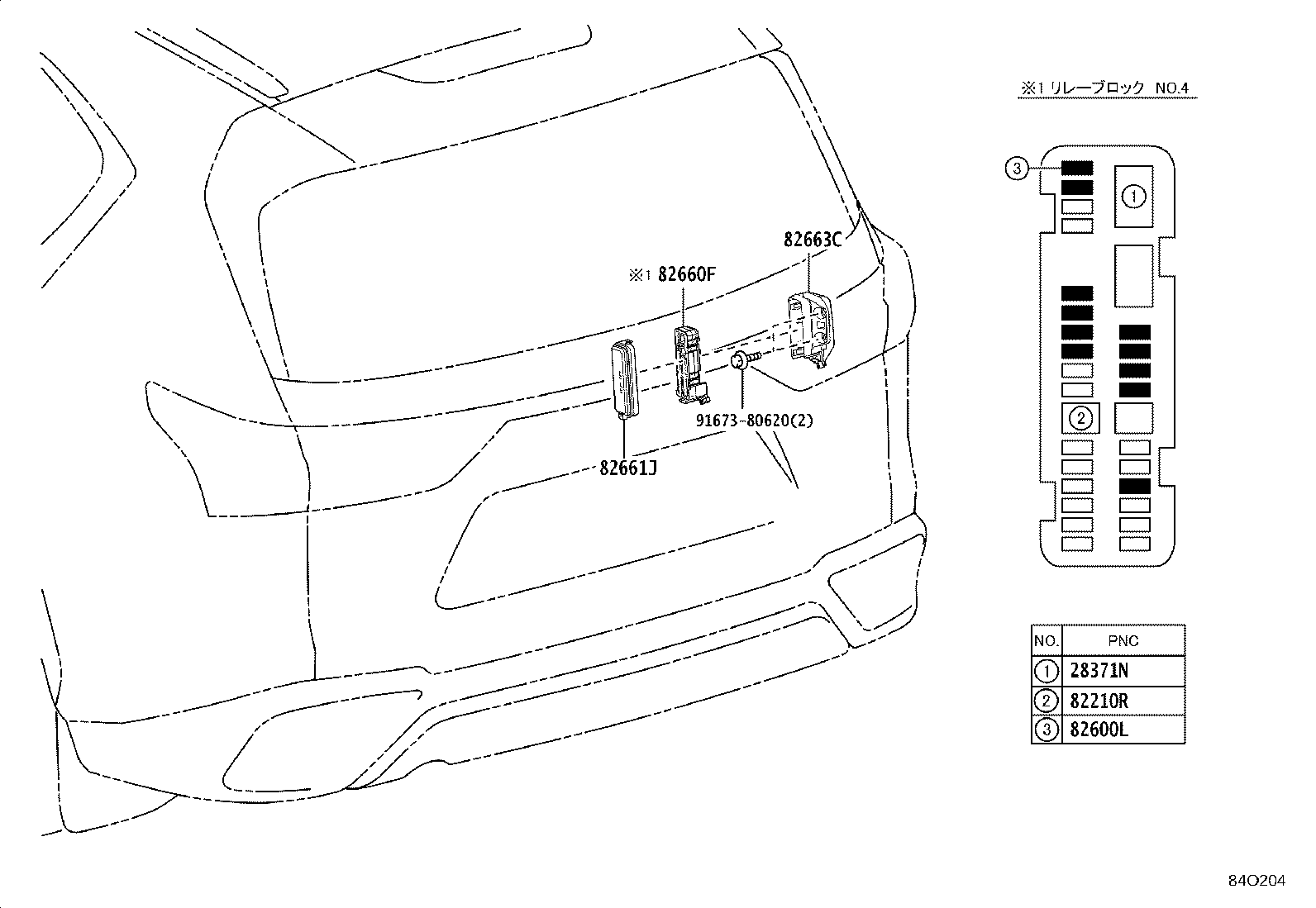

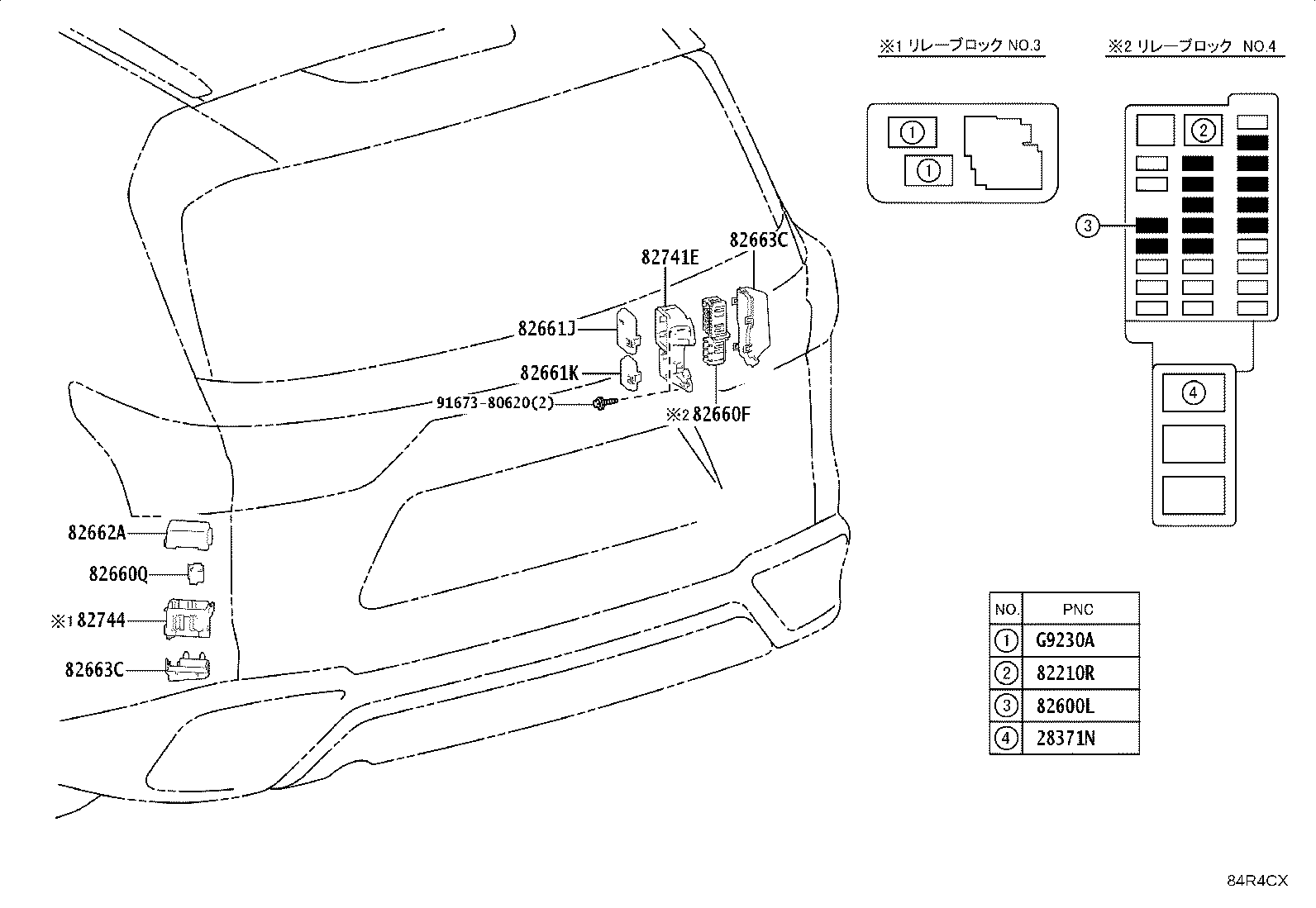

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28371N — Relay, Igp, NO.3 | ||||
| 90987-02027 |
Relay, Igp, NO.3
2021-12 → 2024-11
ended
|
V35AFTS VJA310 | ¥2,930 | |
| 82210R — Luggage Room Fusible Link | ||||
| 90982-08295 |
Luggage Room Fusible Link
2021-12 → 2024-11
ended
|
VJA310 | ¥390 | |
| 82600L — Luggage Room Fuse | ||||
| 90982-09021 note |
Luggage Room Fuse
2021-12 → 2024-11
ended
|
VJA310 | ¥70 | |
| 90982-09022 note |
Luggage Room Fuse
2021-12 → 2024-11
ended
|
VJA310 | ¥70 | |
| 90982-09023 note |
Luggage Room Fuse
2021-12 → 2024-11
ended
|
VJA310 | ¥70 | |
| 90982-09025 note |
Luggage Room Fuse
2021-12 → 2024-11
ended
|
VJA310 | ¥80 | |
| 82660F — Block Assy, Relay | ||||
| 82660-60280 |
Block Assy, Relay
2021-12 → 2024-11
ended
|
VJA310 | ¥3,030 | |
| 82661J — Cover, Relay Block, NO.4 | ||||
| 82661-60690 |
Cover, Relay Block, NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥910 | |
| 82663C — Cover, Relay Block Lower, NO.4 | ||||
| 82663-60350 |
Cover, Relay Block Lower, NO.4
2021-12 → 2024-11
ended
|
VJA310 | ¥2,370 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
