Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

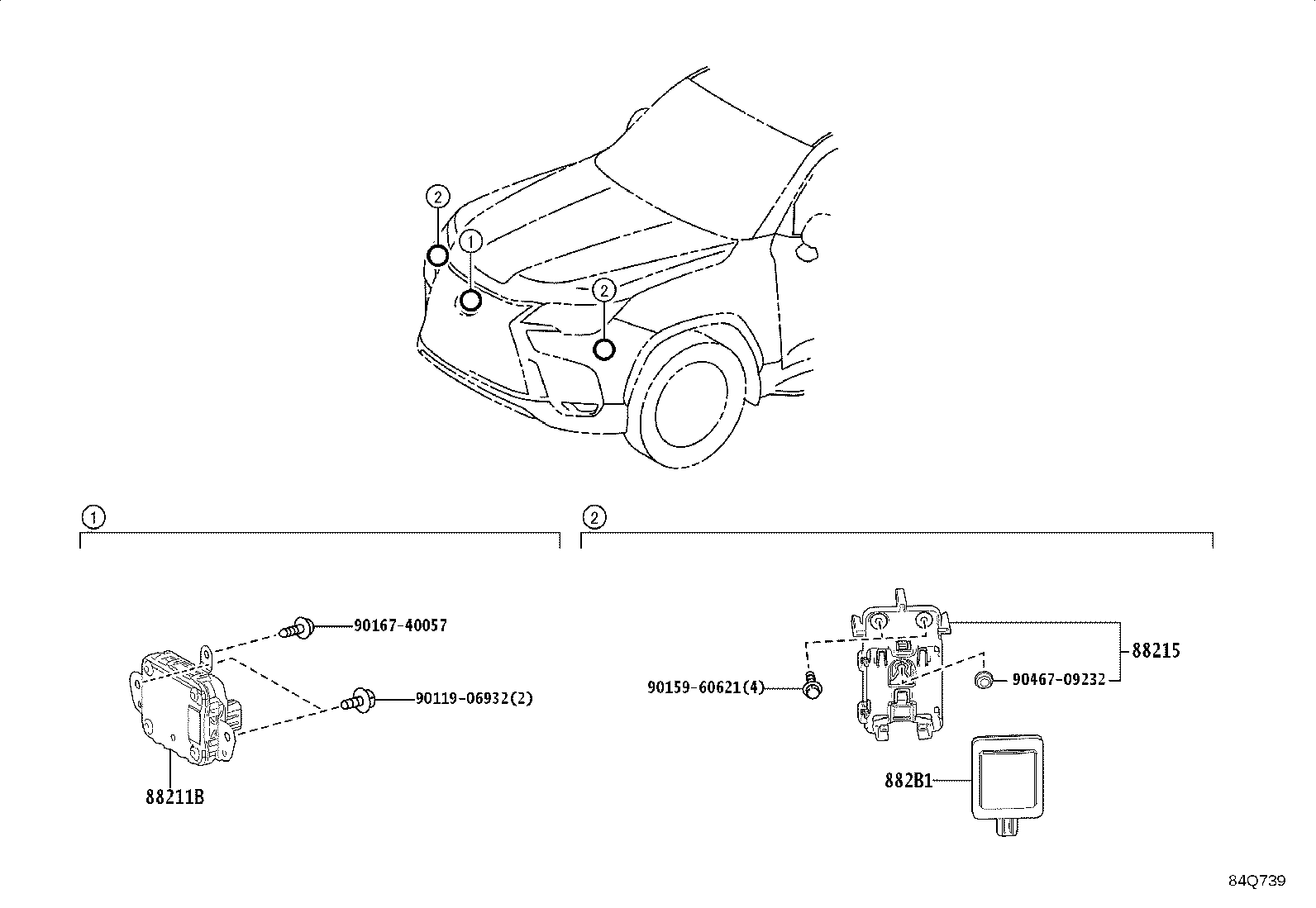

Exploded illustration 84R4AO 882B1 — not listed in this catalogue 9046709232 — not listed in this catalogue 9015960621 — not listed in this catalogue 88215 — not listed in this catalogue 88211B — SENSOR ASSY, MILLIMETER WAVE RADAR (1 parts) 9016740057 — not listed in this catalogue 9011906932 — not listed in this catalogue
84R4AO · 1 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
1 parts on this figure
Part number Description Fitment Price
88211B — Sensor Assy, Millimeter Wave Radar
88210-60160 Sensor Assy, Millimeter Wave Radar
2021-12 → 2024-11 ended
VJA310 ¥26,900
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
