Toyota Lexus LX600

2021-12 → present · chassis VJA310 · catalogue 792170 · Japan

Supported model Data version 2022-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

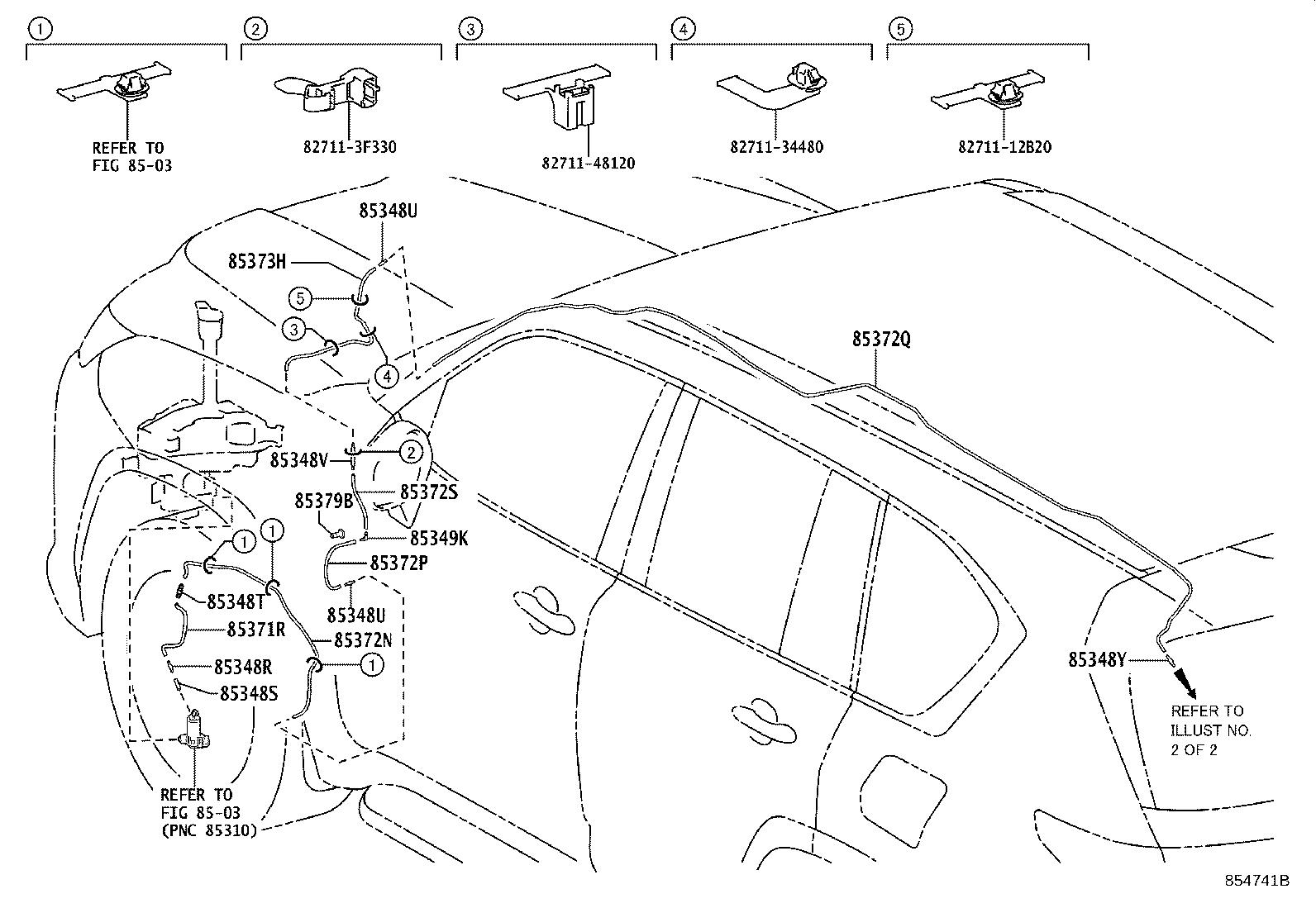

Exploded illustration 854741B 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (1 parts) 85348U — JOINT, REAR WASHER HOSE, NO.3 (1 parts) 85372P — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 (1 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (1 parts) 85372S — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 (1 parts) 85379B — GROMMET, WASHER, A (1 parts) 85348V — JOINT, REAR WASHER HOSE, NO.4 (1 parts) 85348U — JOINT, REAR WASHER HOSE, NO.3 (1 parts) 85373H — HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.10 (1 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (1 parts) 8503 — not listed in this catalogue 85348R — JOINT, REAR WASHER HOSE, NO.1 (1 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (1 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (1 parts) 85348Y — JOINT, REAR WASHER HOSE, NO.5 (1 parts) 8503 — not listed in this catalogue 85372Q — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 (1 parts) 827113F330 — not listed in this catalogue 8271134480 — not listed in this catalogue 8271112B20 — not listed in this catalogue 8271148120 — not listed in this catalogue
854741B · 15 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
85348R — Joint, Rear Washer Hose, NO.1
85349-89122 Joint, Rear Washer Hose, NO.1
2021-12 → 2024-11 ended
VJA310 —
85348S — Joint, Rear Washer Elbow, NO.1
85355-14481 Joint, Rear Washer Elbow, NO.1
2021-12 → 2024-11 ended
VJA310 ¥0
85348T — Joint, Rear Washer Hose, NO.2
85349-89122 Joint, Rear Washer Hose, NO.2
2021-12 → 2024-11 ended
VJA310 —
85348U — Joint, Rear Washer Hose, NO.3
85349-89122 Joint, Rear Washer Hose, NO.3
2021-12 → 2024-11 ended
VJA310 —
85348V — Joint, Rear Washer Hose, NO.4
85349-32150 Joint, Rear Washer Hose, NO.4
2021-12 → 2024-11 ended
VJA310 ¥0
85348Y — Joint, Rear Washer Hose, NO.5
85349-89122 Joint, Rear Washer Hose, NO.5
2021-12 → 2024-11 ended
VJA310 —
85349K — Joint, Rear Washer Elbow, NO.2
85355-20200 Joint, Rear Washer Elbow, NO.2
2021-12 → 2024-11 ended
VJA310 —
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
90099-62085 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2021-12 → 2024-11 ended
VJA310 —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90099-62251 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2021-12 → 2024-11 ended
VJA310 —
85372P — Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
90099-62263 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
2021-12 → 2024-11 ended
VJA310 —
85372Q — Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
90099-62259 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
2021-12 → 2024-11 ended
VJA310 —
85372S — Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
90099-62263 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
2021-12 → 2024-11 ended
VJA310 —
85373H — Hose, Rear Washer(FROM JOINT TO JOINT), NO.10
90099-62263 note Hose, Rear Washer(FROM JOINT TO JOINT), NO.10
2021-12 → 2024-11 ended
VJA310 —
85379B — Grommet, Washer, A
85379-12850 Grommet, Washer, A
2021-12 → 2024-11 ended
VJA310 ¥0
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
