Toyota Lexus LX600
2021-12 → present · chassis VJA310 · catalogue 792170 · Japan
Supported model
Data version 2022-01

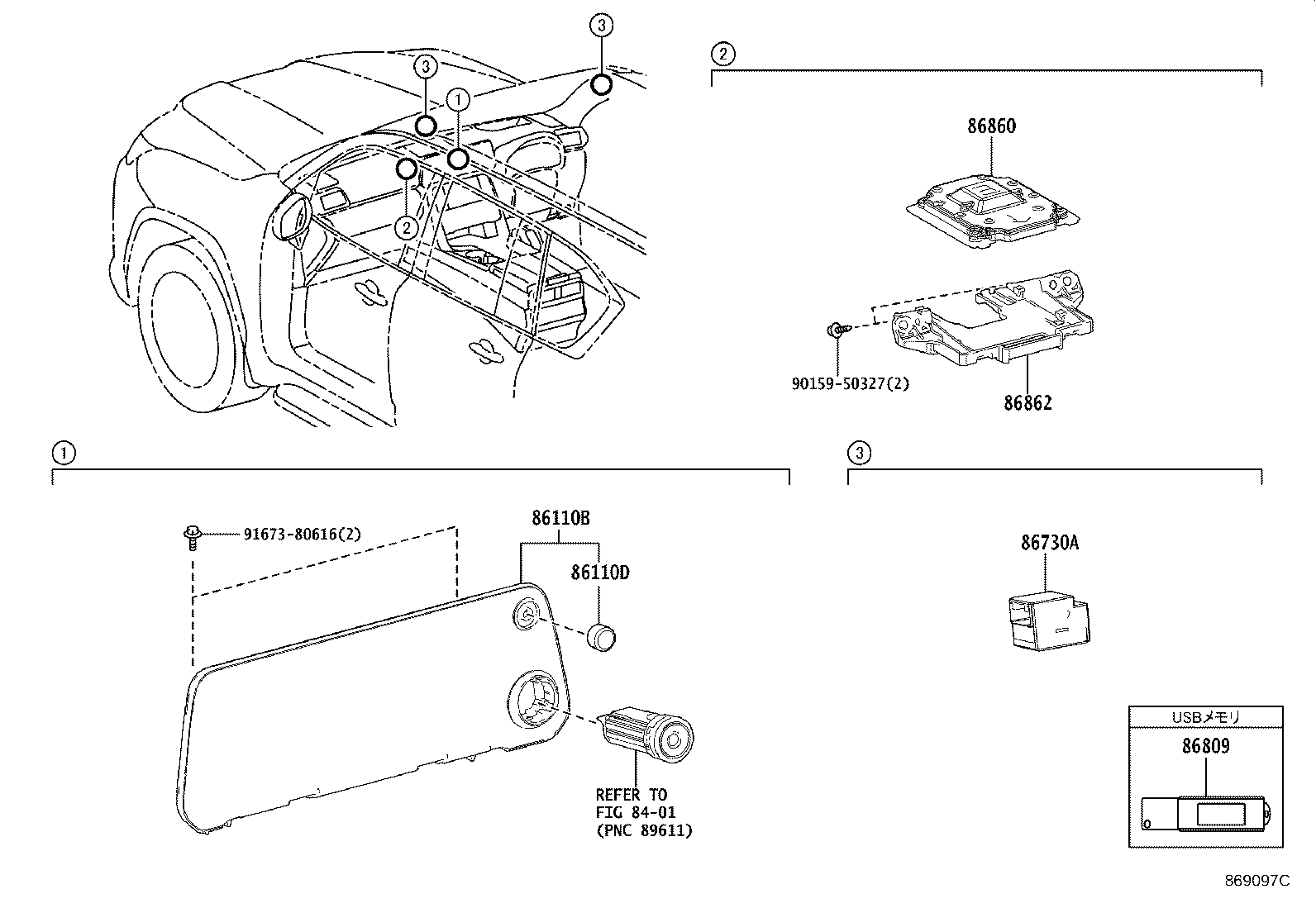

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86110B — Multi-display Assy | ||||
| 86110-60850 note |
Multi-display Assy
2021-12 → 2024-11
ended
|
VJA310 | ¥109,000 | |
| 86110-60A30 note |
Multi-display Assy
2021-12 → 2024-11
ended
|
VJA310 | ¥109,000 | |
| 86110D — Knob, Multi-display Switch | ||||
| 90010-23062 note |
Knob, Multi-display Switch
2021-12 → 2024-11
ended
|
VJA310 | ¥1,260 | |
| 86730A — Microphone Assy, Telephone | ||||
| 86730-78010 |
Microphone Assy, Telephone
2021-12 → 2024-11
ended
|
VJA310 | ¥6,400 | |
| 86809 — Usb Set, Usb Memory Navigation Data | ||||
| 86809-78010 note |
Usb Set, Usb Memory Navigation Data
2021-12 → 2023-03
ended
|
VJA310 | ¥27,600 | |
| 86809-78011 note |
Usb Set, Usb Memory Navigation Data
2023-04 → 2023-10
ended
|
VJA310 | ¥27,600 | |
| 86809-78012 note |
Usb Set, Usb Memory Navigation Data
2023-11 → 2024-03
ended
|
VJA310 | ¥27,600 | |
| 86809-78013 note |
Usb Set, Usb Memory Navigation Data
2024-04 → 2024-10
ended
|
VJA310 | ¥27,600 | |
| 86860 — Antenna Assy, Navigation | ||||
| 86880-78010 |
Antenna Assy, Navigation
2021-12 → 2024-11
ended
|
VJA310 | ¥13,000 | |
| 86862 — Bracket, Navigation Antenna | ||||
| 86862-60070 |
Bracket, Navigation Antenna
2021-12 → 2024-11
ended
|
VJA310 | ¥870 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
